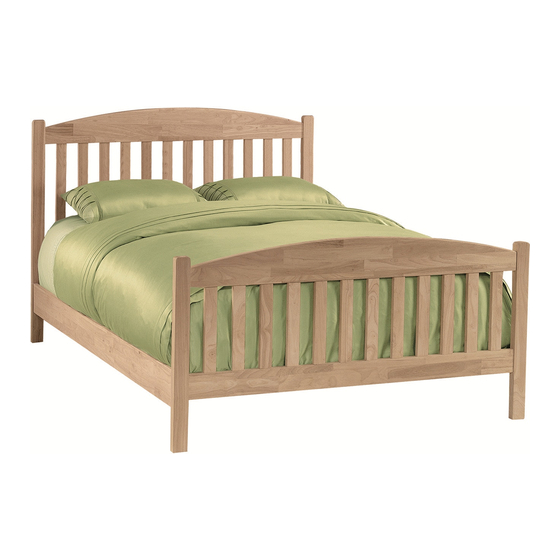

- Page 1 ASSEMBLY INSTRUCTIONS BD-504QR AND BD-504QH AND BD-504QF BD-504QR AND BD-702QH AND BD-702QF BD-504QR AND BD-201QH AND BD-201QF BD-504QR AND BD-703QH AND BD-703QF Description : QUEEN RAILS Item No. : BD-504QR ITEM NO. : BD-504QR Printed in Vietnam REVISED JUN 30, 2016...
- Page 2 Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws and bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO. : BD-504QR Printed in Vietnam REVISED JUN 30, 2016 - 2 -...
- Page 3 When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch BD-201QH BD-201QF (packed in (packed in separate separate carton) carton) ITEM NO. : BD-504QR Printed in Vietnam REVISED JUN 30, 2016 - 3 -...
- Page 4 (in box of siderails and slats): Description Sketch Description Sketch Wood screw Allen key (M4x35mm) (M4 x30mm x 120mm) NOTE: HARDWARE IS PACKED IN CARTON BD-504QR ITEM NO. : BD-504QR Printed in Vietnam REVISED JUN 30, 2016 - 4 -...
- Page 5 Use the Allen key (2) to loosen the bolts and washers, as shown below. STEP 2 Attach side rails (C) to headboard (A) and footboard (B) with bolts and washers (from step 1). Tighten with Allen key (2). ITEM NO. : BD-504QR Printed in Vietnam REVISED JUN 30, 2016 - 5 -...
- Page 6 Attach support legs (E) to slats (D) with screws (1), as shown below. Tighten with a screwdriver. Attach slats (D) to side rails (C) with screws (1), as shown below. Tighten with a screwdriver. ITEM NO. : BD-504QR Printed in Vietnam...
