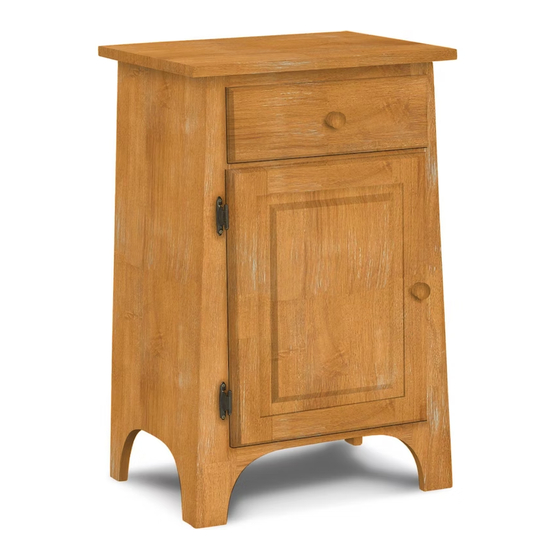

- Page 1 WARNING! Serious or fatal injuries can occur from furniture tip over. Use tip over restraint (steel band included) to secure this product to the wall. Description : ELIZA ACCENT TABLE Item No. : OT-12 ITEM NO.: OT-12 Printed in Vietnam...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. All parts were checked prior to packaging to insure quality. Prior to beginning assembly, however, make sure all parts and hardware are included and free of obvious defect.
- Page 3 PART LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Side panel (L-R) Front frame Bottom shelf Back panel Drawer front Drawer side Drawer back (L-R)
- Page 4 HARDWARE LIST When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have all of the following hardware: Description Sketch Description Sketch Bolt Flat Washer (M6 x 30mm) (6.5 x 13mm) Lock Washer Long Screw (6.5 x 11mm)
- Page 5 STEP 1 Attach side panels (B) to top (A) with bolts (1), and washers (3) and (2) as shown below. Tighten with Allen key (10). STEP 2 Attach front frame (C) to side panels (B) with bolts (1), and washers (3) and (2) as shown below. Tighten with Allen key (10).
- Page 6 STEP 3 Attach bottom shelf (D) to side panels (B) with bolts (1), and washers (3) and (2) as shown below. Tighten with Allen key (10). STEP 4 Slide back panel (E) into the grooves as shown below. Then attach back panel (E) to bottom shelf (D) with screws (5) as shown below.
- Page 7 STEP 5 Attach drawer sides (G) to drawer front (F) with screws (4) as shown below. Tighten with a screwdriver. Insert drawer bottom (I) into the grooves at bottom of drawer sides (G) and drawer front (F) as shown below. Attach drawer back (H) to drawer sides (G) with screws (4) as shown below.
