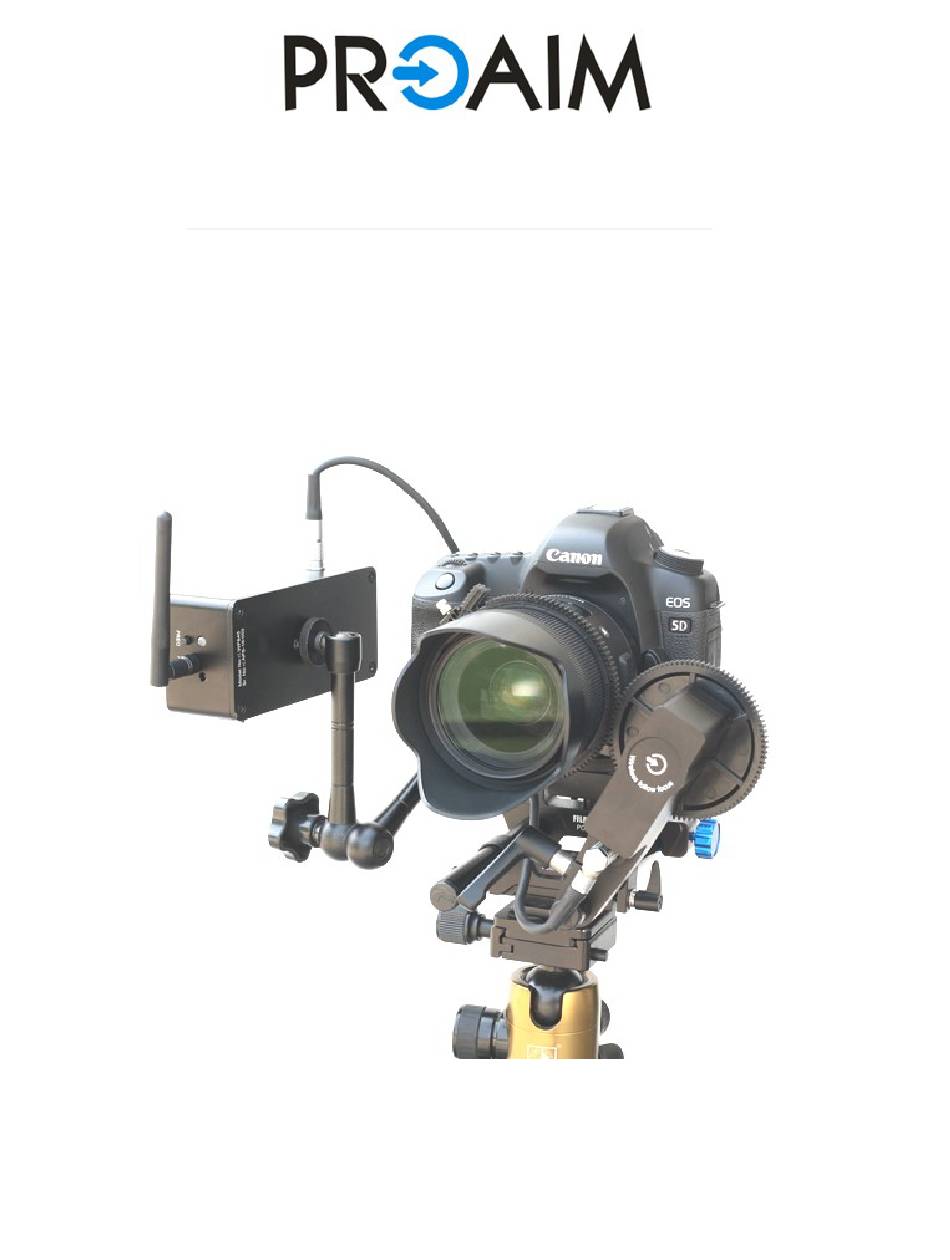

Proaim Drive One Wireless Follow focus (FF-WRLS-DR-ONE)
1
Drive One Wireless Follow Focus
(FF-WRLS-DR-ONE )
I N S T R U C T I O N M A N U A L
All rights reserved
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, elec-
tronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FF-WRLS-DR-ONE and is the answer not in the manual?

Questions and answers

Related Manuals for PROAIM FF-WRLS-DR-ONE

Summary of Contents for PROAIM FF-WRLS-DR-ONE

  • Page 1 Proaim Drive One Wireless Follow focus (FF-WRLS-DR-ONE) Drive One Wireless Follow Focus (FF-WRLS-DR-ONE ) I N S T R U C T I O N M A N U A L All rights reserved No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, elec- tronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
  • Page 2 Proaim Drive One Wireless Follow focus (FF-WRLS-DR-ONE) INTRODUCTION PROAIM presents its new Drive One wireless remote follows focus system. It assists the camera operators in adjusting the focus or focal distance (zoom) of the camera shooting remotely. The Wireless Follow Focus can be used along with matching camera control gear like DSLR rigs, sliders, Steadycam kits, cranes/ jibs / dolly, Easy Rigs etc.
  • Page 3 - Do not dispose of units in household waste. Cinema Lenses Please note that the Proaim is intended for SLR and broadcast lenses only. The motor does not have the power or the rotation necessary to control heavy and stiff cinema lenses.
  • Page 4 Proaim Drive One Wireless Follow focus (FF-WRLS-DR-ONE) TRANSMITTER (Weight: 530g) RECEIVER (Weight: 340g)
  • Page 5 15mm Rid clamp Receiver Connection This is a guide to get you started with the Proaim Drive one follow focus as quickly as possible. We recommend that you read through the rest of this guide for more detailed instructions on operating the Drive One Wireless Follow focus.
  • Page 6 - If the control wheel rotates the wrong way, reverse it using the direction switch on the transmitter Please read the rest of this manual for more in depth instructions in the set up and operation of the Proaim system.
  • Page 7 Proaim Drive One Wireless Follow focus (FF-WRLS-DR-ONE) The motor is designed to mount directly onto 15mm support rods, or 19mm rods via the optional 19mm adapter. If you have a manual follow focus on the rails, it is recommended that you remove this before mounting the Proaim motor.

  • Page 8: Setting The Frequency

    When the battery is running low, the frequency light will flash slowly. The Proaim has two limits which can be set to prevent the motor over turning and damaging the lens or mo- tor. They are also useful to deal with the infinitely rotating focus ring on some of the newer SLR lenses.
  • Page 9 Some long focal length lenses have a longer lens throw (turn of the lens barrel from infinity to close focus. In some cases, this can be too much travel for the Proaim motor to turn all the way. In these situations, there are several things you can do to help achieve full lens barrel movement. If using an SLR lens, the lens gears you are using will have a big impact on the rotation you can achieve.
  • Page 10 Proaim Drive One Wireless Follow focus (FF-WRLS-DR-ONE) To set up the limits with maximum travel available, first erase both limits. With the gears disengaged, turn the lens to your preferred end and rotate the motor using the transmitter to the same end. Engage the lens to the drive gear.

  • Page 11: Technical Specifications

    Proaim Drive One Wireless Follow focus (FF-WRLS-DR-ONE) Technical Specifications Frequency: 433-434mhz (US 900mhz) Transmitter power: 10mW Range: 150 metres aprox, (50 metres in built up area) Compliant to R&TTE directive; EN300-200-3, 301-489-3 WARRANTY We offer a one year warranty for our products from the date of purchase.
