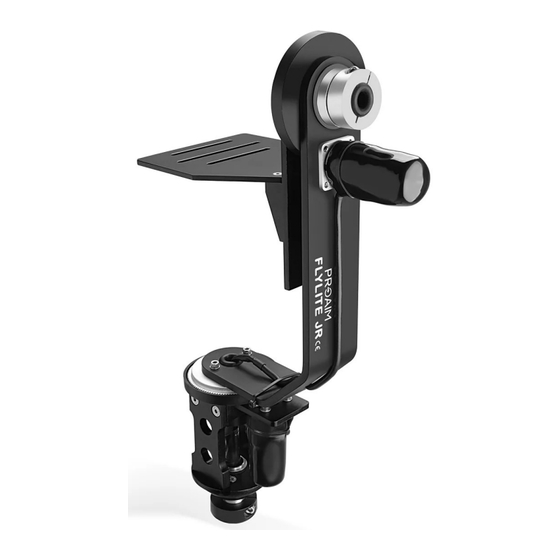

Flylite Jr. Pan & Tilt Head for Camera Jib
Crane
(FLT-JR)
A s s e m b l y M a n u a l

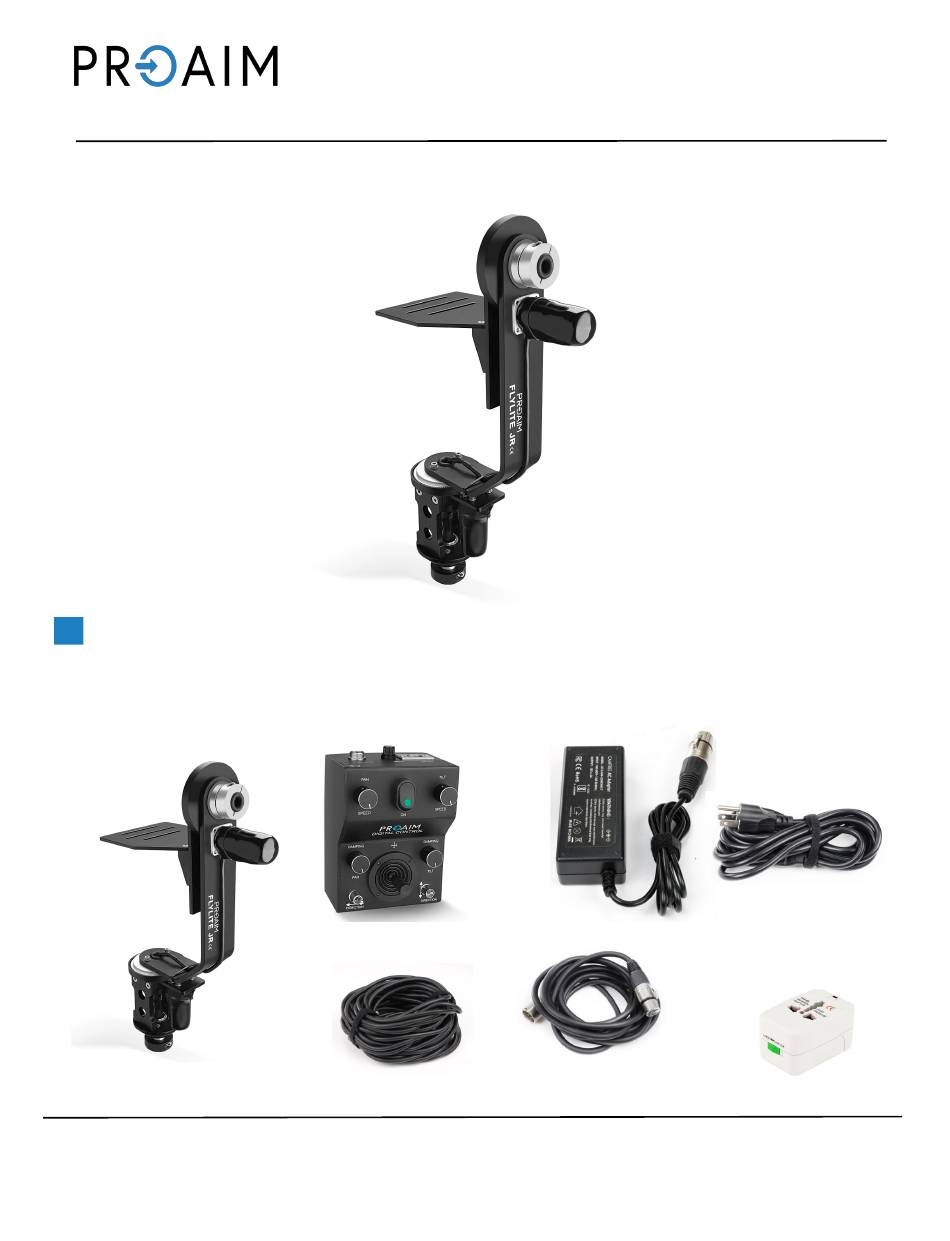

What's In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
12V AC Adapter
12V Joystick Controller
Flylite Jr. Pan-Tilt Head
3 Mtr Cable
15 Mtr XLR Cable
Universal Adapter
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright
statutes or in writing by the Publisher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PROAIM Flylite Jr. FLT-JR
Summary of Contents for PROAIM Flylite Jr. FLT-JR
- Page 1 Flylite Jr. Pan & Tilt Head for Camera Jib Crane (FLT-JR) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
- Page 2 4 x Wing Nut Checknut 4 x Allen Keys (sizes: 2mm, 2.5mm, 3mm & 3/16mm Bag Packing FUNCTIONS Gear Gear for Tilting Movement Adjustable Camera DC Motor Platform 12V Motor for Tilting Movement Gear Gear for Panning Movement DC Motor 12V Motor for Panning Movement Base Platform for Tripod/Jib...
- Page 3 Fuse Holder 12V DC Input - 4 Pin XLR 4-Pin Power out to Head Tilt Speed Pan Speed On/off Switch Tilt Damping Pan Damping Tilt Direction Pan Direction Joystick for Pan/Tilt Movement Flylite Jr. Pan & Tilt Head Setup • Loosen and remove the base platform of the Flylite Jr.
- Page 4 • Secure the Pan-tilt Head by attaching a knob from bottom and tighten it using an Allen key. • The 2-Axis Flylite Jr. Pan & Tilt Head is ready to deliver beautiful cinematic-style shots with smooth and precise motion. NOTE: The Pan-Tilt Head runs conveniently on 12V DC from a battery pack or the i AC Adapter.
- Page 5 Attaching Joystick Controller The Pan Tilt Head’s circuitry is built entirely into the Joystick Controller. The only requirement is an AC adapter (Included) or Battery Power (Not included). The AC adapter can handle 100- 240 volts. Users will need the appropriate plug adapter for local use. •...
- Page 6 • Attach the power cord to the AC Adapter as shown in the image. • Now, plug into the Universal Adapter. Functioning of Joystick Controller The Joystick is a 2-Axis Variable Speed Servo Controller. The further you move in one direction, the faster the output to that motor.
-
Page 7: Operation
Pan Direction Switch When the Pan-Tilt Head is used on a Tripod or Jib When the head is shifted from Jib to Tripod, it needs a reversal of direction as the location of the head will be inverted. By switching “on” the pan direction switch, we can immediately reverse the direction. So, when the joystick is moved to the right, it gives right rotation as it gives while mounted on the tripod directly. - Page 8 • Adjust the camera plate by loosening its bolt using the Allen key. • Position camera plate your requirement and re-tighten its bolt using the Allen key. • Turn on the Joystick controller box by pressing the “On” button. • Set the pan and tilt speed using their respective knobs.
- Page 9 Camera (Not Included) on the Head’s camera plate. • Your Setup is ready to use. YOUR PROAIM FLYLITE JR. PAN & TILT HEAD FOR CAMERA JIB CRANE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
- Page 10 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
