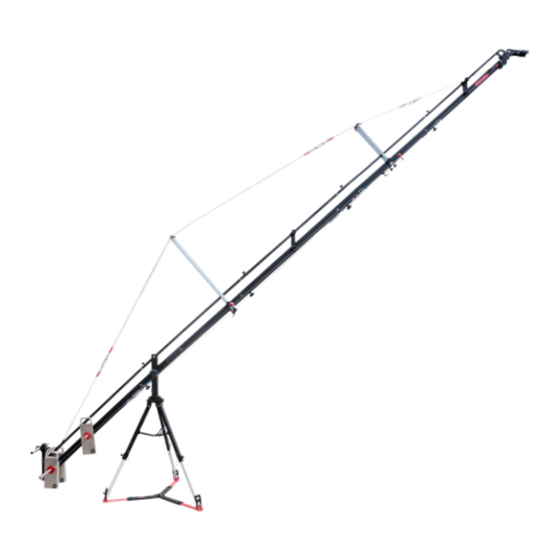

PROAIM Fly 22 Instruction Manual

Camera crane production package
Hide thumbs Also See for Fly 22:

Advertisement

Quick Links

Download this manual
Fly 22" Camera Crane Production
Package (P-FLY-22-PP)
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fly 22 and is the answer not in the manual?

Questions and answers

Related Manuals for PROAIM Fly 22

Summary of Contents for PROAIM Fly 22

  • Page 1 Fly 22” Camera Crane Production Package (P-FLY-22-PP) Instruction Manual...
  • Page 2 At Proaim, our goal is to ensure 100% Customer Satisfaction in all that we do. We back our sales with a 1 year warranty from the date of purchase and work hard to resolve any problems in the unlikely event one should arise.
  • Page 3 Proaim family. By purchasing your Proaim Fly 22' Camera Crane Production Package, you have just joined a host of designers, engineers, machinists, assembly, customer service and office staff that take great pride in all that they do.
  • Page 4 Almost every production you see today has some type of crane shot in it because shooters know how important it is to visualize story telling. Our Proaim Fly 22' is a lightweight multi- function package that lets you boom your camera up and down, move your camera in an infinite number of 360 degree areas to incorporate various angles easily.
  • Page 5 Weight rod Connectivity Plate Weight safety ends Weight closer Dolly Lanc Zoom Controller Sr. Pan Tilt Head with Joystic box Cables and accessories Packing...
  • Page 6 Assembling  Take out the Spreader from the Accessory Bag. Spread the spreader on floor and open the legs of spreader with the help of provided knob.  Open the legs of 100mm jib stand then attach it to spreader, lock it in place with the rubber grips.
  • Page 7 Assembling Jib Sections  Now mount the central fork onto the tripod , then attach bottom clamp to secure it well.  Slide the (1 A Section) into the central fork (section 2 B) and tighten with the help of knob. Slide ...
  • Page 8  Using the same approach insert 3rd, 4th and remaining sections to the joints and secure via knobs as shown below. Assembling Cable Guide And Support Rod  Attach short cable guide rod on 3rd section properly. Insert the knob onto the cable guide rod and tighten the knob properly.
  • Page 9  Using the same steps to and attach long cable guide rod on 2nd section as shown below.  Insert the weight rod on (1 section) and tighten the bolt with the help of allen key as shown in the picture. ...
  • Page 10 Adjusting The Stability Cables Cable code (red)  Now attach the both red cable hook onto the provided bolts properly as shown below. Note : Both the red cables are following same steps.  Attach (Red) cable to the (2 B section) and (section 3 C) & align itproperly with the help of cable guide clamp and attached with (5 E section).
  • Page 11  Align it to the cable guide side rod and attach it to the end (section 5th). NOTE: You can adjust the cable with the help of wire tensioner.  Attach your head plate properly and tighten the knob.
  • Page 12 Install the 12 volt DC power (4 pin XLR) in rear of joystick box. Note: Any 12 volt battery may operate the PROAIM™ Sr. PAN TILT HEAD as long as the connector mates and is #1 pin Negative and #4 pin Positive.
  • Page 13 The joystick may be operated hand held, from a flat surface like a table top or attached to the boom arm of the jib. PROAIM™ Sr. PAN TILT HEAD Digital only  Attach the 4-pin power cord to rear of joystick box.
  • Page 14  Loosen the knob and adjust the height and then retighten the knob.  Loosen the knob of controller box and insert into the rod and re-tighten the knob as shown below.  Now slide in weight to it as per your requirement and screw in weight closer properly. (Counter weight not included)
  • Page 15 & tighten the knob, now attach the one end of 9mtr wire with lanc zoom controller and second end of cable with camera. YOUR PROAIM FLY 22 CAMERA CRANE PRODUCTION PACKAGE ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES) WARRANTY We offer a one year warranty for our products from the date of purchase.
  • Page 16 We are not liable for incidental or consequential damages resulting from the use of the unit or occurring due to any breach of this warranty. Replacement parts of the product will be provided at nominal cost (covering the cost price of the replacement parts only) to the customers after the Warranty Period has expired.
