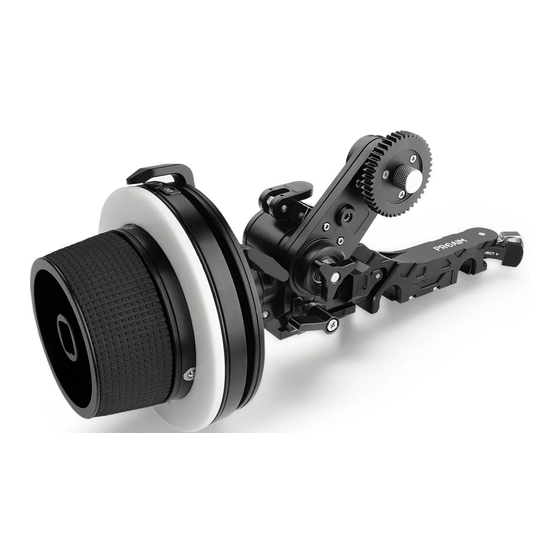

Focus Bee Follow Focus (FF-FCBE-01)

A s s e m b l y M a n u a l

What's In The Box

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Drive Gear 43 Teeth

15mm Lightweight Core Bridge

Focus Hand Wheel

Swing Arm with Drive Gear 35

2.5mm Allen Key

Pouch

Teeth knob

No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright

statutes or in writing by the Publisher.

Table of Contents

Need help?

Do you have a question about the FF-FCBE-01 and is the answer not in the manual?

Page 1 Focus Bee Follow Focus (FF-FCBE-01) A s s e m b l y M a n u a l What’s In The Box Please inspect the contents of your shipped package to ensure you have received everything that is listed below.
Page 2 Follow Focus Setup • Attach the Swing Arm to the Core Bridge and secure it using the knob as shown in the image. Feature: The Swing Arm has a 1:1.842 gear ratio, enabling wide and smooth focus adjustments. • Loosen the knob of the Focus Hand Wheel and attach the Core Bridge to it.
Page 3 Feature: 35 Teeth Drive Gear delivers a slightly faster and less sensitive focus control, making it useful for wide-angle lenses, especially in fast-paced shooting scenarios. • Remove the 35 Teeth Gear and attach the 43 Teeth Gear to the Swing Arm. Feature: 43 Teeth Drive Gear has a finer gear ratio than 35 Teeth Drive Gear, allowing the operator to focus more precisely, especially...
Page 4 Feature: It features a detent to prevent the marking disc from spinning. YOUR PROAIM FOCUS BEE FOLLOW FOCUS ALL DRESSED UP AND READY TO GO! (SHOWN WITH OPTIONAL ACCESSORIES)
Page 5 Warranty: We offer one year warranty for our products from date of purchase. Within this period of time, we will repair it without charge for labor or parts. Warranty doesn’t cover transportation costs nor does it cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspection and evaluation by us.
