Summary of Contents for Clarke DEVIL 2800PTC

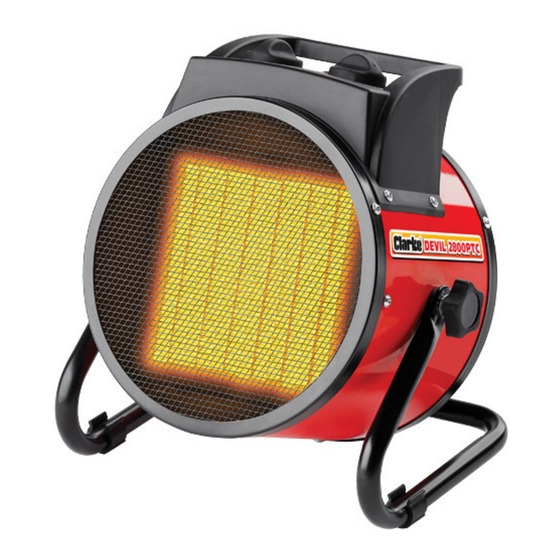

- Page 1 Only suitable for well insulated areas and not designed to be the primary heat source 2.8KW 230V PTC ELECTRIC FAN HEATER MODEL NO: DEVIL 2800PTC PART NO: 6925600 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS DL1020 - ISS 1...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE Electric Fan Heater. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. - Page 3 THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188 Item Symbol Value Unit Heat output Measured seasonal space heating energy efficiency Nominal heat output Minimum heat output (indicative) Maximum continuous heat output Auxiliary electricity consumption At nominal heat output At minimum heat output In standby mode Type of heat input for electric storage local heaters only Manual heat charge control with integrated thermostat...
-
Page 4: Safety Advice
SAFETY ADVICE Make sure that you read, understand and comply with the following. The following symbols appear on the unit. Do not Read the surface,- cover manual do not touch ELECTRICAL SAFETY • Regularly inspect the power cable / plugs to be used with this heater and DO NOT use the heater if the power cable is damaged. -
Page 5: Common Sense
POSITIONING WARNING: DO NOT USE THE HEATER NEAR FLAMMABLE MATERIAL, LIQUIDS, SOLIDS, GASES OR COMPRESSED GAS CYLINDERS ETC. • This heater is designed for indoor use only. • DO NOT place the heater close to a bath, wash basin, shower, swimming pool or any other water-filled area or wet surface. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE HEATER TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. Connecting it to any other power source may cause damage. -
Page 7: Operation
OPERATION WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED. CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND CAN CAUSE BURNS. -
Page 8: Maintenance
• ONLY recommended parts should be used. Unapproved parts may be dangerous and will invalidate the warranty. • DO NOT attempt to repair a damaged heater, contact the CLARKE service department. • Clean the heater with a soft damp cloth once cold. DO NOT use solvents or abrasives Parts &... -
Page 9: Service And Repairs
• No other maintenance is required, should you discover any problem with the heater, return it to the CLARKE service department for repair. SERVICE & REPAIRS Have your heater repaired by a qualified person using identical replacement parts. This will ensure that the safety of the heater is maintained. -
Page 10: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 11: Component Parts List
COMPONENT PARTS COMPONENT PARTS LIST Front Grille Thermostat Knob Air Outlet Shutter Fixed Ring Control Box Cover PTC Heating Element Cable Clamp Air Flue Power Cable/Plug Fan Plate Back Grille M6 x 16mm Screw Motor Steel Pipe Frame Motor Support Outer Casing Rotary Switch Self-Resetting Thermostat...
