Summary of Contents for Clarke DEVIL 2000PTC

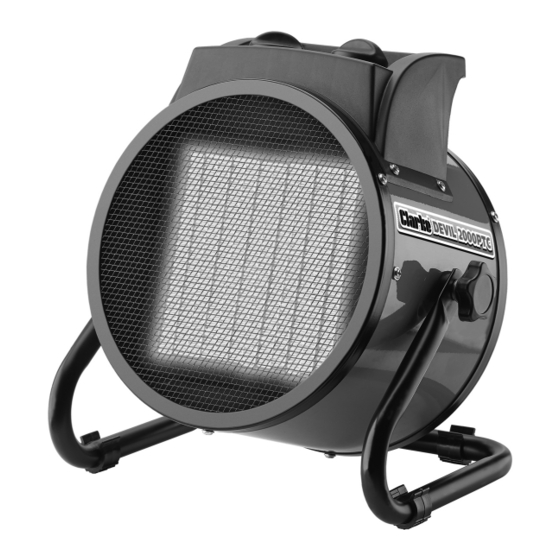

- Page 1 2KW ELECTRIC FAN HEATER MODEL NO: DEVIL 2000PTC PART NO: 6925590 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0717...
-
Page 2: Specifications
INTRODUCTION Thank you for purchasing this CLARKE product. Read this manual carefully, in doing so you guarantee the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Symbols
SAFETY SYMBOLS These safety symbols appear on the heater. Hot Surface, Do Not Cover Do Not Touch WEEE Directive for the disposal of waste elecrical & electronic equipment SAFETY RULES Make sure that you read, understand and comply with the following. ELECTRICAL SAFETY WARNING: THIS HEATER MUST BE EARTHED •... - Page 4 If used in a dusty workplace it should be cleaned as described under Cleaning and Maintenance. • The Clarke service department will use recommended parts only. Unapproved parts may be dangerous and will invalidate the warranty.
-
Page 5: Common Sense
COMMON SENSE • DO NOT operate the heater when you are tired or under the influence of alcohol, drugs or intoxicating medication. • DO NOT stand on the heater. • DO NOT use the heater with wet hands or when there is water on the power cable. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Connect the mains lead to a standard, 230 Volt (50Hz) electrical supply through an approved 13 amp BS 1363 plug, or a suitably fused isolator switch. If the plug has to be changed because it is not suitable for your socket, or because of damage, it must be removed and a replacement fitted, following the wiring instructions shown below. -
Page 7: Operation
OPERATION WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED. CAUTION: PARTS OF THIS HEATER CAN BECOME VERY HOT AND CAUSE BURNS. -
Page 8: Adjusting The Angle
SAFETY SYSTEMS THERMOSTATIC PROTECTION The Devil 2000PTC has a thermal cut out to prevent it from overheating. If the temperature of the front grille gets too high the thermal cutout will turn off the heating elements. When the fan has cooled the unit sufficiently, normal operation will resume. -
Page 9: Troubleshooting
Fuse blown or Replace if necessary and investigate although circuit breaker cause. If fuse blows repeatedly, consult plugged in trips. your Clarke dealer. with the No power at Insert the plug in a funtioning socket switch and socket outlet thermostat switched on. -
Page 10: Parts List And Diagram
PARTS LIST & DIAGRAM DESCRIPTION DESCRIPTION Front Grille Control Box Air Outlet Outer Casing PTC Heating Element Cable Fastener Air Flue Back Grill Motor Power Cable Screw Ajustable Thermostat Rubber Gasket Rotary Switch Steel Pipe Switch Knob Feet Indicator Lamp Cover Self Setting Thermostat Thermostatic Knob Metal Thermal Protection... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
