Summary of Contents for Clarke DEVIL 2800PTC-B

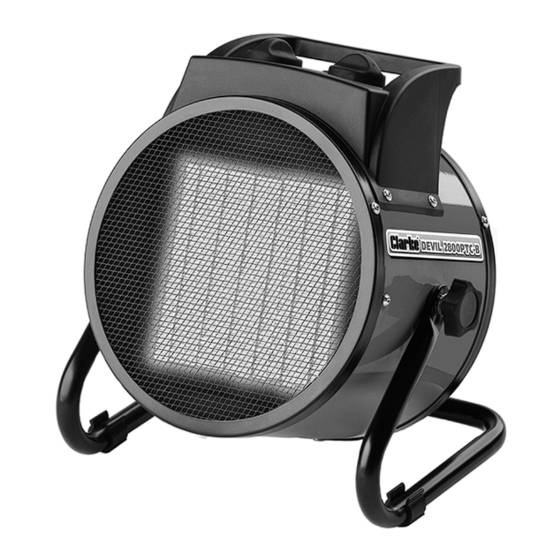

- Page 1 2.8KW 230V PTC ELECTRIC FAN HEATER MODEL NO: DEVIL 2800PTC-B PART NO: 6925601 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC03/23...
-
Page 2: Product Specifications
INTRODUCTION Thank you for purchasing this CLARKE Electric Fan Heater. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. - Page 3 THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188 Item Symbol Value Unit Heat output Measured seasonal space heating energy efficiency Nominal heat output Minimum heat output (indicative) Maximum continuous heat output Auxiliary electricity consumption At nominal heat output At minimum heat output In standby mode Type of heat input for electric storage local heaters only Manual heat charge control with integrated thermostat...
-
Page 4: Safety Advice
SAFETY ADVICE Make sure that you read, understand and comply with the following. The following symbols appear on the unit. Do not Read the surface,- cover manual do not touch GENERAL SAFETY • The heater must only be used by persons who have read these instructions •... -
Page 5: Operation
OPERATION • DO NOT obstruct the air inlet and outlet sections of the heater. • DO NOT cover the heater. • DO NOT touch the heater casing or grille when first switched off, as these will be very hot and will take time to cool. •... -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE HEATER TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. Connecting it to any other power source may cause damage. - Page 7 OPERATION WARNING: DO NOT USE THIS HEATER IN SMALL ROOMS WHEN THEY ARE OCCUPIED BY PERSONS NOT CAPABLE OF LEAVING THE ROOM ON THEIR OWN, UNLESS CONSTANT SUPERVISION IS PROVIDED. CAUTION: SOME PARTS OF THIS PRODUCT CAN BECOME VERY HOT AND CAN CAUSE BURNS.
-
Page 8: Maintenance
• ONLY recommended parts should be used. Unapproved parts may be dangerous and will invalidate the warranty. • DO NOT attempt to repair a damaged heater, contact the CLARKE service department. • Clean the heater with a soft damp cloth once cold. DO NOT use solvents or abrasives •... -
Page 9: Service And Repairs
Fuse blown or Replace if necessary and investigate switch and circuit breaker cause. If fuse blows repeatedly, thermostat trips. consult your CLARKE dealer. switched on. No power at Insert the plug in a suitable socket. socket outlet Heating element Input voltage too Use a power supply in accordance glowing hot. -
Page 10: Component Parts
COMPONENT PARTS Front Grille Thermostat Knob Air Outlet Shutter Fixed Ring Control Box Cover PTC Heating Element Cable Clamp Air Flue Power Cable/Plug Fan Plate Back Grille M6 x 16mm Screw Motor Steel Pipe Frame Motor Support Outer Casing Rotary Switch Self-Resetting Thermostat Adjustable Thermostat Temperature Probe... -
Page 11: Declarations Of Conformity
DECLARATIONS OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
