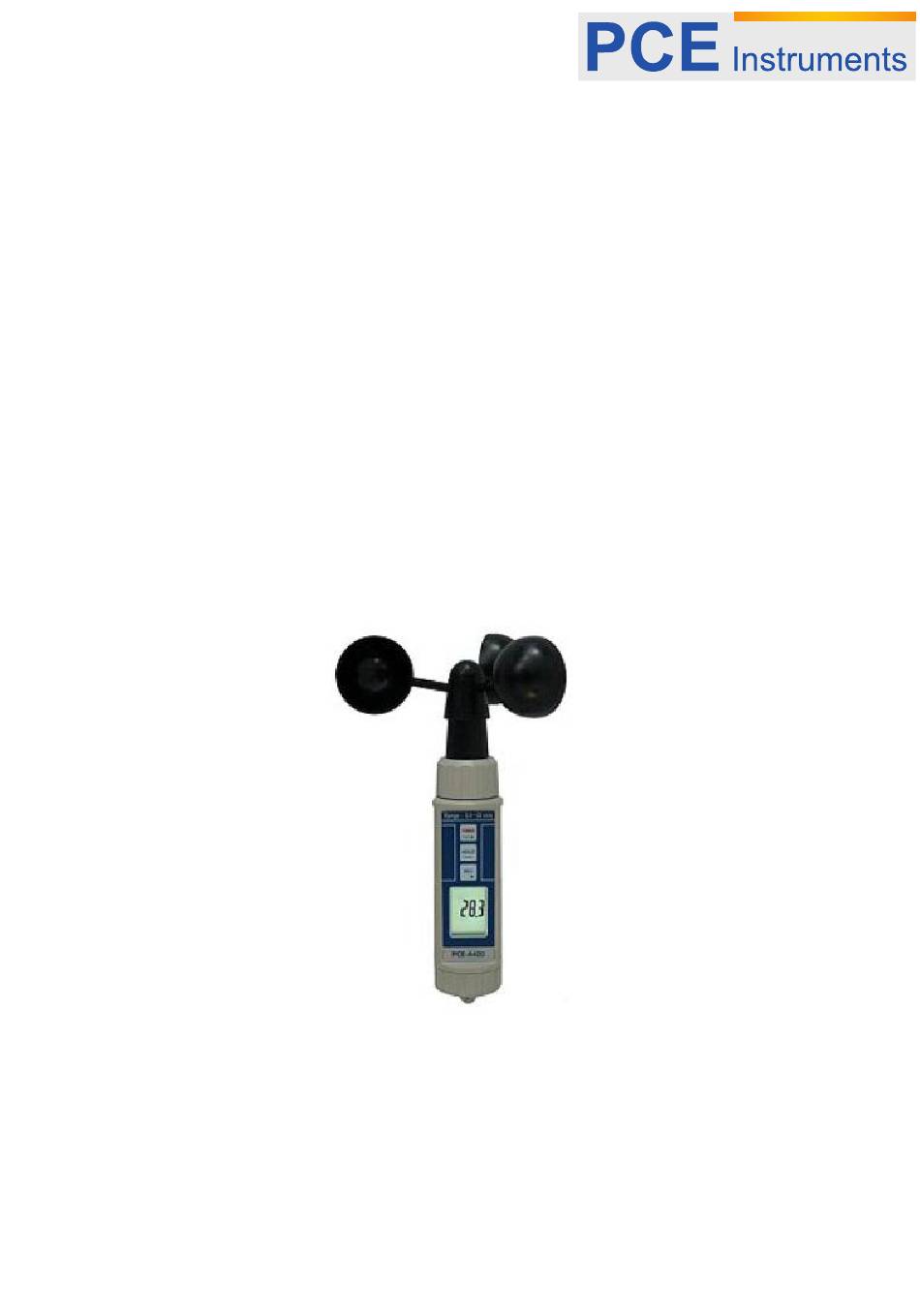

Page 1
PCE Americas Inc. PCE Instruments UK Ltd. 711 Commerce Way Units 12/13 Suite 8 Southpoint Business Park Jupiter Ensign way FL-33458 Hampshire / Southampton United Kingdom, SO31 4RF From outside US: +1 From outside UK: +44 Tel: (561) 320-9162 Tel: (0) 2380 98703 0 Fax: (561) 320-9176 Fax: (0) 2380 98703 9 info@pce-americas.com...
Manual Version 1.0 17.10.2014 Content Introduction........................3 Safety ..........................3 Specifications ......................3 Feautures ..............................3 General Specifications ........................... 4 Electrical Specifications (23 ±5°C) ....................... 4 System description .....................5 Measuring Procedure ....................7 Wind Speed Measurement ........................7 5.1.1 Unit Change..............................7 5.1.2 Data Hold ..............................7 5.1.3 Data Record (Max., Min.
Manual Introduction Thank you of purchasing a PCE-A420 cup vane anemometer from PCE Instruments. A handy cup anemometer with digital display. The great advantage of the cup anemometer is no doubt in the possibility that you do not have to hold the cup anemometer exactly in the wind direction. Normal vane anemometers have the disadvantage that they only measure exactly when the impeller is held in the wind direction.
Manual General Specifications Display LCD size: 28mm x 19mm. Measurement m/S (meters per second) Unit km/h (kilometers per hour) Knot (nautical miles per hour) ft/min (feet per minute) mile/h ( miles per hour) Circuit Custom one-chip of microprocessor LSI circuit. Data Logger Max.
Manual Measuring Procedure Wind Speed Measurement Turn on the meter by pressing the “Power Button” (3-2, Fig. 1) momentarily. Pressing the “Power- Button” (3-2, Fig. 1) momentarily again to turn off the meter. 1) Use the hand to hold the meter vertically. The “Cup Vane” (3-1) will be rotated and shows the measured the wind speed value on the “LCD Display”...
Manual Data Logger The meter can save max. 100 point data into the memory circuit 5.2.1 Save data 1) Turn on the meter. 2) Press the “REC Button” (3-4, Fig.1) momentarily, shows “REC” on the display. 3) Press the “Logger Button” ( 3-2, Fig.1) momentarily will save one measuring value to memory, display will show: 4) To exit the memory data logger (record) function, press the “REC”...
Manual Note: * During call the data, the unit display will be flashed. * Press “Hold Button” (3-3, Fig.1) will exit the data call function. 5.2.3 Delete Data (Empty the memory) 1) Turn off the meter first. 2) Press the “REC Button” (3-4, Fig.1) continuously and do not release, at the same time press the “ Power Button”...
Manual Now all saved data´s are deleted, memory is empty. Battery Replacement Replace the batteries when the left corner of the LCD displays shows the low battery icon “ “, using 4 fresh 1.5V (UM4, AAA) batteries. To change the batteries, open (rotate clockwise direction) the “Battery Cover” (3-6, Fig.1). ...
