Installation

4 Installation
4.1

Mechanical connection

Use only original accessories, in case of doubt consult the manufacturer.
Take care that the carrying capacity / working load limit (WLL) of the lifting device/carrier is not exceeded,
through the load of the device, the attaching devices (turning device, fork sleeves etc.) and the additional
load of the gripping goods!
5

Operation

5.1

Transporting and parking the device

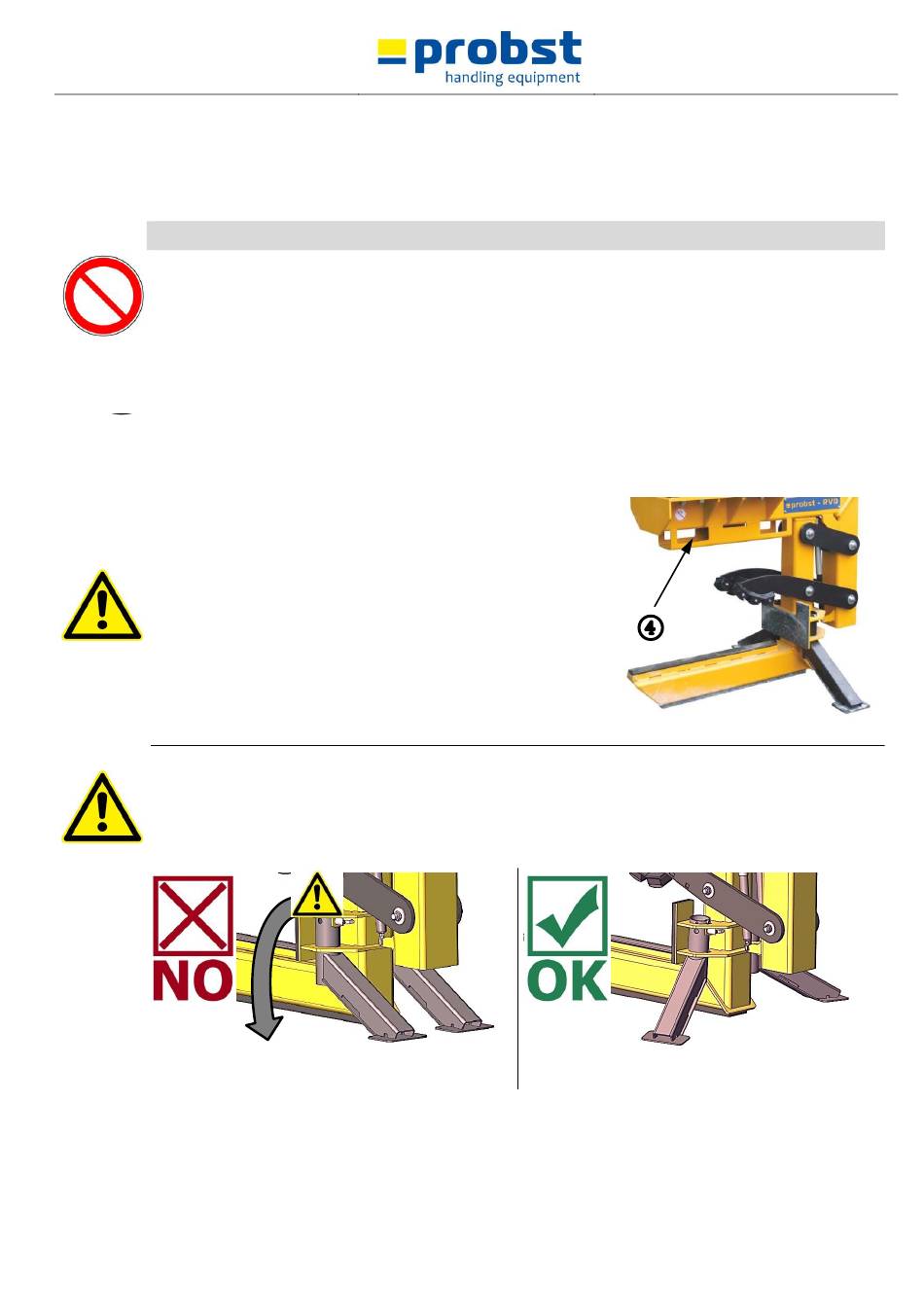

To transport the device WITHOUT mounted carrier (excavator), you
drive with the forks of a carrier (e.g. wheel loader) into the fork
sleeves ④.
To secure the device against slipping off the forks, the following
must be observed:
- - Generally tilt the forks backwards (in the direction of the
carrier),
- - The forks can either be locked by means of locking screws,
which are inserted through a hole in the forks to be
provided,
- - or forks by means of a chain or rope, around the device
(RVD-4,5-ECO) and around the fork carrier of the carrier
device.
When parking the device (RVD-4,5-ECO) WITHOUT mounted carrier on the floor, the following must be
observed:
•
the ground must be level, horizontal and sufficiently load-bearing,
•
both supporting feet must be swivelled outwards (Fig. 3-8) to ensure that the unit stands securely.
If this is not followed, there is a risk of the (RVD-4,5-ECO) DANGER OF ACCIDENTS tipping over!
4400.0184
Fig. 3
V1
10 / 16
Fig. 4
GB
