Assa Abloy SARGENT 268 Series Manual

268, 269 (CSPS OR CSPD)
SECURITY OVERHEAD CONCEALED DOOR CLOSER
WITH INTEGRATED SINGLE OR DOUBLE SWITCH
CAUTION: FAILURE TO INSTALL OR ADJUST PROPERLY MAY RESULT IN INJURY OR DAMAGE.
FOR INSTALLATION ASSISTANCE CALL SARGENT AT 1-800-727-5477 • www.sargentlock.com

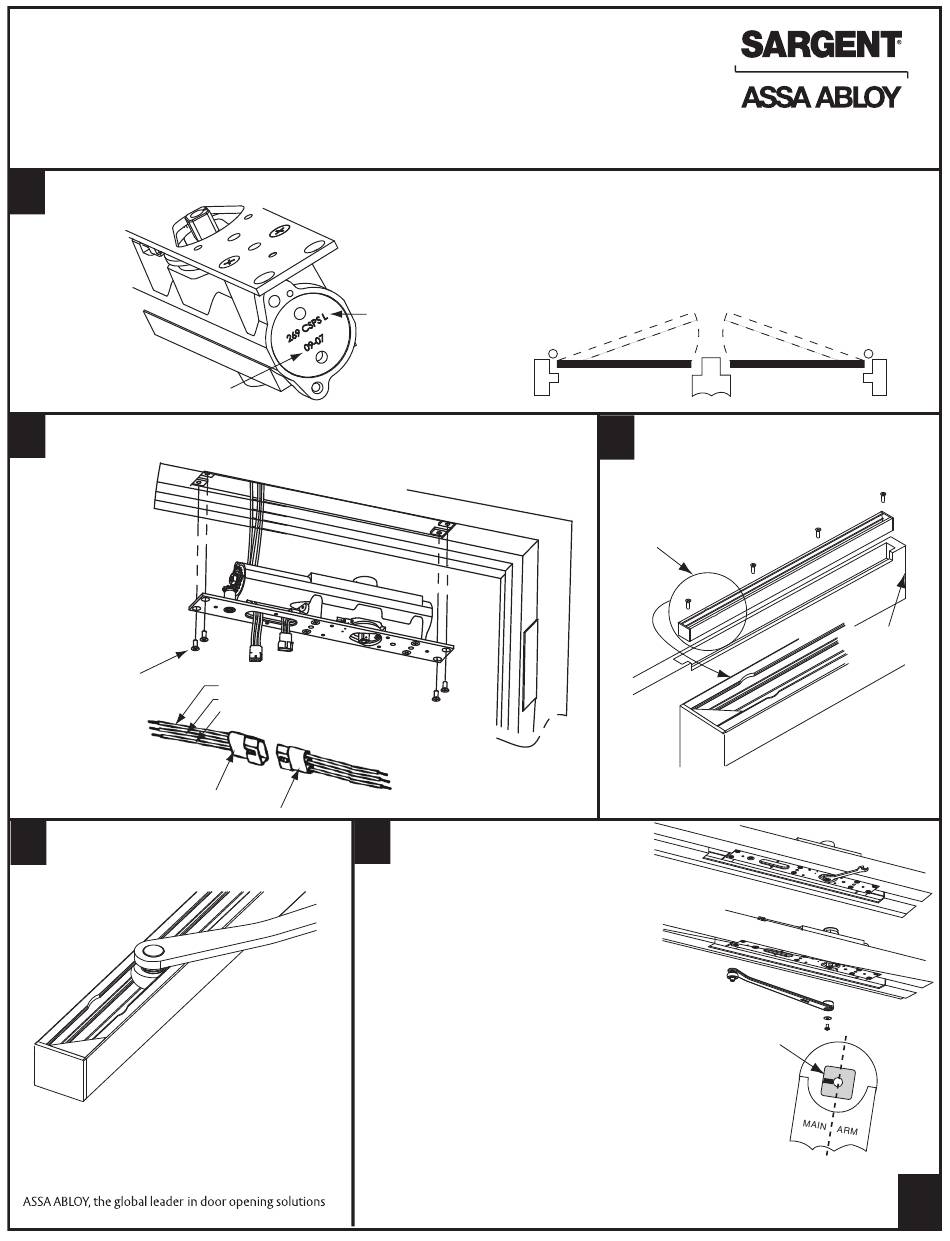

A
VERIFY THE HAND OF THE CLOSER BEFORE INSTALLING. REFERRING TO THE STAMPING ON THE CLOSER END CAP AS SHOWN
DATE CODE:
MONTH AND YEAR
B
WITH POWER OFF, CONNECT WIRES AND INSTALL CLOSER INTO PREPARED FRAME WITH
SPRING ADJUSTMENT SCREW AWAY FROM HINGE. (268 CSPS DOOR CLOSER SHOWN)
OPTIONAL: 268 CSPD
DOOR CLOSER HAS TWO
SETS OF WIRES
4 EACH
12-24 X 5/8" MS
(PROVIDED)
FROM DOOR
POSITION SWITCH
D
INSERT ARM ROLLER INTO TRACK THRU
CUTOUT AND TEMPORARILY LET ARM
LAY ON A TRACK.
MODEL NUMBER
AND HANDING
RED– NORMALLY CLOSED
BLUE– NORMALLY OPEN
BLACK– COMMON
TO MONITORING SYSTEM
E
1. USING 1/8" ALLEN WRENCH, TURN LATCHING
SPEED AND DOOR CLOSING SPEED VALVES
(SEE FIGURE 1) CLOCKWISE UNTIL THEY STOP.
DO NOT FORCE VALVES.
2. USING ADJUSTABLE WRENCH, ROTATE
DOOR CLOSER SPINDLE (SEE FIGURE 1)
90° CLOCKWISE FOR LEFT HAND DOOR AND
COUNTER CLOCKWISE FOR RIGHT HAND DOOR.
3. OPEN DOOR APPROXIMATELY 50° WITH THE
DOOR CLOSER SPINDLE NOW STATIONARY,
MOVE THE END OF THE ARM TO THE SPINDLE
END UNTIL SQUARE HOLE IN THE ARM LINES
UP WITH THE SPINDLE END SQUARE (AS SHOWN).
PUSH ARM UP INTO POSITION ON THE SPINDLE
AND SECURE WITH SECURITY SCREW
AND WASHER.
4. RETURN LATCHING AND DOOR SPEED
VALVES TO NORMAL POSITION
268/269 CSPS/CSPD DOOR CLOSERS ARE HANDED AND SHOULD BE SAME HAND AS DOOR
LEFT
HAND DOOR
When using the optional
circuit tester, refer to page 3
for instructions
ASSEMBLY OF ARM TO DOOR
CLOSER SPINDLE
Copyright © 2009, Sargent Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written
PULL
PULL
HINGE SIDE HINGE SIDE
STOP (PUSH) SIDE STOP (PUSH) SIDE
C
INSTALL TRACK IN DOOR AS SHOWN USING
TAMPER PROOF SECURITY SCREWS
PROVIDED.
CUTOUT AWAY
FROM HINGES
INDEX MARK
ON SPINDLE
R.H. SHOWN VIEW
LOOKING UP
permission of Sargent Manufacturing Company is prohibited.
RIGHT
HAND DOOR
HINGE EDGE
OF DOOR
1
A7326C 06-15-09
