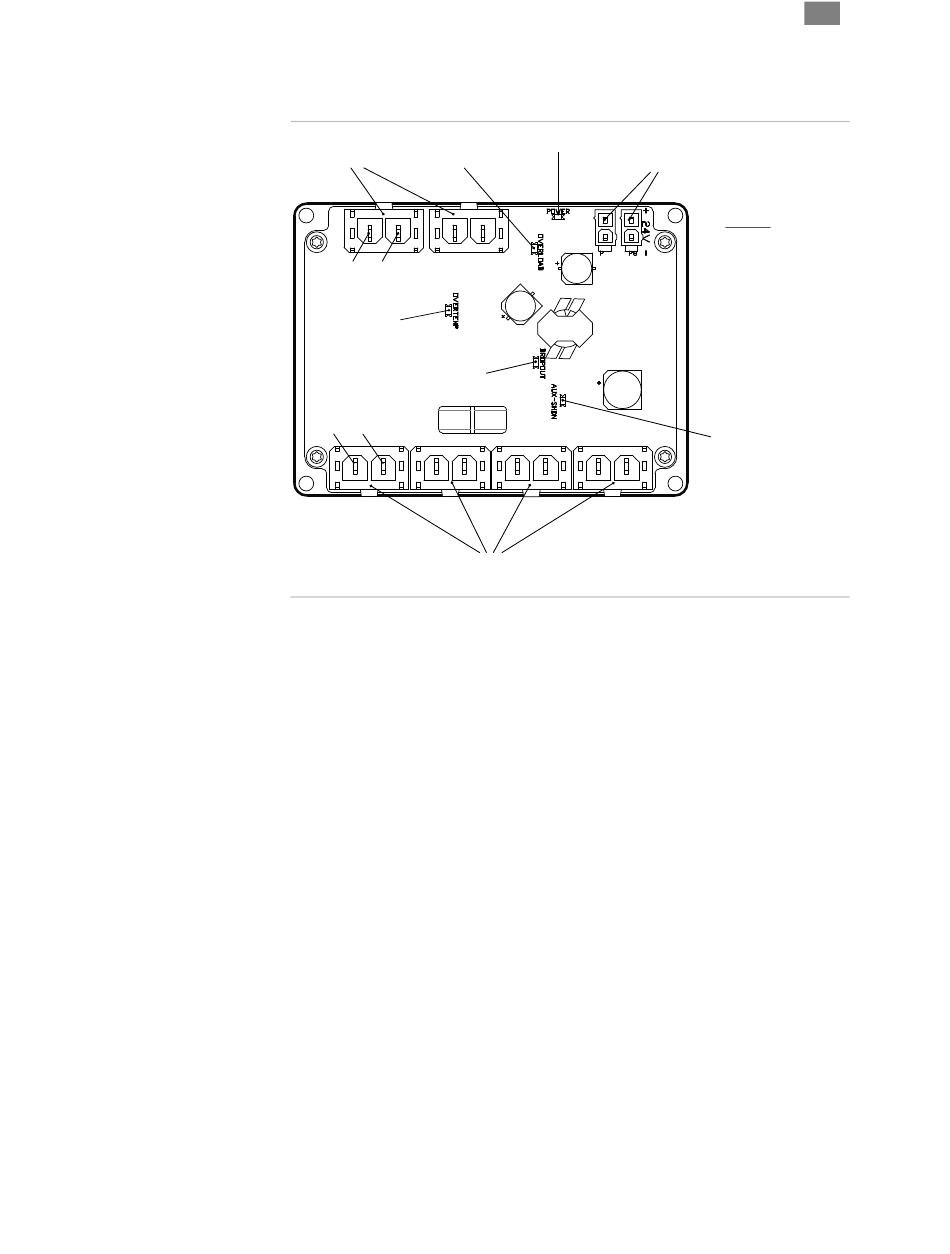

Parts of a Power Hub

DC Bus Power Input/Passthrough (Qty. 2) - Supply 24-75VDC
power from your DC Bus Supply to either of these connectors (they are
wired in parallel). The other connector can be used to daisy chain bus
power to a second Power Hub if desired, or left unconnected.
DC Bus Power Outputs (Qty. 4) - These four connectors supply bus
power to your ClearPath motors. In addition, if power is dropped, they
carry aux. power to keep maintain motor communication to the host
application. They are fully short-circuit protected.
24VDC Logic Power Input, with Passthrough (Qty. 2) - Supply low
power 24VDC logic power to either of these connectors (they are wired in
parallel). The other connector can be used to daisy chain power to a
second Power Hub.
Power Hub LEDs - There are 5 LED indicators on a Power Hub. Please
refer to the section "Power Hub LEDs" (later this section) for a complete
explanation of what the Power Hub LEDs indicate.
. 3 . 0 9
24V Power LED
24VDC Logic Power
Input & Passthrough
Power Output
3 8
*
* Note:
24VDC Logic Power
is required for operation.
Aux. (Logic) Power
Overload LED
