eNet
Radio blinds actuator for rail mounting
Radio blinds actuator for rail mounting
Art. No. : FM J 50700 REG
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. During installation and cable routing, comply with the
regulations and standards which apply for SELV circuits.
For parallel connection of several motors to an output it is essential to observe the
corresponding instructions of the manufacturers, and to use a cut-off relay if necessary.
The motors may be destroyed.
Risk of injury. Use the device only for controlling Venetian blind and roller shutter
motors or awnings. Do not use it to switch other loads.
Use only venetian blind motors with mechanical or electronic limit switches. Check the
limit switches for correct adjustment. Observe the specifications of the motor
manufacturers. Device can be damaged.
Fire hazard! Operation exclusively with the power supplies listed under accessories
These instructions are an integral part of the product, and must remain with the end
customer.

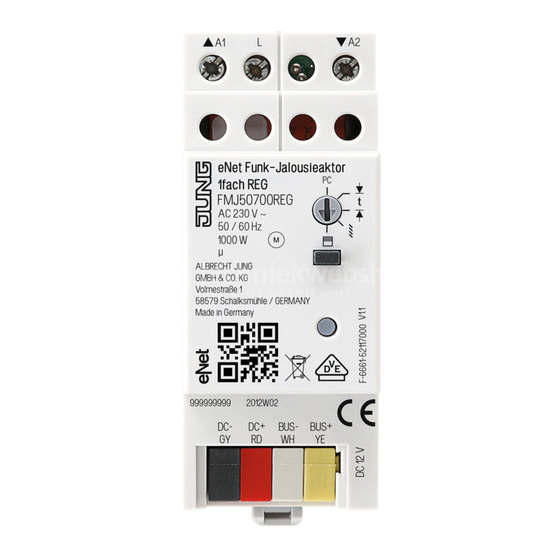

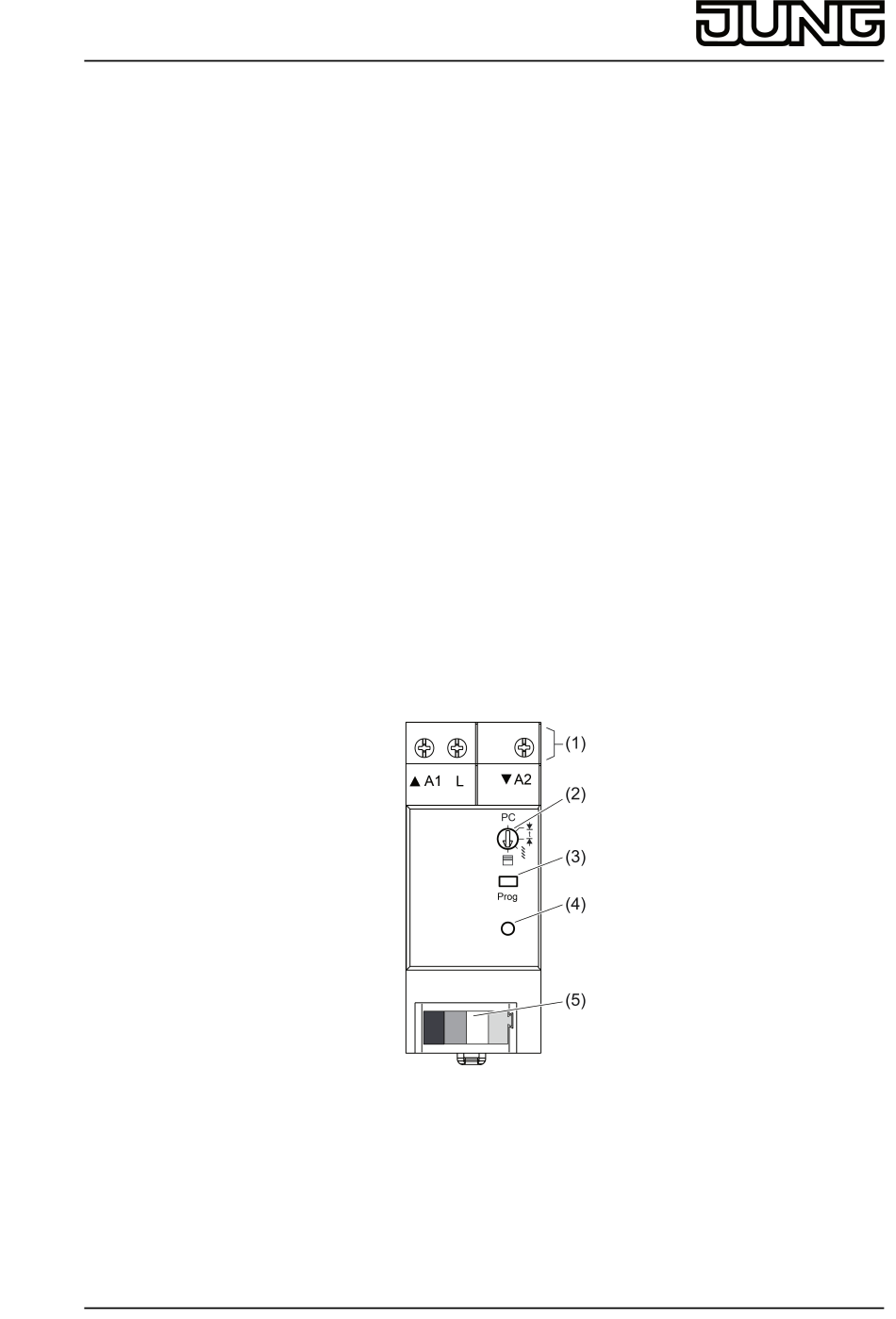

2 Device components
(1) Terminals
(2) Operating mode switch
(3) Button Prog
(4) Status LED
(5)
Bus line connection
82581813
J:0082581813
Figure 1: Device components
1/10
12.03.2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the FM J 50700 REG and is the answer not in the manual?

Questions and answers

Related Manuals for Jung FM J 50700 REG

Summary of Contents for Jung FM J 50700 REG

  • Page 1 Radio blinds actuator for rail mounting Radio blinds actuator for rail mounting Art. No. : FM J 50700 REG Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.

  • Page 2: Operation

    eNet Radio blinds actuator for rail mounting 3 Function System information This device is a part of the eNet system. High transmission reliability at a radio frequency of 868 MHz is achieved by the transmission behaviour and bidirectional data transfer. The range of a radio system depends on various external circumstances.
  • Page 3 eNet Radio blinds actuator for rail mounting The control direction is changed when the button is pressed again. Status-LED lights up: output switched on. Status-LED off: output switched off. 5 Information for electrically skilled persons 5.1 Fitting and electrical connection DANGER! Electrical shock when live parts are touched.
  • Page 4 eNet Radio blinds actuator for rail mounting Connecting loads Figure 3: Connection example Connect load as shown in the connection example (figure 3). Presetting the operating mode Figure 4: Operating mode switch Switch position Function Operating mode and parameter set with eNet server.*) Commission - determine running time Commission - determine slat time...
  • Page 5 eNet Radio blinds actuator for rail mounting If the operating mode switch is turned from the position PC to another operating mode, the parameters are set to the default setting. The settings made with the eNet server will be lost. Mains voltage is switched off.
  • Page 6 eNet Radio blinds actuator for rail mounting The blind/shutter starts. The status LED flashes after 4 seconds and the blind/shutter stops. The actuator is in programming mode for approx. 1 minute. Switch radio transmitter to programming mode (see radio transmitter instructions). Trigger telegram on the radio transmitter.

  • Page 7: Parameter List

    eNet Radio blinds actuator for rail mounting Finely stranded with conductor sleeve 0.5 ... 2.5 mm² Fitting width 36 mm / 2 modules Bus line Rated voltage DC 12 V SELV Current consumption max. 20 mA Connection, Bus Connection terminal Cable length max.
  • Page 8 eNet Radio blinds actuator for rail mounting Behaviour on voltage return No change Defines the behaviour of the Configured value output after voltage return. Basic setting: No change RMD design: Bus voltage return Configured venetian blind 0 ... 100 % If the value "Configured position Basic setting: 0 %...
  • Page 9 eNet Radio blinds actuator for rail mounting Minimum change-over-time 300 ms ... 10 sec Minimum interruption time Basic setting: 1 s when changing directions. Increasing the minimum change-over time will cause less wear on the motors. Invert movement direction On, Off Inverts the activation of the Basic setting: Off relay outputs.

  • Page 10: Warranty

    We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04...
