eNet

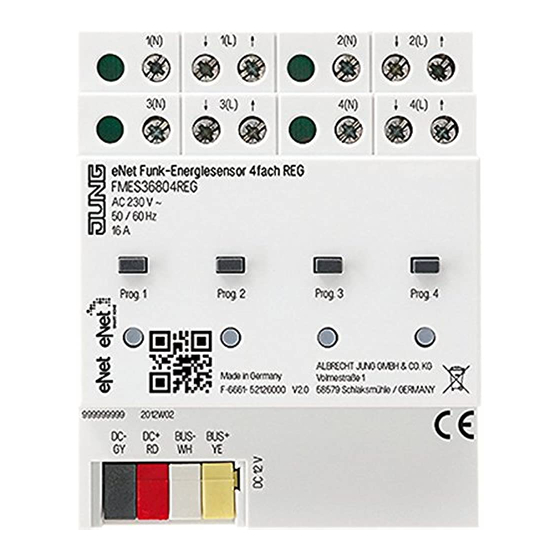

Radio energy detector, 4-channel, for rail mounting
Radio energy detector, 4-channel, for rail mounting
Art. No. : FM ES 36804 REG
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. During installation and cable routing, comply with the
regulations and standards which apply for SELV circuits.
Fire hazard! Operation exclusively with the power supplies listed under accessories
These instructions are an integral part of the product, and must remain with the end
customer.

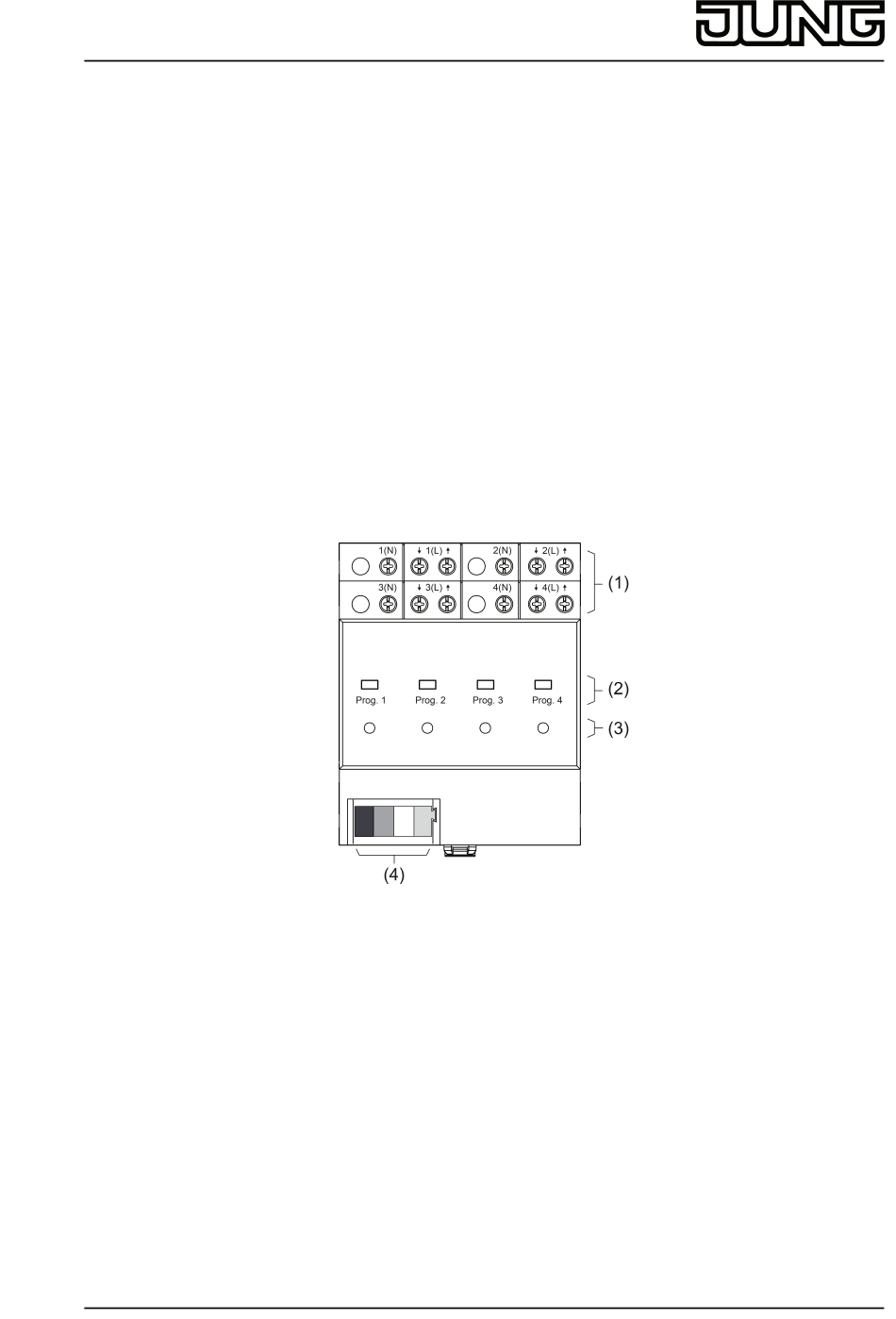

2 Device components
(1) Terminals
(2) Button Prog 1...4
(3) Status-LED, red 1...4
(4)
Bus line connection
3 Function
System information
This device is a part of the eNet system.
High transmission reliability at a radio frequency of 868 MHz is achieved by the transmission
behaviour and bidirectional data transfer.
The range of a radio system depends on various external circumstances. The range can be
optimised by the choice of installation location.
You can find further information about the eNet system on our website.
The device may be operated in all EU and EFTA countries.
82582003
J:0082582003
Figure 1: RMD energy sensor
1/8
14.03.2014
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jung FM ES 36804 REG
Summary of Contents for Jung FM ES 36804 REG
- Page 1 Radio energy detector, 4-channel, for rail mounting Radio energy detector, 4-channel, for rail mounting Art. No. : FM ES 36804 REG Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
- Page 2 eNet Radio energy detector, 4-channel, for rail mounting Intended use Energy sensor to determine voltage, current and energy values Transfer of the measured values to the eNet server Operation with power supply RMD and receiver module RMD cover or eNet server (see accessories) Installation in distribution boxes on DIN rail according to EN 60715 i The energy sensor is not officially calibrated and may not therefore be used for invoicing...
- Page 3 eNet Radio energy detector, 4-channel, for rail mounting Connect bus line Figure 2: Connection diagram of bus line Labelling / Colour Connection DC– / GY dark grey Power supply – DC+ / RD red Power supply + Bus– / WH white Data cable –...
- Page 4 eNet Radio energy detector, 4-channel, for rail mounting Connect the circuits to be monitored according to the energy sensor connection example (figure 3). Connect the energy sensor behind the circuit breakers. i The neutral conductor must be connected separately for each monitored circuit. This means that the circuits can also be a part of different residual current protection circuits.
-
Page 5: Parameter List
eNet Radio energy detector, 4-channel, for rail mounting finely stranded without conductor sleeve 0.75 ... 4 mm² Finely stranded with conductor sleeve 0.5 ... 2.5 mm² Fitting width 72 mm / 4 modules Bus line Rated voltage DC 12 V SELV Current consumption 10 mA Connection, Bus... - Page 6 eNet Radio energy detector, 4-channel, for rail mounting Transmit effective output On, Off Transmits the average Basic setting: On effective output. If negative values are displayed, then effective output is fed in, e.g. via a photovoltaic system. Transmit apparent output On, Off Transmits the current Basic setting: On...
- Page 7 eNet Radio energy detector, 4-channel, for rail mounting Suppression length, effective 0 ms … 300 s Triggers for event-controlled output Basic setting: 0 ms transmission are often switch- on and switch-off operations. In order to avoid incorrect measured values due to switch-on peaks, this parameter can be used to enter a suppression period.
-
Page 8: Troubleshooting
We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04...
