Radio push-button controller 1-10 V
Radio push-button controller 1-10 V
Art. No. : FM ST 50 UP
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
These instructions are an integral part of the product, and must remain with the end
customer.

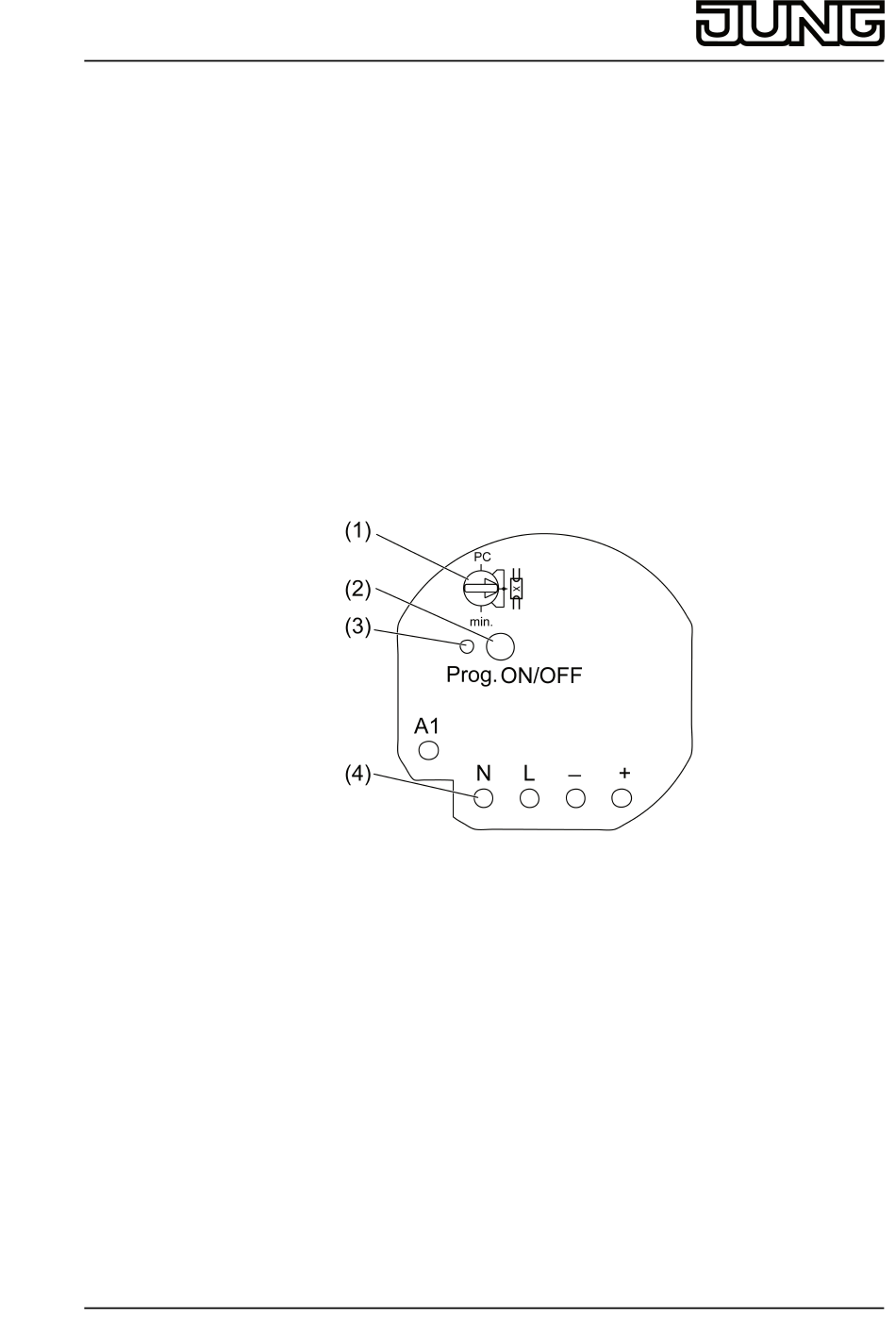

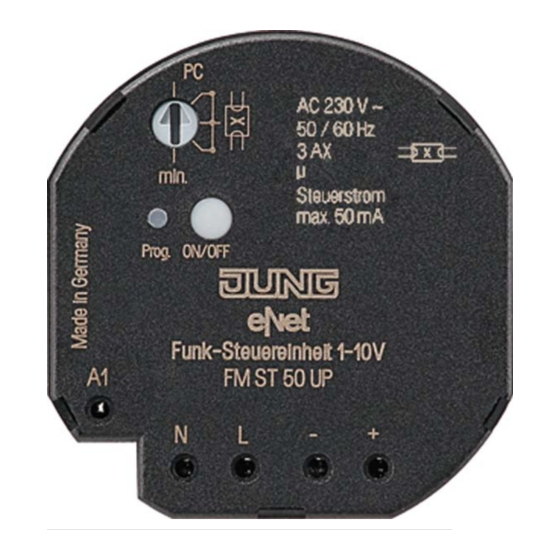

2 Device components
(1) Operating mode switch
(2) Button Prog
(3) Status LED
(4) Measuring points for voltage measurement, terminals rear-mounted
3 Function
System information
This device is a part of the eNet system.
High transmission reliability at a radio frequency of 868 MHz is achieved by the transmission
behaviour and bidirectional data transfer.
The range of a radio system depends on various external circumstances. The range can be
optimised by the choice of installation location.
This device complies with the requirements of the R&TTE Directive 1999/5/EC. Declaration of
Conformity and further information on the eNet system can be found on our website.
The device may be operated in all EU and EFTA countries.
82581013
J:0082581013
Figure 1: Device components
1/11
13.03.2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FM ST 50 UP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jung FM ST 50 UP

Summary of Contents for Jung FM ST 50 UP

  • Page 1 Radio push-button controller 1-10 V Radio push-button controller 1-10 V Art. No. : FM ST 50 UP Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.

  • Page 2: Operation

    eNet Radio push-button controller 1-10 V Intended use Switching and brightness setting of luminaires with 1-10 V interface Operation with suitable radio transmitters Mounting in appliance box according to DIN 49073 in combination with a suitable cover. Installation in surface-mounted housing or panel-mounted housing (accessories) for suspended ceilings Product characteristics Switch-on brightness can be saved permanently...
  • Page 3 eNet Radio push-button controller 1-10 V Figure 2: Connection example i Ensure that the control cable is of the appropriate type, cross-section and routing for the VDE specifications for 250 V cable, control voltage has basic insulation. i The control cable and load cable can be run in a shared cable, e.g. NYM J 5×1.5. Connect actuator (5) and 1-10 V ballasts (6) as shown in the connection example (figure 2).
  • Page 4 eNet Radio push-button controller 1-10 V Switch on mains voltage. i The 1-10 V ballasts can be switched by briefly pressing the Prog button. Status-LED (3) lights up: switched on Status-LED (3) off: switched off Perform commissioning. i In installation positions that are not easily accessible, turn the operating mode switch to position PC after commissioning and performing a function test.

  • Page 5: Technical Data

    eNet Radio push-button controller 1-10 V Press the Prog button for at least 20 seconds. The status LED flashes after 4 seconds. After 20 seconds the status LED flashes faster. Release Prog button and press briefly once again within 10 seconds. The status LED flashes more slowly for approx.

  • Page 6: Parameter List

    eNet Radio push-button controller 1-10 V 6.2 Parameter list Settings window Device settings Parameters Setting options, Basic Explanations setting Manual commissioning On, Off Blocks manual commissioning Basic setting: On for the device channel. Note: In the "Off" setting, the device cannot be reset to the factory setting.
  • Page 7 eNet Radio push-button controller 1-10 V Switch-on brightness 1...100 % During brief operation, the Basic setting: 100 % output switches on at the set switch-on brightness. Note: If the value is above the set maximum brightness or below the minimum brightness, then the system will switch to the appropriate limit value.
  • Page 8 eNet Radio push-button controller 1-10 V Dimming adjustment time 1…60 s Time from minimum Basic setting: 4 s brightness until reaching maximum brightness (dimming speed). Run-on time 0 s … 24 h As soon as a run-on time has Basic setting: 0 s been entered, the actuator will no longer remain on permanently, but only for the...
  • Page 9 eNet Radio push-button controller 1-10 V Switch-off warning On, Off If the switch-off warning is Basic setting: Off active, then, during switch-off, the systems dims to minimum brightness within 30 seconds and only then switches off. If the parameter "Dim down ramp"...
  • Page 10 eNet Radio push-button controller 1-10 V Switch on brightness On, Off Allows automatic switch-on undershoot Basic setting: Off according to the brightness. If the parameter is On, then the light controller switches on automatically when the brightness setpoint is greatly undershot.

  • Page 11: Troubleshooting

    We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04...
