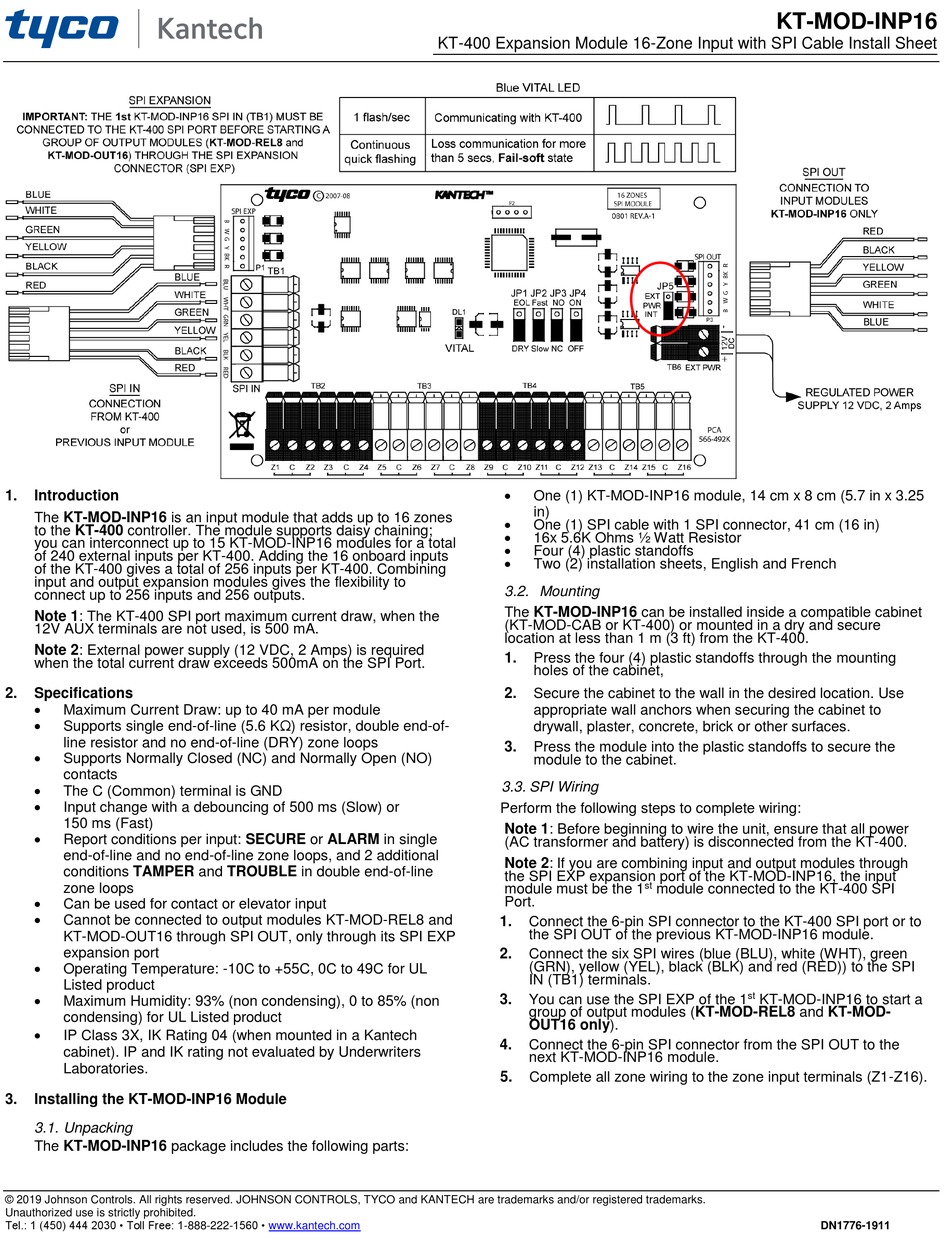

Tyco Kantech KT-MOD-INP16 Manual

1.

Introduction

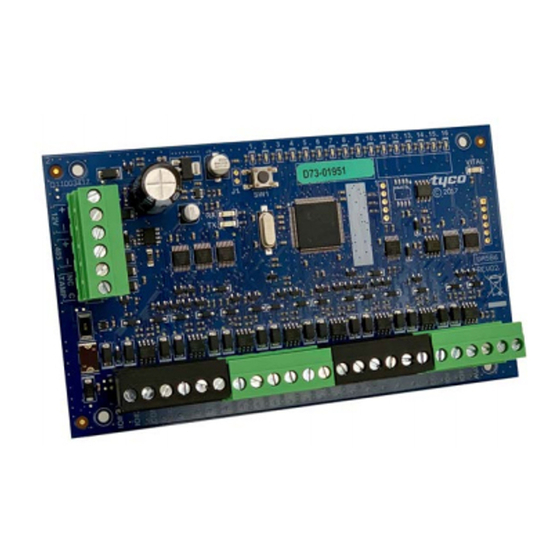

The KT-MOD-INP16 is an input module that adds up to 16 zones
to the KT-400 controller. The module supports daisy chaining;
you can interconnect up to 15 KT-MOD-INP16 modules for a total
of 240 external inputs per KT-400. Adding the 16 onboard inputs
of the KT-400 gives a total of 256 inputs per KT-400. Combining
input and output expansion modules gives the flexibility to
connect up to 256 inputs and 256 outputs.
Note 1: The KT-400 SPI port maximum current draw, when the
12V AUX terminals are not used, is 500 mA.
Note 2: External power supply (12 VDC, 2 Amps) is required
when the total current draw exceeds 500mA on the SPI Port.
2.

Specifications


Maximum Current Draw: up to 40 mA per module

Supports single end-of-line (5.6 KΩ) resistor, double end-of-
line resistor and no end-of-line (DRY) zone loops

Supports Normally Closed (NC) and Normally Open (NO)
contacts

The C (Common) terminal is GND

Input change with a debouncing of 500 ms (Slow) or
150 ms (Fast)

Report conditions per input: SECURE or ALARM in single
end-of-line and no end-of-line zone loops, and 2 additional
conditions TAMPER and TROUBLE in double end-of-line
zone loops

Can be used for contact or elevator input

Cannot be connected to output modules KT-MOD-REL8 and
KT-MOD-OUT16 through SPI OUT, only through its SPI EXP
expansion port

Operating Temperature: -10C to +55C, 0C to 49C for UL
Listed product

Maximum Humidity: 93% (non condensing), 0 to 85% (non
condensing) for UL Listed product

IP Class 3X, IK Rating 04 (when mounted in a Kantech
cabinet). IP and IK rating not evaluated by Underwriters
Laboratories.
3.

Installing the KT-MOD-INP16 Module

3.1. Unpacking

The KT-MOD-INP16 package includes the following parts:
© 2019 Johnson Controls. All rights reserved. JOHNSON CONTROLS, TYCO and KANTECH are trademarks and/or registered trademarks.
Unauthorized use is strictly prohibited.
Tel.: 1 (450) 444 2030 • Toll Free: 1-888-222-1560 •
KT-400 Expansion Module 16-Zone Input with SPI Cable Install Sheet
www.kantech.com

One (1) KT-MOD-INP16 module, 14 cm x 8 cm (5.7 in x 3.25
in)

One (1) SPI cable with 1 SPI connector, 41 cm (16 in)

16x 5.6K Ohms ½ Watt Resistor

Four (4) plastic standoffs

Two (2) installation sheets, English and French

3.2. Mounting

The KT-MOD-INP16 can be installed inside a compatible cabinet
(KT-MOD-CAB or KT-400) or mounted in a dry and secure
location at less than 1 m (3 ft) from the KT-400.
1. Press the four (4) plastic standoffs through the mounting
holes of the cabinet,
2. Secure the cabinet to the wall in the desired location. Use
appropriate wall anchors when securing the cabinet to
drywall, plaster, concrete, brick or other surfaces.
3. Press the module into the plastic standoffs to secure the
module to the cabinet.

3.3. SPI Wiring

Perform the following steps to complete wiring:
Note 1: Before beginning to wire the unit, ensure that all power
(AC transformer and battery) is disconnected from the KT-400.
Note 2: If you are combining input and output modules through
the SPI EXP expansion port of the KT-MOD-INP16, the input
st
module must be the 1 module connected to the KT-400 SPI
Port.
1. Connect the 6-pin SPI connector to the KT-400 SPI port or to
the SPI OUT of the previous KT-MOD-INP16 module.
2. Connect the six SPI wires (blue (BLU), white (WHT), green
(GRN), yellow (YEL), black (BLK) and red (RED)) to the SPI
IN (TB1) terminals.
3. You can use the SPI EXP of the 1
group of output modules (KT-MOD-REL8 and KT-MOD-
OUT16 only).
4. Connect the 6-pin SPI connector from the SPI OUT to the
next KT-MOD-INP16 module.
5. Complete all zone wiring to the zone input terminals (Z1-Z16).
KT-MOD-INP16
st
KT-MOD-INP16 to start a
DN1776-1911
