Preaction Valve
Model A, 3 Inch (DN80)
With Double Interlock
Electric/Pneumatic Release Trim
GENERAL DESCRIPTION
The Star 3 inch (DN80) Model A Preaction Valve with
Double Interlock Electric/Pneumatic Release Trim is de-
signed for use in applications, such as refrigerated areas,
requiring the maximum degree of protection against inad-
vertent flooding of the sprinkler system piping. In order for
the Model A Preaction Valve to automatically actuate and
permit water to enter the sprinkler system piping, two in-
dependent events must occur — the electric fire detection
system must respond to a fire condition and one or more
automatic sprinklers must operate.
The Model A Preaction Valve features a double seat de-
sign eliminating the use of a separate air check valve in
the system riser. Also, the Model A Preaction Valve has
been designed to operate without prime water, conse-
quently eliminating yet another additional check valve in
the system riser for refrigerated area systems.
In the case of the electric/pneumatic release of the Model
A Preaction Valve, the releasing trim consisting of both a
Solenoid Valve (electrically operated releasing valve) and
a Dry Pilot Actuator (air operated releasing valve) in a se-
FIRE
DETECTION
INITIATING
CIRCUIT
AUDIBLE
ALARM
CIRCUIT
RELEASING
PANEL
WITH 24 VDC
BATTERY
BACK-UP
120 VAC

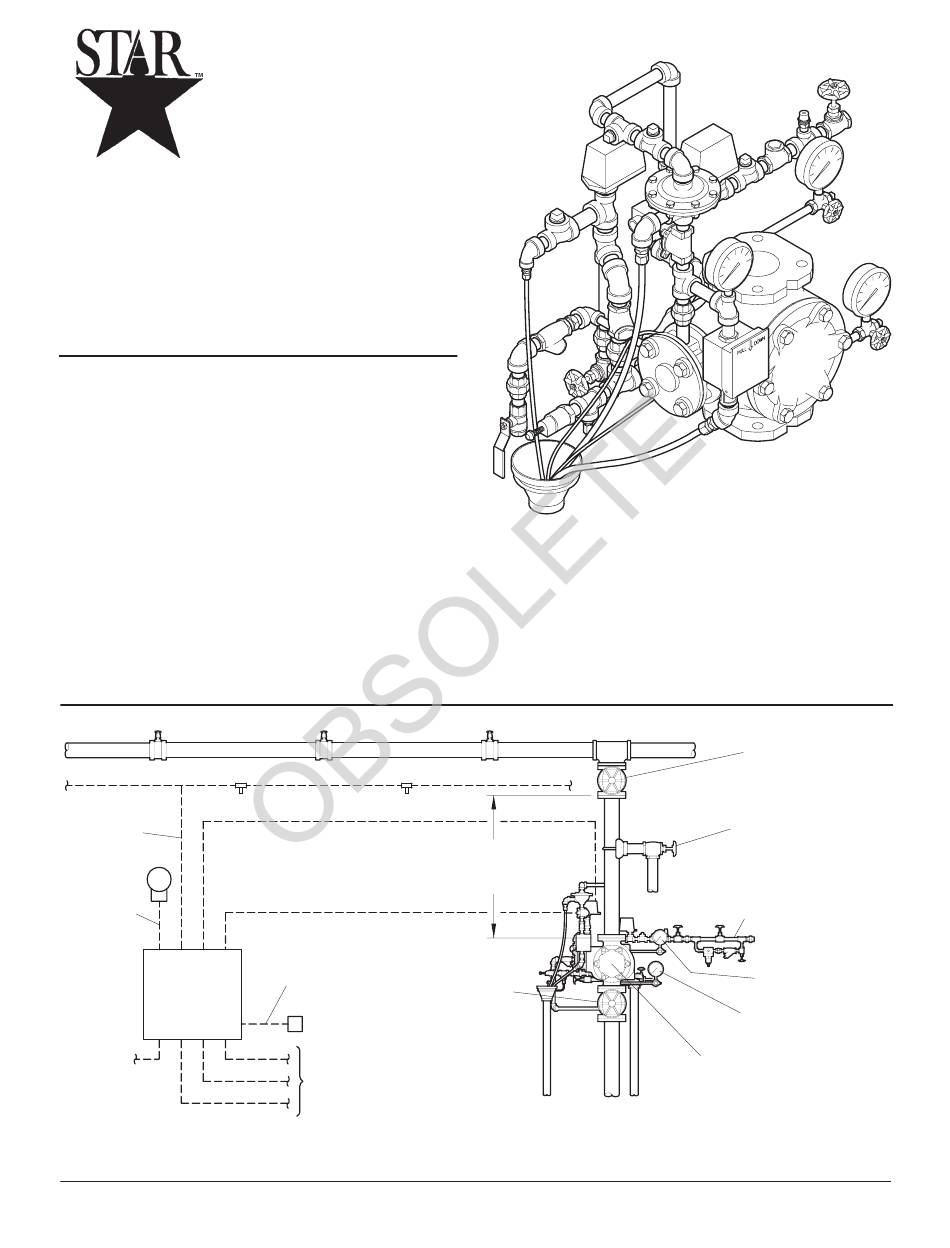

GENERAL ARRANGEMENT FOR ELECTRIC/PNEUMATIC DOUBLE INTERLOCK PREACTION SYSTEM
STAR SPRINKLER INC.
414-570-5000 • 800-558-5236 • FAX 414-570-5010
AUTOMATIC SPRINKLERS
ELECTRIC DETECTION
WATERFLOW ALARM
INITIATING CIRCUIT
24 VDC SOLENOID VALVE
RELEASING CIRCUIT
ELECTRIC
MANUAL PULL
SYSTEM MAIN
INITIATING
CONTROL VALVE
CIRCUIT
(SUPERVISED
SUPERVISORY ALARM
INITIATING CIRCUITS:
-
LOW AIR
-
SYSTEM SHUT-OFF VALVE
-
SYSTEM MAIN CONTROL VALVE
www.starsprinkler.com
ries configuration is utilized. The double seat design of
the Model A Preaction Valve isolates the system air pres-
sure, which holds the Dry Pilot Actuator closed. The Sole-
noid Valve remains closed until it is electrically energized
by a releasing panel that is operated by either an electric
fire detection device or electric manual pull station.
As an option for water supplies of 35 psi (2.4 bar) or
more, the Model A Preaction Valve may be equipped with
2 FEET
(609.6 mm)
MINIMUM
OPEN)
WATER SUPPLY
FIGURE 1
#3000 Valve, F x F
#3008 Trim
SYSTEM
SHUT-OFF VALVE
(SUPERVISED
OPEN)
SYSTEM TRIP
TEST FLOW VALVE
MODEL S460 AIR
MAINTENANCE DEVICE
(OR REFRIGERATED SPACE
AIR SUPPLY PER NFPA 13)
SYSTEM AIR
PRESSURE
SUPPLY WATER
PRESSURE
MODEL A PREACTION VALVE
WITH DOUBLE INTERLOCK
ELECTRIC/PNEUMATIC
RELEASE TRIM
2-4.1.10
6-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAR Model A and is the answer not in the manual?

Questions and answers

Summary of Contents for Tyco STAR Model A

  • Page 1 Preaction Valve Model A, 3 Inch (DN80) With Double Interlock Electric/Pneumatic Release Trim GENERAL DESCRIPTION The Star 3 inch (DN80) Model A Preaction Valve with Double Interlock Electric/Pneumatic Release Trim is de- signed for use in applications, such as refrigerated areas, requiring the maximum degree of protection against inad- vertent flooding of the sprinkler system piping.
  • Page 2 STAR SPRINKLER INC. 2-4.1.10 Page 2 NO. DESCRIPTION ..QTY. PART Valve Body & Seat Assembly ..1 Body ..1 Seat Ring* .
  • Page 3 2-4.1.10 STAR SPRINKLER INC. Page 3 PORT IDENTIFICATION LOCATED ON BACK OF DESCRIPTION RESTRICTOR VALVE ASSEMBLY 1-1/2 MAIN DRAIN WATER SUPPLY PRESSURE AIR SUPPLY NEUTRAL ALARM PORT CHAMBER DIFFERENTIAL CHAMBER SUPPLY RELEASING DEVICES DIFFERENTIAL DIFFERENTIAL CHAMBER VENT VALVE PLUNGER LOW BODY DRAIN ASSEMBLY TO SYSTEM DIFFERENTIAL...
  • Page 4: Technical Data

    STAR SPRINKLER INC. 2-4.1.10 Page 4 the Model S430 Accelerator, to provide a reduction in the time to operate the Model A Preaction Valve following the operation of one or more automatic sprinklers. WARNING The Model A Preaction Valve with Double Interlock Elec- tric/Pneumatic Release Trim described herein must be in- stalled and maintained in compliance with this document, as well as with the applicable standards of the National...
  • Page 5: Design Criteria

    2-4.1.10 STAR SPRINKLER INC. Page 5 reduction in the time for the Dry Pilot Actuator to open fol- tions are faced and drilled per ANSI Standard B16.1, un- lowing the operation of one or more automatic sprinklers. less otherwise specified when ordered. With the optional Double Interlock Accelerator Trim In order to readily perform the System Inspection Proce- (Fig.
  • Page 6 STAR SPRINKLER INC. 2-4.1.10 Page 6 NOTES: 1. SEE FIGURE 3 FOR PORT IDENTIFICATION. PORT "07" MUST VENT TO ATMOSPHERE FOR PROPER VALVE OPERATION. ROUTE ALL TUBING, ITEMS 25, 26, 28 & 29, TO DRIP FUNNEL, ITEM 22. LOCATION FOR OPTIONAL ELECTRICALLY SUPERVISED N.O.
  • Page 7 2-4.1.10 STAR SPRINKLER INC. Page 7 1/2 INCH NPT 1/2 INCH NPT LOW AIR CONNECTIONS CONNECTION PRESSURE FOR OPTIONAL FOR OPTIONAL AIR SUPPLY ALARM ACCELERATOR TRIM PRIMING TRIM WATERFLOW CONTROL VALVE 15° SWITCH (SEE FIGURE 8) (SEE FIGURE 9) PRESSURE (NORMALLY ALARM SWITCH OPEN)
  • Page 8: Setting Procedure

    STAR SPRINKLER INC. 2-4.1.10 Page 8 ACCELERATOR PRIMING DISCARD THIS NIPPLE PRESSURE & INSTALL 1/2 INCH NPT GAUGE 1/2 INCH NPT PLUGS IN ELBOWS PRIMING ACCELERATOR VALVE ACCELERATOR CONNECTION (NORMALLY CONTROL VALVE TO SYSTEM, CLOSED) DISCARD (NORMALLY REFER TO PLUGS OPEN) INSTALLATION STEP 6...
  • Page 9 2-4.1.10 STAR SPRINKLER INC. Page 9 10-1/4" 6-1/8" 17-7/8" 16-3/4" (260.4 mm) (155.6 mm) (454.0 mm) (425.5 mm) 26-3/8" (669.9 mm) 14-3/4" (374.7 mm) WHEN MODEL S430 ACCELERATOR IS USED 12-1/8" MAIN (308.0 mm) CONTROL VALVE DIFFERENTIAL CHAMBER SUPPLY (FIELD FABRICATED) FIGURE 10 3 INCH (DN80) MODEL A PREACTION VALVE AND TRIM INSTALLATION DIMENSIONS ELECTRIC/PNEUMATIC DOUBLE INTERLOCK PREACTION SYSTEM...
  • Page 10: Maintenance And Service

    STAR SPRINKLER INC. 2-4.1.10 Page 10 System Air Time to 10 psi, sec. b. Slowly remove the plug from the Strainer at the Ac- Pressure, psi Minimum Maximum celerator inlet to relieve any inlet pressure. This pro- cedure will trip the Accelerator if it is not already tripped.
  • Page 11 2-4.1.10 STAR SPRINKLER INC. Page 11 This procedure is used to verify that the Model A Preaction SERVICE RECOMMENDATIONS Valve will remain set if the electric detection system operates but the sprinkler system remains in its normally pressurized Drop In Water Supply Pressure Below Normal Range condition.
  • Page 12: Ordering Procedure

    STAR SPRINKLER INC. 2-4.1.10 Page 12 HOUSING IS Pin (29 - Fig. 2) must be utilized to complete the installa- SUPPORTED tion. BY STUD Adjustment of the Differential Valve Plunger Assembly is BOLTS accomplished by varying the thread engagement be- tween the Plunger Nose and the Plunger.
