Technical Services: Tel: (800) 381-9312 / Fax: (800) 791-5500

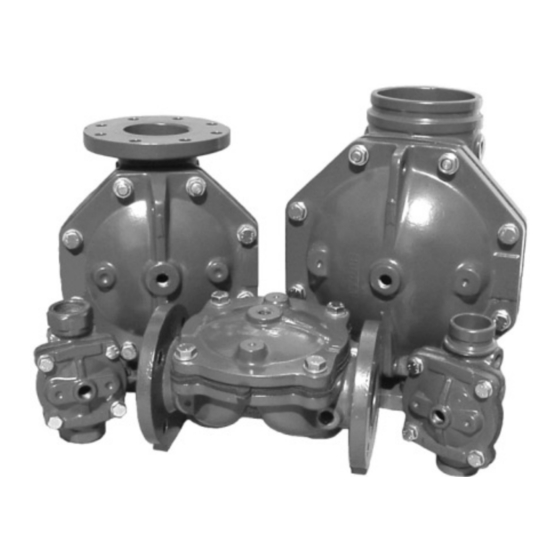

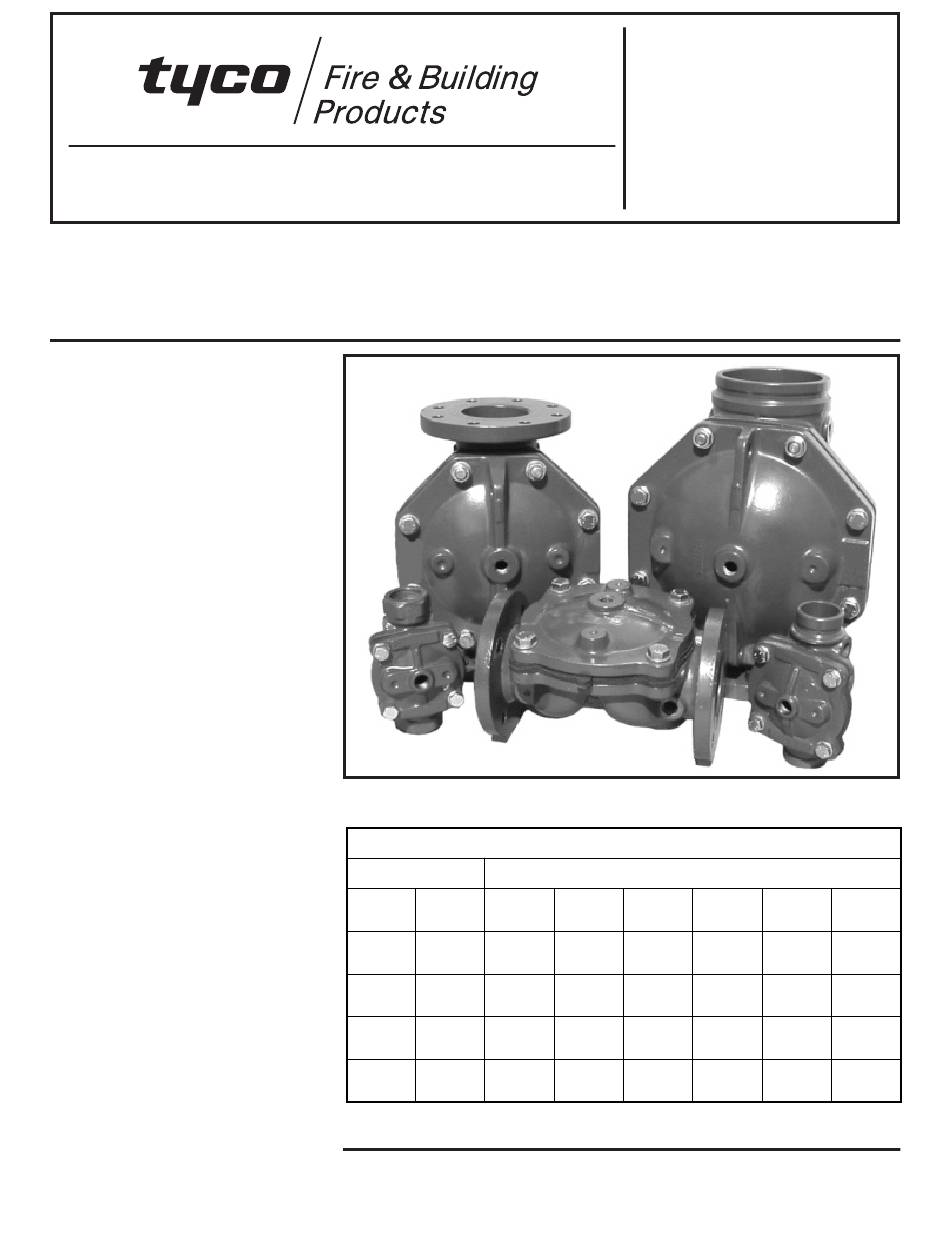

Model DV-5 Deluge Valve, Diaphragm Style
DN40 thru DN200, Vertical Installation, 16 Bar
VdS/LPCB European Conformity Valve Trim
General
Description
The DN40 thru DN200, Model DV-5
Deluge Valves are diaphragm type
valves used as "automatic water con-
trol valves" in deluge fire protection
systems. When properly trimmed, the
DV-5 Valves are also able to provide
actuation of fire alarms upon system
operation.
The diaphragm style design of the
DV-5 Valve allows external resetting
— providing for easy resetting of a
deluge system without having to open
a valve handhole cover to manually
reposition a clapper and/or latch
mechanism. Simply re-pressurizing
the diaphragm chamber resets the
valve.
The DV-5 also features internal and
external coating of the valve to pro-
vide corrosion resistance. The exter-
nal corrosion resistance of the Rilsan
coating permits the use of the DV-5
in corrosive atmospheres associated
with many types of industrial process-
ing plants and outdoor installations.
WARNING
The Model DV-5 Deluge Valves de-
scribed herein must be installed and
maintained in compliance with this
document, as well as with the appli-
cable standards of the Approval agen-
cy, in addition to the standards of any
other authorities having jurisdiction.
Failure to do so may impair the per-
formance of these devices.
The owner is responsible for maintain-
ing their fire protection system and de
vices in proper operating condition.
The installing contractor or manufac-
turer should be contacted with to any
questions.
Page  of 28
End Connections Available and Weights
End Connection
Inlet
Outlet
DN40
4,1 kg
Thread
Thread
3,6 kg
Groove
Groove
Flange
Groove
N/A
Flange
Flange
N/A
JUNE, 2007
Nominal Valve Size
DN50
DN80
DN100
5,4 kg
N/A
N/A
4,5 kg
14,1 kg
27,7 kg
17,7 kg
33,6 kg
N/A
21,3 kg
36,3 kg
N/A
DN150
DN200
N/A
N/A
44,9 kg
68,1 kg
48,5 kg
77,8 kg
52,3 kg
87,5 kg
TFP338

Advertisement

loading

Summary of Contents for Tyco DV-5

  • Page 1 Deluge Valves are diaphragm type valves used as “automatic water con- trol valves” in deluge fire protection systems. When properly trimmed, the DV-5 Valves are also able to provide actuation of fire alarms upon system operation. The diaphragm style design of the DV-5 Valve allows external resetting —...
  • Page 2 23,0 295,0 23,0 292,0 22,0 Flange end DN40 & DN50 DV-5 Valves are not offered. Dim. A Bolt Circle Same drilling as for B16.5 (Class 150) and B16.42 (Class 250). Diameter Same drilling as for BS 4504 Section 3.2 (PN10) and DIN 2532 (PN10).
  • Page 3: Technical Data

    220 mm the system’s stop valve. Opening an Model DV-5 Deluge Valves are shown actuation device, for example the so- in Figure 1. The DV-5 Valves are for lenoid valve in the Electric Actuation vertical installations. They are rated DN50 Trim (Ref.
  • Page 4 CHAMBER VALVE OPEN TO WATERWAY ATMOSPHERE USED WATER SUPPLY SHUT OFF WATER SUPPLY SHUT OFF FIGURE 3C FIGURE 3D SYSTEM DRAIN POSITION RESIDUAL DRAIN POSITION FIGuRe 3 dN40 thru dN200 model dv-5 deluGe vAlve — set ANd opeN posItIoNs —...
  • Page 5 TFP338 Page  of 28 0,60 0,50 0,40 0,30 0,20 0,10 0,09 0,08 0,07 0,06 0,05 0,04 0,03 0,02 1000 2000 3000 5000 7000 10000 15000 FLOW RATE IN LITRES PER MINUTE (LPM) GRAph A dN40 thru dN200 modeldv-5 deluGe vAlve —...
  • Page 6 The Wet Pilot Actuation Trim forms a part of the laboratory approval of the Notes DV-5 Valves and is necessary for their Wet Pilot Lines must be maintained at proper operation. a minimum temperature of 4°C. The Wet Pilot Actuation Trim provides...
  • Page 7 3,1 bar; devices, as appropriate. DV-5 Valves and is necessary for their however, it may be field adjusted to a proper operation. • Model AMD-1 Air Maintenance De- lower pressure, if required.
  • Page 8 Chamber from becoming re-pressur- valve trim (P/N 52-287-1-124 described ized, and preventing an inadvertent in TFP2180) is rated as follows: closing of the DV-5 during a fire event. • Pressure: 17,2 bar • Voltage: 24 VDC • Power Consumption: 22 Watts •...
  • Page 9 It is recommended that an AMD-3 Nitro- gen Maintenance Device be utilized in GRAph b dry pilot actuation system applications dN40 thru dN200 model dv-5 deluGe vAlve where the dew point must be maintained dRy pIlot lINe pRessuRe RequIRemeNts below -29°C. See Technical Data Sheet TFP1241.
  • Page 10: Installation

    Step 10. The Pressure Relief Valve pro- vided with the Dry Pilot Actuation Trim The DV-5 Valve must be installed in a is factory set to relieve at a pressure of readily visible and accessible location. approximately 3,1 bar, which can typi-...
  • Page 11 AP60D4; pipe nipple; stainless steel 316; 1/2" x 60 mm ..WS00000096; Nickel pl copper tube; 15 x 1mm for DV-5 ..AP80E4; pipe nipple; stainless steel 316; 3/4" x 80 mm .
  • Page 12 ..AP60D4; pipe nipple; stainless steel 316; 1/2" x 60 mm ..WS00000096; Nickel pl copper tube; 15 x 1mm for DV-5 ..FIGuRe 8...
  • Page 13 AP60D4; pipe nipple; stainless steel 316; 1/2" x 60 mm ..WS00000096; Nickel pl copper tube; 15 x 1mm for DV-5 ..AP80E4; pipe nipple; stainless steel 316; 3/4" x 80 mm .
  • Page 14 AP300D4; pipe nipple; stainless steel 316; 1/2" x 300 mm ..WS00000096; Nickel pl copper tube; 15 x 1mm for DV-5 ..AP60D4; pipe nipple; stainless steel 316; 1/2" x 60 mm .
  • Page 15 ..AP180D4; pipe nipple; stainless steel 316; 1/2" x 180 mm ..WS00000096; Nickel pl copper tube; 15 x 1mm for DV-5 ..FIGuRe 11...
  • Page 16 AP140D4; pipe nipple; stainless steel 316; 1/2" x 140 mm ..WS00000096; Nickel pl copper tube; 15 x 1mm for DV-5 ..AP300D4; pipe nipple; stainless steel 316; 1/2" x 300 mm .
  • Page 17 ..AP300D4; pipe nipple; stainless steel 316; 1/2" x 300 mm ..WS00000096; Nickel pl copper tube; 15 x 1mm for DV-5 ..FIGuRe 13...
  • Page 18 ..AP120D4; pipe nipple; stainless steel 316; 1/2" x 120 mm ..WS00000096; Nickel pl copper tube; 15 x 1mm for DV-5 ..FIGuRe 14...
  • Page 19 ..AP300D4; pipe nipple; stainless steel 316; 1/2" x 300 mm ..WS00000096; Nickel pl copper tube; 15 x 1mm for DV-5 ..FIGuRe 15...
  • Page 20 AP140D4; pipe nipple; stainless steel 316; 1/2" x 140 mm ..WS00000096; Nickel pl copper tube; 15 x 1mm for DV-5 ..AP300D4; pipe nipple; stainless steel 316; 1/2" x 300 mm .
  • Page 21 ..AP80E4; pipe nipple; stainless steel 316; 3/4" x 80 mm ..WS00000096; Nickel pl copper tube; 15 x 1mm for DV-5 ..FIGuRe 17...
  • Page 22 AP120D4; pipe nipple; stainless steel 316; 1/2" x 120 mm ..WS00000096; Nickel pl copper tube; 15 x 1mm for DV-5 ..AP300D4; pipe nipple; stainless steel 316; 1/2" x 300 mm .
  • Page 23 If a drop in pressure is noted, the DV- Automatic Drain Valve (F) to verify that 5 Diaphragm is to be replaced and/or it is open and that the DV-5 Valve is any leaks must be corrected before completely drained.
  • Page 24: Care And Maintenance

    Operation Test Procedure ment must be immediately corrected. within the normally expected range. Proper operation of the DV-5 Valve (i.e., opening of the DV-5 Valve as dur- Step 2. If the diaphragm chamber Note ing a fire condition) must be verified as...
  • Page 25 Step 2. Open the Alarm Test Valve (G) Step 7. Allow the Dry Pilot Line to au- Step 3. Verify that the DV-5 Valve has tomatically repressurize. and the System Drain Valve (E). tripped, as indicated by the flow of wa- Step 8.
  • Page 26: Limited Warranty

    Dry Pilot Actuation DN100 trim only. Dimension applies to DN150 all trims. DN200 DN15 DIAPHRAGM CHAMBER SUPPLY CONNECTING TRIM STOP (FIELD FABRICATED) VALVE FRONT VIEW RIGHT VIEW FIGuRe 19 dN40 thru dN200 model dv-5 deluGe vAlve — INstAllAtIoN dImeNsIoNs —...
  • Page 27: Ordering Procedure

    TFP338 Page 27 of 28 Ordering Procedure Model DV-5 Deluge Valve with Assembled VdS/LPCB European Conformity Valve Trim Specify: Fully Assembled Model DV-5 Deluge Valve with VdS/LPCB European Conformity Valve Trim, P/N (Table C). Accessories Specify: (“description”) and P/N. • “Supervisory Switch” for water motor alarm control valve, P/N CEDPV1ASS.
  • Page 28 Page 28 of 28 TFP338 TYCO FIRE & BUILDING PRODUCTS, 451 North Cannon Avenue, Lansdale Pennsylvania 19446...
  • Page 29 Drain Valve (F) to verify that the Automatic Drain Valve (F) for leaks. • The Diaphragm Gauge (K) is equal it is open and that the DV-5 Valve is If there are no leaks, the DV-5 Valve is to or greater than the Water Supply completely drained.
  • Page 30 Automatic Drain Valve (F) for leaks. • The System Gauge (L) reads zero. ry drains in the system. Close the aux- If there are no leaks, the DV-5 Valve is • The Diaphragm Gauge (K) is equal iliary drain valves after water ceases to...
  • Page 31 Automatic Drain Valve (F) for leaks. closed. Valve (P). If there are no leaks, the DV-5 Valve is • The Diaphragm Supply Valve (P) and Step 3. Open the Alarm Test Valve (G), ready to be placed in service and the Alarm Control Valve (H) are open.
