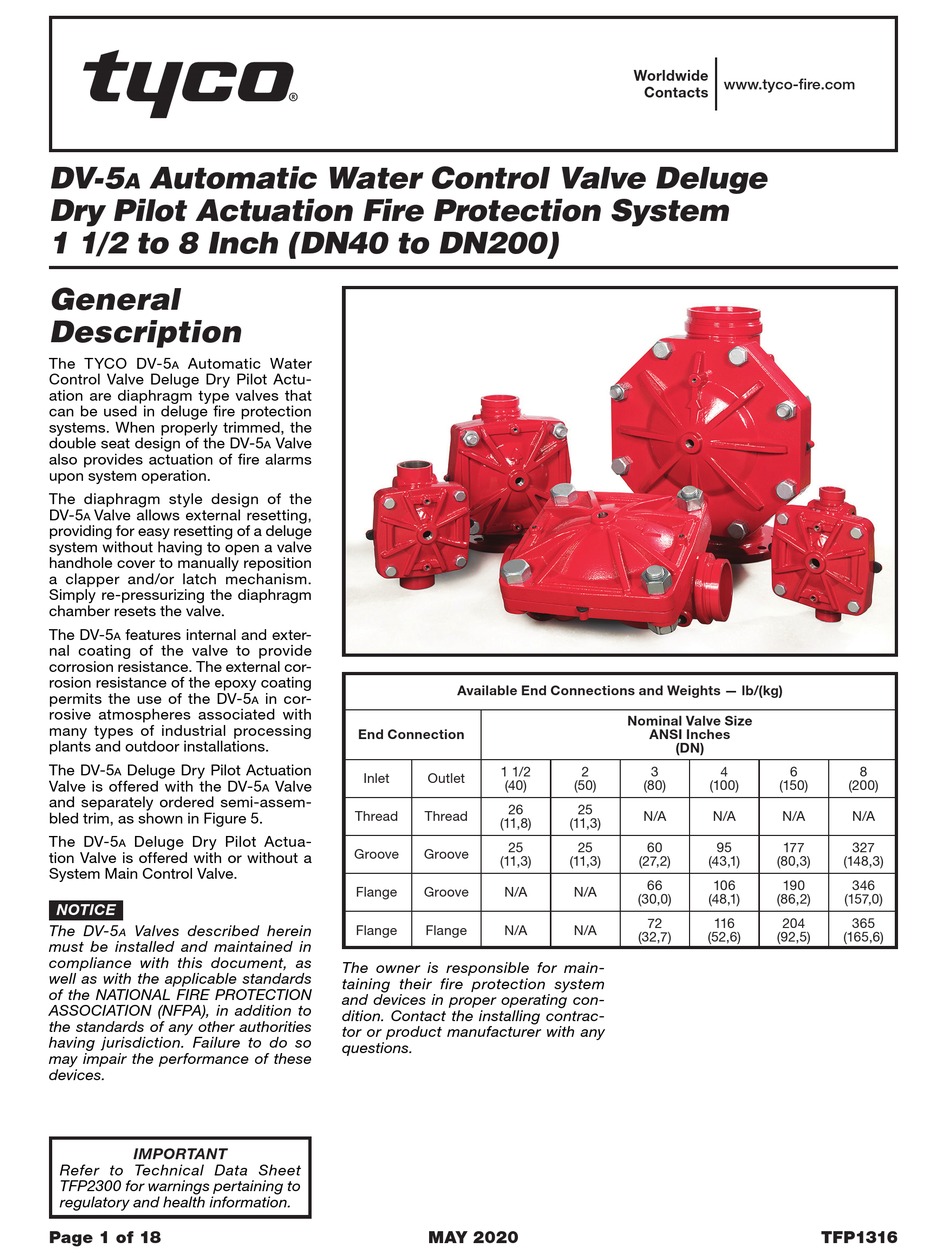

Tyco DV-5a Manual

DV-5 Automatic Water Control Valve Deluge
a
Dry Pilot Actuation Fire Protection System
1 1/2 to 8 Inch (DN40 to DN200)
General
Description
The TYCO DV-5 Automatic Water
a
Control Valve Deluge Dry Pilot Actu-
ation are diaphragm type valves that
can be used in deluge fire protection
systems. When properly trimmed, the
double seat design of the DV-5
also provides actuation of fire alarms
upon system operation.
The diaphragm style design of the
DV-5 Valve allows external resetting,
a
providing for easy resetting of a deluge
system without having to open a valve
handhole cover to manually reposition
a clapper and/or latch mechanism.
Simply re-pressurizing the diaphragm
chamber resets the valve.
The DV-5 features internal and exter-
a
nal coating of the valve to provide
corrosion resistance. The external cor-
rosion resistance of the epoxy coating
permits the use of the DV-5
rosive atmospheres associated with
many types of industrial processing
plants and outdoor installations.
The DV-5 Deluge Dry Pilot Actuation
a
Valve is offered with the DV-5
and separately ordered semi-assem-
bled trim, as shown in Figure 5.
The DV-5 Deluge Dry Pilot Actua-
a
tion Valve is offered with or without a
System Main Control Valve.
NOTICE
The DV-5 Valves described herein
a
must be installed and maintained in
compliance with this document, as
well as with the applicable standards
of the NATIONAL FIRE PROTECTION
ASSOCIATION (NFPA), in addition to
the standards of any other authorities
having jurisdiction. Failure to do so
may impair the performance of these
devices.
IMPORTANT
Refer to Technical Data Sheet
TFP2300 for warnings pertaining to
regulatory and health information.
Page 1 of 18
Valve
a
in cor-
a
End Connection
Inlet Outlet
Valve
a
Thread Thread
Groove Groove
Flange Groove
Flange Flange
The owner is responsible for main-
taining their fire protection system
and devices in proper operating con-
dition. Contact the installing contrac-
tor or product manufacturer with any
questions.
MAY 2020
Worldwide
Available End Connections and Weights — lb/(kg)
Nominal Valve Size
1 1/2 2
(40) (50)
26 25
(11,8) (11,3)
25 25
(11,3) (11,3)
N/A N/A
N/A N/A
www.tyco-fire.com
Contacts
ANSI Inches
(DN)
3 4 6
(80) (100) (150)
N/A N/A N/A
60 95 177
(27,2) (43,1) (80,3)
66 106 190
(30,0) (48,1) (86,2)
72 116 204
(32,7) (52,6) (92,5)
8
(200)
N/A
327
(148,3)
346
(157,0)
365
(165,6)
TFP1316
