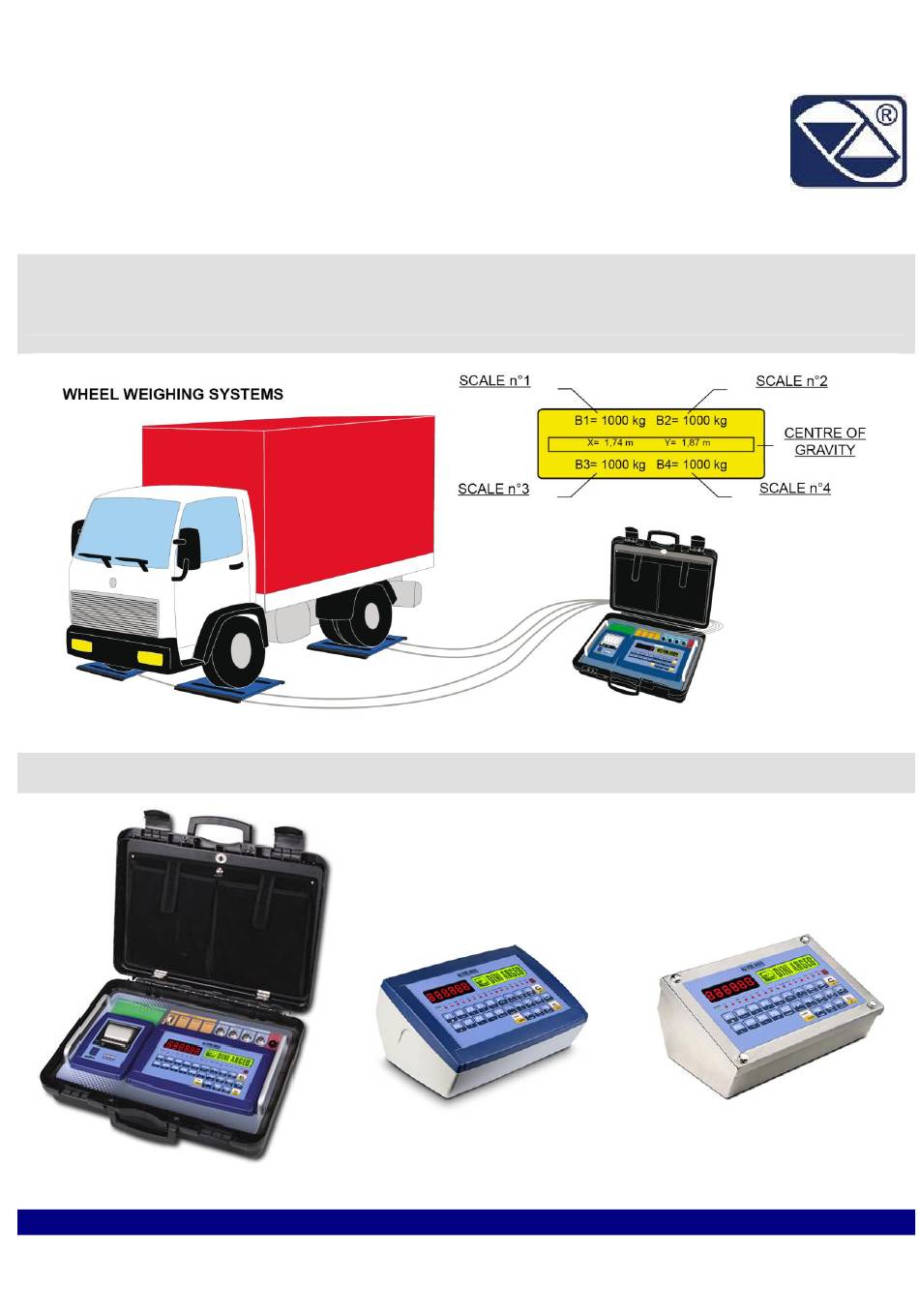

USER MANUAL
WEIGHT INDICATOR
E-AF08: PROGRAM VERSION FOR
WHEEL AND AXLE WEIGHING
3590EKR, 3590EXP, 3590EXT series indicator
E-AF08_02_13.07_EN_U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3590EKR Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dini Argeo 3590EKR Series

Summary of Contents for Dini Argeo 3590EKR Series

  • Page 1 USER MANUAL WEIGHT INDICATOR E-AF08: PROGRAM VERSION FOR WHEEL AND AXLE WEIGHING 3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U...

  • Page 2: Table Of Contents

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U INDEX 1. INTRODUCTION ................................. 4 2. MAIN TECHNICAL SPECIFICATIONS ..........................5 2.1 ACCESSORIES AVAILABLE ............................6 2.2 SYMBOLS USED ................................. 6 3. INSTALLATION .................................. 7 3.1 CASE AND DIMENSIONS ............................7 3.2 POWER SUPPLY & START UP ........................... 9 3.3 START UP ..................................
  • Page 3 3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 11.7 ALPHABETICAL RESEARCH ..........................29 11.8 HELP ..................................29 12. DATABASE ACCESS PASSWORD ..........................29 13. WEIGHING AND TOTALISATION PROCEDURES ......................29 13.1 TOTALISATION TYPES ............................29 13.2 “WHEEL WEIGH” TOTALISATION TYPE ........................ 30 13.2.1 UPDATING TOTALS .............................

  • Page 4: Introduction

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 1. INTRODUCTION This manual was created to help you install and learn all about the functional possibilities of the purchased indicator. The instrument is suitable for use in various weighing environments. Not only does it have all the normal features of high-precision scales, but it also gives you the possibility to work in specific environments due to the functioning modes contained in the software implemented in the FLASH MEMORY on the internal board;...

  • Page 5: Main Technical Specifications

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U NOTE FOR THE USER The message (TECH.MAN.REF.), will often appear in this manual; this refers to the Technical Manual, which may obtained by the reseller. 2. MAIN TECHNICAL SPECIFICATIONS POWER SUPPLY - 12 Vdc ( 8 ÷ 24 Vdc in the IO versions), with internal or external 100 ÷ 240 Vac (50÷60 Hz) / 12 Vdc adapter, depending on the model.

  • Page 6: Accessories Available

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 2.1 ACCESSORIES AVAILABLE On the indicator it is possible to implement internal and external modules used to increase interfacing possibilities.(For example, the number of usable outputs various types of printers, in order to have a report of the weighs made, or a giant display in order to better see the weigh operations.

  • Page 7: Installation

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 3. INSTALLATION 3.1 CASE AND DIMENSIONS ABS MODEL The indicator has an IP65 ABS case, whose external dimensions are shown in the Figure. It can be simply put on a table or fixed to a shelf or column available on request. NOTE: If the identification plate is supplied separately (therefore not attached to the indicator), it is advisable to attach it to the indicator, in order to be able to identify the instrument.
  • Page 8 3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U STAINLESS STEEL MODEL The indicator has an STAINLESS STEEL case, whose external dimensions are shown in the Figure 3. It can be simply put on a table or fixed to a shelf or column available on request. NOTE: If the identification plate is supplied separately (therefore not attached to the indicator), it is advisable to attach it to the indicator, in order to be able to identify the instrument.

  • Page 9: Power Supply & Start Up

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 3.2 POWER SUPPLY & START UP - The 3590EXP and 3590EXT indicator is powered with 12Vdc voltage (8 ÷ 24 Vdc in the IO version), through an internal ÷ adapter which converts the 100 240Vac, 50÷60Hz mains voltage, and 6 Vdc, from the battery (fitted depending on the model).

  • Page 10: Turning Off The Instrument

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 3.4 TURNING OFF THE INSTRUMENT TO TURN OFF the instrument keep the C key pressed until the “- OFF -“ message appears on the LED display and “ *** POWER OFF *** ” on the LCD display. 3.5 TURNING ON PRINTER IN ENERGY SAVING MODE Premise: the SEtuP >>...
  • Page 11 3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U - If pressed together with the other keys, it allows carrying out a specific function. (see section “"2ndF" KEY: SECOND FUNCTION OF THE KEYS”). 2nd F - In the << F.Keys >> step, if pressed for an instant, the list of the available functions appear and it is possible to choose one of them.

  • Page 12: 2Ndf" Key: Second Function Of The Keys

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 4.1.1 "2ndF" KEY: SECOND FUNCTION OF THE KEYS In the weighing phase, by pressing the 2ndF key together with another key, it’s possible to execute various functions (continue reading the manual for the details of the functions): 2ndF Allows to select the number of active scales.

  • Page 13: Disabling The Keyboard

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U Function of the keys Switches the writing mode from “numeric” (nuM) to “characters” (ChAr). In the nuM mode one enters just the numbers, while in the ChAr mode one can enter all the characters of a key.

  • Page 14: Indicator Connected To Pc Keyboard

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 4.1.5 INDICATOR CONNECTED TO PC KEYBOARD It’s possible to connect a PC keyboard (optional), used to emulate the functions of the keys of the indicator. The keys are managed in the following way: KEYBOARD KEY OR FUNCTION EMULATED -C key.
  • Page 15 3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 4.1.6.1 “19-KEY” INFRARED REMOTE CONTROL With this type of remote control, the functioning of the keys will be as described in the following table. FUNCTION OF THE KEYS KEYBOARD KEY OR FUNCTION EMULATED F1…F3 F1…F3 keys C key NUMERIC KEYS...
  • Page 16 3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U - select the desired key that should be simulated by using the  arrow keys and press the PRINT /  key to confirm and pass to the following setting; - the configuration of the numeric key is proposed: ir.numb ●...

  • Page 17: Function Display

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 4.2 FUNCTION DISPLAY During the weighing the displays are subdivided mainly in 3 sections, shown in the figure below: 1) SUM WEIGHT / SELECTED SCALE WEIGHT (see section “SCALE MANAGEMENT”) 2) STATUS INDICATORS (led pilot lights and graphic symbols) 3) SCALES’...
  • Page 18 3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U SYMBOLS’ FUNCTIONS ON THE LCD DISPLAY SYMBOL FUNCTION Indicates the type of active totalisation (see section “WEIGHING AND TOTALISATION PROCEDURES”). The weight detected by the weighing system is near the zero, included within the interval of –1/4 and +1/4 of the scale division.

  • Page 19: Battery Level Indication

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 4.2.2 BATTERY LEVEL INDICATION The indicator is able to recognise whether it is powered by mains or by battery, and indicate its charge level; to enable the battery level indication, one should configure the << bt.StAt >> step (TECH.MAN.REF.). The charge level is shown during weighing by the battery symbol.

  • Page 20: Displayed Data

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 4.2.4 DISPLAYED DATA The data is displayed on up to three lines; their visualisation depends on the weighing type and the number of active scales. By pressing in sequence the 2nd F and F9 keys, one will scroll through the following visualisations in this order: VISUALIZATION WHEEL WEIGHING AXLE WEIGHING...

  • Page 21: Customizable Display

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 4.2.5 CUSTOMIZABLE DISPLAY It’s possible to customize the data displayed on the LCD display, through the print format 99 (see the section “DISPLAY CUSTOMIZATION”, TECH.MAN.REF.), by using the DiniTools software. ™ By pressing in sequence the Fn and F9 keys, it’s possible to activate the customized visualization. The default configuration for this visualization is the following one: ITM.

  • Page 22: Sum" Function

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U It’s also possible to switch from one selection to the next one by pressing two times in sequence the 2ndF key. The selected scale, is highlighted on the LCD display of the instrument: 1000 S2: 1000 V.TOT.

  • Page 23: Sum Of The Selected Scales

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 5.5 SUM OF THE SELECTED SCALES The instrument allows to display the sum of the scales that one wants. Through this function it’s possible to insert the combination of scales, of which the sum will be displayed on the LCD display. EXAMPLE: if one has a system of 8 platforms, and one wants to display the sum of scales 1 and 2 (front axle) - Press keys 1 and 2 one after the other - Press the F7 key...

  • Page 24: Semiautomatic Tare

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 7.1.1 SEMIAUTOMATIC TARE By pressing the TARE key one tares any weight which is on the scales; the LED display shows “tArE” for an instant and then 0 (net weight); the NET and T LED turn on; the stored tare value is shown on the LCD display, see section “DISPLAYED DATA”.

  • Page 25: Locked/Unlocked/Disabled Tare

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 7.5 LOCKED/UNLOCKED/DISABLED TARE Normally, when a tare value is inserted, this value remains stored also after the printing and resetting of the partial total (LOCKED TARE); therefore it remains active also for the following weighs. It is possible to choose that the tare value cancels itself automatically with each partial total printout (UNLOCKED TARE).

  • Page 26: Filling In The Input Text

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U To display the metric data: Press in sequence the 2ndF and C keys The “METROLOGIC INFORMATION” is displayed the display will show the number of the scale, the type of displayed data and its value. Press the F6 key to quickly scroll the data frontwards Press the F7 key to quickly scroll the previous data backwards.

  • Page 27: Database

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 11. DATABASE The indicator has a database with 1000 items having each five descriptions of 20 characters; each item is linked to a storage number, from 0 to 999. The selected item is shown on the LCD display during the weighing operations (see section “DISPLAYED DATA”), and can be printed through the relative print block.

  • Page 28: Cancellation Of Data

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 11.3 CANCELLATION OF DATA 1) Press the F1 key to enter data in the database. 2) Select the data to be cancelled: by using the arrow keys   by typing the storage item nr. with the keyboard (the LCD display shows the first corresponding DESCRIPTION line).

  • Page 29: Entry, Modification And Quick Selection Of Item 000

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 11.6 ENTRY, MODIFICATION AND QUICK SELECTION OF ITEM 000 It’s possible to quickly enter or modify a temporary memory storage in order to avoid the filling in of the database: 1) Press in sequence the 0 (NUMERIC) and F1. 2) The indicator allows directly filling in the memory storage 000;...

  • Page 30: Wheel Weigh" Totalisation Type

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U AXLE WEIGHING: functioning mode which allows to weigh a vehicle through the acquisition and totalisation of each single axle. While weighing, the instrument simultaneously shows the weight of the single scales and the accmulated axle total. In both functioning modes, the weight of each vehicle can be printed and stored, for subsequent verifications.

  • Page 31: Axle Weigh" Totalisation Type

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U EXAMPLE: to calculate the barycentre of a 4-wheel vehicle with a weighing system having the scales arranged as shown in the figure below, one must position the vehicle on the scales, press the F2 key and enter the following parameters: (INTER AXLE) SCALE 2 SCALE 3...

  • Page 32: Updating Totals

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 8) Repeat operations 5, 6, and 7 for all the remaining axles. 9) Press the F8 key: the “ZEROS TOTAL PARTIAL” message is displayed on the LCD display: press ENTER for printing, and reset the total weight of the vehicle (obtained from the sum of the axles) or press the C key for exiting without changes.

  • Page 33: Set Totalisation Threshold

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 13.4 SET TOTALISATION THRESHOLD It is possible to establish a weight interval (in between 0 and the scale capacity) for executing a weigh; outside this interval, the operation is not accepted (when the F6 key is pressed the LCD display shows the “WEIGHT OUT OF THRESHOLD” message for a few seconds.

  • Page 34: Progressives

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 13.7 PROGRESSIVES 13.7.1 PROGRESSIVE DIGITS Through function 401, combinable with the desired key (<< F.KEYS >> step, TECH.MAN.REF.), it’s possible to set the number of digits with which the TICKET PROGRESSIVE and LOT PROGRESSIVE are printed. It’s also possible to quickly set the number of progressive digits by entering the corresponding value through the numeric keys and then pressing the key combined with the function 401.
  • Page 35 3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U WHEEL WEIGH TOTALISATION - Programmable printout - After the totalisation of a vehicle is made with the F6 key, the printing of the linked format is carried out. With APPROVED instrument: - the INPUT weigh functions with a minimum weight of 20 divisions and reactivates according to how the F.ModE >> rEACt “REACTIVATIONS”...

  • Page 36: Linking Of The Formats To The Print Functions

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 14.1 LINKING OF THE FORMATS TO THE PRINT FUNCTIONS Through function 200, combinable with the desired key (<< F.KEYS >> step, TECH.MAN.REF.), one accesses the linking of the print formats (configurable in the SEtuP >> SEriAL >> Prn.FMt step, TECH.MAN.REF.) to the 13 programmable print functions: Print function Linked format...

  • Page 37: Number Of Ticket Copies

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U TO LINK THE FORMAT:  Recall function 200, combinable with the desired key (<< F.KEYS >> step, TECH.MAN.REF.). Fn 200 S.F. 01 (*)  The LCD display shows: S.F. in which: XX indicates the number of the function (from 01 onwards) to which the print format is linked. ...

  • Page 38: Other Functions

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 15. OTHER FUNCTIONS 15.1 CALCULATOR Through function 114 combinable with the desired key (<< F.KEYS >> step, TECH.MAN.REF.), one enables the calculator function.  ADDITION  MULTIPLICATION  SUBTRACTION Procedure: Enter the first value using the numerical keyboard. Press F1 to add, F2 to multiply, F3 to subtract the value.

  • Page 39: Set-Point Function

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 15.5 SET-POINT FUNCTION The indicator is supplied with 4 outputs (optional) that can be used for different functions, besides, through the I/O expansion board (optional) it is possible to use another 12. In the SEtuP >> outPut >> r.ConF. menu (TECH.MAN.REF.) it is possible to set the characteristics of each output which will be used: normally open or normally closed;...
  • Page 40 3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 15.5.1.2 SET POINT ON THE NET WEIGHT By selecting this functioning mode, the output function on the NET weight is enabled; the entry of the SET POINTS and the specifications are the same as the functioning mode on the gross weight. 15.5.1.3 GROSS WEIGHT AT ZERO By selecting this functioning mode, the output function on the GROSS weight at 0 is enabled.

  • Page 41: Exclusive Functioning Mode

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U Functioning without hysteresis (rL.iSt “HYSTERESIS” parameter set as iSt.oFF) The operating mode is the same as the previous one, except that just one SETPOINT is entered for each output (“S.1 on”); for this purpose the access to the " S.1 oFF " parameter is inhibited. The entry and specifications are the same for the functioning mode on the gross weight.

  • Page 42: Com Data Diagnostic

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 15.7 COM DATA DIAGNOSTIC Through function 119 combinable with the desired key (<< F.KEYS >> step, TECH.MAN.REF.), one enables the Com data diagnostic function. The display shows: 119 COM. DAT 119 COM. DAT ● ●...

  • Page 43: Reading Of The Weighs Carried Out

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U The ID has the following format: <Rewriting number > — < Weigh number > - Rewriting number: number of 5 digits which may go from 0 to 00255; it indicates the number of complete rewritings of the alibi memory.

  • Page 44: Request Weight Value With Weigh Id

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 16.2.1 REQUEST WEIGHT VALUE WITH WEIGH ID The command which allows saving the weight in the alibi memory and the transmission is: <II>PID<CRLF> < II > = machine code, only if functioning in 485 PID = saving command of the weight data in the alibi memory CR = ASCII 13 decimal code...

  • Page 45: Alibi Memory Cancellation (Only With Non Approved Instrument)

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 16.2.4 ALIBI MEMORY CANCELLATION (only with non approved instrument) Command: [II]ALDL <CR o CRLF> in which [II] 485 address (only in the case of 485 transmission mode) Instrument answer: [II]ALDLOK <CR o CRLF> if the cancellation has been carried out effectively [II]ALDLNO <CR o CRLF>...

  • Page 46: At Start-Up

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 17.2 AT START-UP MESSAGE DESCRIPTION LED DISPLAY LCD DISPLAY During the calibration some internal negative points have been calculated: Err. – 36 the calibration point is less than the zero point. the signal is negative (check the connections). During the calibration some internal points less than the minimum value have been calculated: Err.

  • Page 47: In Weighing

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U 17.3 IN WEIGHING MESSAGE DESCRIPTION LED DISPLAY LCD DISPLAY WEIGHT UNDER It is shown in the LCD display when one tries to print or totalise with 20 DIVISIONS the 0 or negative weight. NO ZERO CROSS OR Printing or totalisation not possible without having the weight pass by INSTABILITY the net zero or by instability.

  • Page 48: Declaration Of Conformity

    3590EKR, 3590EXP, 3590EXT series indicator E-AF08_02_13.07_EN_U DECLARATION OF CONFORMITY This device conforms to the essential standards and norms relative to the applicable European regulations. The Declaration of conformity is available in the web site www.diniargeo.com WARRANTY The TWO-YEAR warranty period begins on the day the instrument is delivered. It includes spare parts and labour for repairs at no charge if the INSTRUMENTS ARE RETURNED prepaid to the DEALER’S PLACE OF BUSINESS.
