USER MANUAL
WEIGHT INDICATOR
E-AF09: PROGRAM VERSION FOR DYNAMIC OR STATIC
AXLES WEIGHING WITH INPUT/OUTPUT FUNCTION

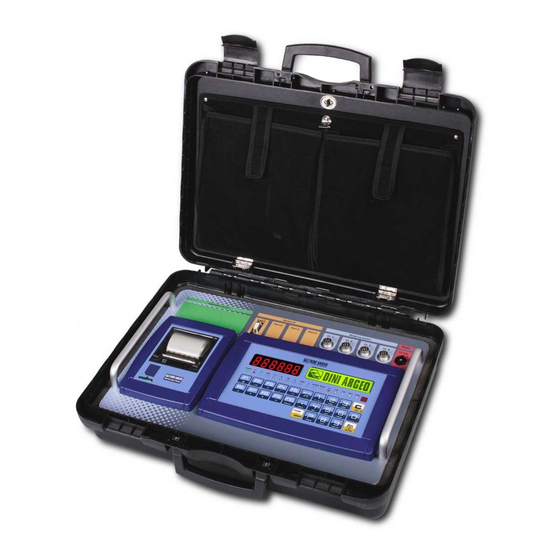

3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator
E-AF09_02_16.04_EN_U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3590EKR Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dini Argeo 3590EKR Series

Summary of Contents for Dini Argeo 3590EKR Series

  • Page 1 USER MANUAL WEIGHT INDICATOR E-AF09: PROGRAM VERSION FOR DYNAMIC OR STATIC AXLES WEIGHING WITH INPUT/OUTPUT FUNCTION 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.04_EN_U...

  • Page 2: Table Of Contents

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U INDEX 1. INTRODUCTION ................................... 4 2. MAIN TECHNICAL SPECIFICATIONS ..........................5 2.1 ACCESSORIES AVAILABLE ............................6 2.2 SYMBOLS USED ................................6 3. INSTALLATION ..................................7 3.1 POWER SUPPLY ................................7 3.2 START UP ..................................7 3.3 TURNING OFF THE INSTRUMENT ..........................
  • Page 3 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 11.2 MATERIALS ................................28 11.2.1 ENTRY ................................28 11.2.2 MODIFICATION ............................... 28 11.2.3 CANCELLATION ............................. 28 11.2.4 PRINTING ............................... 29 11.2.5 SELECTION / DESELECTION ........................29 11.2.6 ENTRY, MODIFICATION AND QUICK SELECTION OF MATERIAL 000 ............30 11.2.7 ALPHABETICAL RESEARCH .........................
  • Page 4 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 13.4 FUNCTIONS OF THE AUTOMATIC AXLE WEIGHING CYCLE (STATIC OR DYNAMIC) ........61 13.4.1 CANCELLING OF THE CYCLE ........................61 13.4.2 ERRORS ON THE AUTOMATIC AXLES WEIGHT ACQUISITION ..............62 13.4.2.1 ERROR ON THE DYNAMIC AXLES WEIGHT ACQUISITION ............62 13.4.2.2 ERROR ON THE STATIC AXLES WEIGHT ACQUISITION ..............

  • Page 5: Introduction

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 1. INTRODUCTION This manual was created to help you install and learn all about the functional possibilities of the purchased indicator. The instrument is suitable for use in various weighing environments. Not only does it have all the normal features of high-precision scales, but it also gives you the possibility to work in specific environments due to the functioning modes contained in the software implemented in the FLASH MEMORY on the internal board;...

  • Page 6: Main Technical Specifications

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 2. MAIN TECHNICAL SPECIFICATIONS 3590E: - 12 ÷24 Vdc ( 12Vdc with internal adapter) - 6 Vdc from rechargeable built-in battery, fitted depending on the model. POWER SUPPLY CPWE - CPWET - 12 ÷ 24 Vdc MAXIMUM POWER 16 VA.

  • Page 7: Accessories Available

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 2.1 ACCESSORIES AVAILABLE On the indicator is possible to implement internal and external modules used to increase interfacing possibilities. For example, the number of usable outputs, various types of printers, in order to have a report of the weighs made, or giant display in order to better see the weigh operations.

  • Page 8: Installation

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 3. INSTALLATION 3.1 POWER SUPPLY ÷ - The 3590E indicator is powered with 12Vdc voltage , through an internal adapter which converts the 100 240Vac, 50÷60Hz mains voltage and 6 Vdc, from the built-in battery (fitted, depending on the model). TO POWER the instrument through the 240 Vac mains, or TO RECHARGE the battery, insert the plug and the adapter to the 240 Vac mains socket.

  • Page 9: Turning On Printer In Energy Saving Mode

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 3.4 TURNING ON PRINTER IN ENERGY SAVING MODE Premise: the SEtuP >> SEriAL >> CoMPrn >> PWrPrn parameter must be set as “ExtoFF” or “PWrint” (TECH.MAN.REF). In a system where the indicator is connected to a printer, both are battery powered, the printer is normally maintained in STAND-BY and powered only when a printout is needed.

  • Page 10: Function Of The Keys

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U CPWET 4.1 FUNCTION OF THE KEYS In the following section, and later on in the manual, the keys’s functioning is described in accordance to how these are configured by factory. It is possible to customise the functionality of the keys through the << F.KEYS >> step. - Turns the instrument on/off - If pressed for an instant, it clears the tare value.

  • Page 11: 2Ndf" Key: Second Function Of The Keys

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U - In the calculator mode or when edits printer format, if pressed, the display shows some help descriptions. ./HELP - In the numeric or alphanumeric input phase, it enters, in this order, the following characters: . , ; : # < > \ | ”...

  • Page 12: Entering Alphanumeric Text

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 4.3 ENTERING ALPHANUMERIC TEXT It might be necessary, while the weighing system is working, to enter some alphanumerical texts such as descriptions, alphanumerical messages (operator, lot number, customer, etc.). To enter the characters one uses the 0 to 9 keys. By pressing one of these keys a few times, the characters shown on the key will be shown on the display: initially the first letter in the bottom left will appear, and then the other characters towards the right.

  • Page 13: Disabling The Keyboard

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 4.4 DISABLING THE KEYBOARD It is possible to disable all the keyboard functions (except the C key for turning on and off), in order to avoid undesired pressings of the scale keys: To lock the keyboard, press at length the F1 key: the display shows the “LoCK”...

  • Page 14: Remote Control

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U The PC keyboard also allows to enter a numeric or alphanumeric string (max.32 characters) and then press a key to execute the corresponding quick function. For example, if the function 122 (Input text 1 configuration) is combined to the F4 key (see << F.KEYS >> step, TECH.MAN.REF.), through PC keyboard it’s possible to enter a text and the press F4 to quickly modify the input text 1.

  • Page 15: 6-Key" Radio Remote Control

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 4.7.2 “6-KEY” RADIO REMOTE CONTROL With this type of remote control, the functioning of each key can be programmed so that it is matched to one of the available keys of the indicator. This configuration must be carried out in the Setup environment, in the <<...

  • Page 16: Display Functions

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 5. DISPLAY FUNCTIONS During the weighing the displays are subdivided mainly in 3 sections, shown in the figure below: WEIGHT STATUS INDICATORS (led pilot lights and / or graphic symbols) DATA (two lines in the 3590E; one or two lines in the CPWE, depending on the weight zoom function described in the following section).

  • Page 17: Weight Zoom (Available Only On Cpwe And Cpwet Models)

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 5.1 WEIGHT ZOOM (available only on CPWE and CPWET models) The zoom function allows to increase the size of the weight digits, in order to ease the reading from a distance; with the active zoom, the data is shown on a single line.

  • Page 18: Battery Level Indication

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U The displayed weight is a GROSS WEIGHT (depending on the software language). The displayed weight is a NET WEIGHT. A tare value has been acquired. A manual tare value has been entered. Unit of measure in use: ton, kilogram, gram, pounds, millilitres, or millivolts.

  • Page 19: Displayed Data

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U The indicator shows also when the battery is being recharged (if provided for the model): RECHARGE PHASE: …     COMPLETED RECHARGE: NOTES: - During the recharge the instrument can be normally used. - The instrument automatically turns off when the voltage goes below the minimum level.

  • Page 20: Lcd Display Customization (Only For 3590E Indicators)

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U - During the axle totalization cycle the display will guide the operator to execute the weighing procedure depending on the selected functioning mode. Refer to section 13 for details. VISUALISATION WITH ACTIVE WEIGHT ZOOM The data is shown on one line under the “weight”...

  • Page 21: Messages Of The Instrument

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 5.5 MESSAGES OF THE INSTRUMENT While using the indicator, it is possible to incur into the following errors: 5.5.1 INSIDE THE SET-UP OR MENU OR AT START-UP MESSAGE DESCRIPTION Error S X Cell Y Communication error on scale X (E.G.

  • Page 22: In Weighing

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 5.5.2 IN WEIGHING MESSAGE DESCRIPTION NON VALID OR UNSTABLE Printing or totalisation not possible with weight at 0, negative, unstable, or out of the WEIGHT totalisation field. It’s showed on the LCD display when you try to print or totalize with the weight 0 or WEIGHT UNDER 1 DIVISION negative *** POWER OFF ***...

  • Page 23: Calculated Manual Tare

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U The operation can be made either with a loaded or unloaded platform. NOTE In the printout, the manual tare is identified with “PT” (Preset Tare). 7.2 CALCULATED MANUAL TARE With the "CALCULATOR" function one can add or subtract from the current tare the result of an operation between two values entered with the keyboard.

  • Page 24: Multirange And Multidivision Function

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 8. MULTIRANGE AND MULTIDIVISION FUNCTION The multi range functioning allows to subdivide the scale capacity in two or three ranges, each which is up to 3000 divisions, improving in this way the first range division in the dual range and the first two ranges in the triple range. For example, it is possible to approve the weighing system with: A single range: 6 kg capacity and 2 g division (3000 div.).
  • Page 25 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U c. Press ENTER to store and pass on to the following stored TEXT; by confirming the last entered text one returns automatically to the weigh functioning; it is possible to exit also with the C key while in the text selection modification phase.

  • Page 26: Database

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 11. DATABASE 11.1 CUSTOMER DATABASE The database is made up of 500 memory storages, identified by an index from 0 to 499, each having three 25-character descriptions; the entry / modification / cancellation of an element can be protected by a password; the unlocking procedure is the same as that described in point number 2) of section 12.

  • Page 27: Cancellation

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 11.1.3 CANCELLATION 1) Press the F1 key to access the database. 2) Select the storage to be deleted: a. by using the arrow keys   b. by typing the storage number with the keyboard (the LCD display shows the first corresponding DESCRIPTION line) c.

  • Page 28: Entry, Modification And Quick Selection Of Customer 000

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 3) Press a direct key combined to the desired article, for example one can activate the article 1 by pressing directly the F6 key; to do this one has to combine the function 302 to the desired key and insert a preamble value equal to the storage number to select (see <<...

  • Page 29: Help

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 11.1.8 HELP By pressing the ./HELP key, it’s possible to see the keys list used in the menu. The key list scrolls automatically. If you want to see the keys list, in manual mode, use the arrow key (F6  and F7 ). 11.2 MATERIALS The database is made up of 500 memory storages, identified by an index from 0 to 499, each having two 20-character descriptions;...

  • Page 30: Printing

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U c. by searching the first description (see section 11.2.7) 3) Press F3. 4) The indicator requests a further confirmation: press ENTER to confirm or another key to cancel. 5) Restart from point 2) or press C to return to weighing. 11.2.4 PRINTING 1) Press the F2 key to access the database.

  • Page 31: Entry, Modification And Quick Selection Of Material 000

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U CUS MAT In both cases, the LCD display shows in the data section (see 5.4 section): At this point the memory storage will be linked to the weigh under way and will be printed if foreseen in the ticket. To DESELECT the memory storage, one can proceed in two ways: 1) Press the F1 key to access the database and press 2nd F, the LCD display shows: DESELECT...

  • Page 32: Vehicles

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 11.3 VEHICLES The database is made up of 500 memory storages, identified by an index from 0 to 499, each having a license plate of 10 characters, one 20-character description and a tare value; the entry / modification / cancellation of an element can be protected by a password;...

  • Page 33: Printing

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 11.3.4 PRINTING 1) Press the F3 key to access the database. 2) Press the F5 key: the LCD display shows “PRINT?”. Confirm with ENTER or press another key to cancel. Here one is given suggestions on how to print the list of the memory storages: - By pressing the 0 key all the memory storages in the database are printed, each with: MEMORY NR.

  • Page 34: Entry, Modification And Quick Selection Of Veihcle 000

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U To DESELECT the memory storage, one can proceed in two ways: 1) Press the F1 key to access the database and press 2nd F, the LCD display shows: DESELECT VEHICLE? 2) Press a direct key combined to the material deselection function: to enable this function one has to combine the function 308 to the desired key (see <<...

  • Page 35: Database Access Password

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 12. DATABASE ACCESS PASSWORD In the SETUP (F. ModE >> dtb.PWd parameter, TECH.MAN.REF.) one can set a password for access to the databases. A password will be required only when one wants to insert, modify or delete an element of the file; for a moment the LCD display shows the message “uSEr”;...

  • Page 36: Simple Axles Weighing

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 13.2 SIMPLE AXLES WEIGHING In this functioning mode, it is possible to get the weight of each axle and calculate their total weight, without any in/out weighing function. To enable this mode, one has to set the step F.ModE >> totAL >> In.out in the setup on “diSAbL”, (TECH.MAN.REF.). 13.2.1 MANUAL AXLE WEIGHING 13.2.1.1 CONFIGURATION Set parameter in the SETUP: F.ModE >>...
  • Page 37 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U [In which: XXXXXX is the acquired weight value blinking for about 2 seconds, then the current weight on the scale] After that, the indicator waits for the following axle. Drive and stop the next axle of the vehicle on the scale. Wait a few instants for the weight stability.

  • Page 38: Automatic Static Axle Weighing

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 13.2.2 AUTOMATIC STATIC AXLE WEIGHING 13.2.2.1 CONFIGURATION Set parameter in the SETUP: F.ModE >> totAL >> AXLE W on “STATIC”. If before was setted the DYNAMIC axles weighing, the indicator ask to set the filter of this weighing mode, press FN/ENTER to confirm.
  • Page 39 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U CPWE AXLES: 1 TOT: YYYYYY UM [In which: YYYYYY is the acquired weight value, with unit of measure] Then the acquired weight blinks for a few seconds and the indicator executes the printout (if set in the corresponds print formats): 3590E LED display...
  • Page 40 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U Drive and stop on the next axle of the vehicle on the scale. Wait a few instants for the weight stability; the indicator acquires the axle weight, prints the acquired value and asks again for the following axle weigh, and then for all the axles which one wants to totalize.

  • Page 41: Automatic Dynamic Axle Weighing

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 13.2.3 AUTOMATIC DYNAMIC AXLE WEIGHING 13.2.3.1 CONFIGURATION Set parameter SETUP F.ModE >> totAL >> AXLE W (RIF.MAN.T.) on “dYnAMi”. If before was setted the MANUAL or STATIC axles weighing, the indicator ask to set the filter of this weighing mode, press FN/ENTER to confirm.
  • Page 42 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 3590E LED display LCD display AXLES: 1  TOT: YYYYYY UM CPWE AXLES: 1 TOT: YYYYYY UM [In which: YYYYYY is the acquired weight value, with unit of measure] Then the acquired weight blinks for a few seconds and the indicator executes the printout (if set in the corresponds print formats): After that the weight of the first axle has been successfully acquired, when the weight goes below the <<Min.Wei>>...
  • Page 43 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U Then the indicator executes the end cycle printout, and then displays the total of the axles for a few seconds: 3590E LED display LCD display AXLES: 2 H km/h  TOT: YYYYYY UM alternatively to AXLES: 2 H km/h...

  • Page 44: Input-Output Axle Weighing

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 13.3 INPUT-OUTPUT AXLE WEIGHING In this functioning mode it is possible to get the weight of each axle with calculation of their total weight, first in input and after in output, and therefore determine the weight difference between the 2 total weighs. The indicator links each input weigh to the lowest available ID (from 1 to 999);...
  • Page 45 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U After the weight of the first axle is acquired, the indicator emits a sound and displays for an instant the following messages: 3590E LED display LCD display WEIGH AXLE 2?  ENTER=YES C=NO CPWE WEIGH AXLE 2 ? ENTER=YES C=NO...

  • Page 46: Starting Output Weighing Through Id Code

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U CPWE total WEIGH AXLE 3 ? ENTER=YES C=NO print WEIGH AXLE 3 ? ENTER=YES C=NO Then the indicator executes the input cycle end printout, and then displays the total of the axles in the weight section (see section 5) for a few seconds: 3590E LED display...

  • Page 47: Starting Output Weighing Through License Plate

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U Select the desired weigh using the arrow keys  . Confirm with ENTER or press C to exit. 13.3.1.4 STARTING OUTPUT WEIGHING THROUGH LICENSE PLATE To enable this mode, one has to set the step F.ModE >> totAL >> WEi.MEM on “PLAtE” in the setup (TECH.MAN.REF.). Procedure Select, if requested, the customer / material / vehicle to be linked to the output weigh.
  • Page 48 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U XXXXXX WEIGH AXLE 2 ? ENTER=YES C=NO [In which: XXXXXX is the acquired weight value blinking for about 2 seconds, then the current weight on the scale] After that the indicator waits for the following axle. Drive and stop the next axle of the vehicle on the scale.

  • Page 49: Automatic Static Axle Weighing

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U [In which: XXXXXX is the acquired overall weight value] At this point, it returns in the status of waiting for the input or output weighing cycle start. 13.3.2 AUTOMATIC STATIC AXLE WEIGHING 13.3.2.1 CONFIGURATION Set parameter in the SETUP: F.ModE >>...
  • Page 50 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U Drive and stop the first axle of the vehicle on the scale. Wait a few instants, the axle will be acquired when: 1) the weight is greater than the minimum weight of the set axle. 2) the weight is stable.
  • Page 51 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U Drive and stop the next axle of the vehicle on the scale. Wait a few instants for the weight stability, the indicator acquires the axle weight, prints the acquired value and asks again for the following axle weigh, and then for all the axles which one wants to totalize.

  • Page 52: Starting Output Weighing Through Id Code

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U At this point, it returns in the status of waiting for the input or output weighing cycle start. 13.3.2.3 STARTING OUTPUT WEIGHING THROUGH ID CODE To enable this mode, one has to set the step F.ModE >> totAL >> WEi.MEM on “Wei.Cod” in the setup (TECH.MAN.REF.). Procedure Select, if requested, the customer / material / vehicle to be linked to the output weigh.

  • Page 53: Output Weighing Procedure

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 13.3.2.5 OUTPUT WEIGHING PROCEDURE After having selected the input weigh, the indicator waits for the first axle and displays: 3590E LED display LCD display CUS MAT  WAITING AXLE 1 CPWE XXXXXX WAITING AXLE 1 [In which: XXXXXX is the current weight on the scale o means “output”...
  • Page 54 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U [In which: XXXXXX is the acquired weight value blinking for about 2 seconds, then the current weight on the scale YYYYYY is the acquired weight value, with unit of measure] When the weight goes under the minimum weight threshold of the axle, the indicator waits for the following axle: 3590E LED display LCD display...

  • Page 55: Automatic Dynamic Axle Weighing

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U alternatively to AXLES: 2  TOT: YYYYYY UM CPWE XXXXXX AXLES: 2Y TOT: YYYYY UM alternatively to tot.out AXLES: 2 TOT: YYYYYY UM [In which: XXXXXX is the acquired overall weight value YYYYYY UM is the acquired overall weight value with unit of measure] At this point, it returns in the status of waiting for the input or output weighing cycle start.
  • Page 56 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U CPWE XXXXXX ENTRY WEIGH XXXXXX WAITING AXLE 1 [In which: XXXXXX is the current weight on the scale i means “input” weigh] Transit with the first axle of the vehicle on the scale in the limits of speed setted in the DYN.CFG >> SPEED, avoiding braking while transiting on the scale.
  • Page 57 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U Transit with the first axle of the vehicle on the scale in the limits of speed setted in the DYN.CFG >> SPEED , avoiding braking while transiting on the scale. The indicator acquires automatically the axle weight, shows the acquired value and asks again for the following axle weigh, and then for all the axles which one wants to totalize.

  • Page 58: Starting Output Weighing Through Id Code

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 13.3.3.3 STARTING OUTPUT WEIGHING THROUGH ID CODE To enable this mode, one has to set the step F.ModE >> totAL >> WEi.MEM on “Wei.Cod” in the setup (TECH.MAN.REF.). Procedure Select, if requested, the customer / material / vehicle to be linked to the output weigh. To select the input weigh it’s possible to proceed in two ways: 1) Directly type in the ID code and press F7 2) Press F7: one enters the menu of the “open”...
  • Page 59 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U Transit with the first axle of the vehicle on the scale in the limits of speed setted in the DYN.CFG >> SPEED, avoiding braking while transiting on the scale. The axle will be acquired automatically if: 1) The weight is greater than the set minimum weight of the axle setted in <<Min.Wei>>...
  • Page 60 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 3590E LED display LCD display WAIT AXLE 3  TOT: YYYYYY UM WAIT AXLE 3  TOT: YYYYYY UM CPWE total WAIT AXLE 3 TOT: YYYYYY UM print WAIT AXLE 3 TOT: YYYYYY UM Then the indicator executes the end cycle printout, and then displays the total of the axles for a few seconds: 3590E LED display...

  • Page 61: Selecting Input Or Output Before Or After Having Acquired The Axles

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 13.3.3.6 SELECTING INPUT OR OUTPUT BEFORE OR AFTER HAVING ACQUIRED THE AXLES In the dynamic axle weighing it is possible to decide to acquire the weight of all the axles and after that, decide where the total weight will be totalized (in input or in output), or leave the functioning as usual so that the operator is forced to execute the selection to allow starting the cycle.

  • Page 62: Determination Of The Truck's Net Weight By Subtracting The Preset Tare

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 13.3.6 DETERMINATION OF THE TRUCK’S NET WEIGHT BY SUBTRACTING THE PRESET TARE Premise: This function is available if the input/output weighing mode is enabled. If a manual tare has manually been set or recalled by selecting a vehicle (see section 7), the indicator automatically subtracts it from the total weight accumulated, as long as it is not greater than it, at the end of the axle totalization cycle.

  • Page 63: Errors On The Automatic Axles Weight Acquisition

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 13.4.2 ERRORS ON THE AUTOMATIC AXLES WEIGHT ACQUISITION 13.4.2.1 ERROR ON THE DYNAMIC AXLES WEIGHT ACQUISITION Error messages that can be displayed on the instrument, if there is an axles error (if the step <<ERR.EN>> = ENABLE): 3590E Visualizations If the vehicle has passed over the maximum speed allowed AXLE ACQUISITION...

  • Page 64: Error On The Static Axles Weight Acquisition

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 13.4.2.2 ERROR ON THE STATIC AXLES WEIGHT ACQUISITION 3590E Visualizations If the weight has passed the capacity of the scale. AXLE ACQUISITION  ERROR If the maximum number of axles is reached. AXLE ACQUISITION ...

  • Page 65: Additional Tare Function

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 13.5 SETTING AXLES SO THAT THESE ARE NOT TOTALISED If the automatic weighing has been configured, it is possible to set a number of axles to not be totalised at the beginning and/or at the end of the weighing cycle.

  • Page 66: Reenabling The Weigh

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 13.7 REENABLING THE WEIGH After having weighed an axle, in order to weigh a new one, the displayed weight must pass by zero or it becomes unstable. This setting is carried out in the SET-UP environment in the F.ModE >>rEACt. parameter (TECH.MAN.REF.). At the moment of the weight acquisition, the LCD display shows: WEIGHT NOT PASS.

  • Page 67: Progressives

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U In case of visualisation of the total, the instrument automatically exits the function after a few seconds. NOTES: The weight data of the cleared total will be updated only with the subsequent input/output weigh or single weigh. There is a total for EACH CUSTOMER, MATERIAL AND VEHICLE USED.

  • Page 68: Printouts

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 14. PRINTOUTS The instrument is fitted with different print functions, which may be used while weighing, and of 30 print formats, in other words, 30 different memory storages, each of which contain a programmable printout. The printouts executed by some of these functions depends on the print format linked to it;...
  • Page 69 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U OUTPUT AXLE WEIGHING REPORT - Programmable printouts - If the input/output function is enabled, through the following print functions, it is possible to create a report of the output axle weighing made, by printing a heading, the weight of each weighed axle. See section 13.3 for the procedure to execute the output weigh.
  • Page 70 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U MATERIAL TOTAL - Programmable printout - By pressing the 2nd F key followed by F2, the MATERIAL TOTAL is printed and then cleared as well as the printing of the format linked to the S.F.09 function. Please find below the default printout: DESCRIPTION1 DESCRIPTION2 TOTAL INPUT WEIGHT = net weight of the quantity which has entered in the factory (in other words the sum of the net...

  • Page 71: Linking Of The Formats To The Print Functions

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 14.1 LINKING OF THE FORMATS TO THE PRINT FUNCTIONS Through function 200, combinable with the desired key (<< F.KEYS >> step, TECH.MAN.REF.), one accesses the linking of the print formats (configurable in the SEtuP >> SEriAL >> Prn.FMt step TECH.MAN.REF.) to the 12 programmable print functions: Print function Linked format...

  • Page 72: Quick Linking Of The Formats

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U TO LINK THE FORMAT:  Recall function 200, combinable with the desired key (<< F.KEYS >> step, TECH.MAN.REF.). S.F. 01  The LCD display shows: S.F. in which: XX indicates the number of the function (from 01 onwards) to which the print format is linked. ...

  • Page 73: Repetition Of The Last Executed Printout

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 14.3 REPETITION OF THE LAST EXECUTED PRINTOUT By pressing in sequence the 2nd F and F5 keys the last executed printout is repeated; however, it’s not possible to reprint any selected databases, and the date/time will be of the copy just reprinted. NOTE: If one wants always to execute more than one printout, it’s advisable to use the ticket copies function (see section 14.2).

  • Page 74: Calculator

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U When the data on the RX and TX reception and transmission lines are correctly displayed, then the functioning of the relative serial line is considered to be correct. NOTE: By pressing the ./HELP key, it’s possible to see the keys list used in the menu. 15.3 CALCULATOR Through function 113 combinable with the desired key (<<...

  • Page 75: Set-Point Function

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U 15.6 SET-POINT FUNCTION The indicator is supplied with 4 outputs (optional) that can be used for different functions; through the I/O expansion board (optional) it is possible to use another 12 outputs. In the SEtuP >>outPut >>...
  • Page 76 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U SET POINT ON THE NET WEIGHT By selecting this functioning mode, in the normal scale mode, the relay function on the NET weight is enabled; the entry of the SET POINTS and the specifications are the same as the functioning mode on the gross weight. GROSS WEIGHT AT ZERO By selecting this functioning mode, in the normal scale mode, the relay function on the GROSS weight at 0 is enabled.
  • Page 77 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U Functioning without hysteresis (rL.iSt “HYSTERESIS” parameter set as iSt.oFF) The operating mode is the same as the previous one, except that just one SETPOINT is entered for each output (" S.1 on “); for this purpose the access to the "...
  • Page 78 3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U  After the execution of the axle weigh, the RED light turns off and the GREEN light turns back on, to inform to proceed with the next axle.  The vehicle descends from the scale and the GREEN light continues to stay on. ...

  • Page 79: Declaration Of Conformity

    3590EKR, 3590EXP, 3590EXT, CPWE, CPWET series indicator E-AF09_02_16.03_EN_U DECLARATION OF CONFORMITY This device conforms to the essential standards and norms relative to the applicable European regulations. The Declaration of conformity is available in the web site www.diniargeo.com WARRANTY The TWO-YEAR warranty period begins on the day the instrument is delivered. It includes spare parts and labour for repairs at no charge if the INSTRUMENTS ARE RETURNED prepaid to the DEALER’S PLACE OF BUSINESS.
