Summary of Contents for TOORX BRX COMFORT

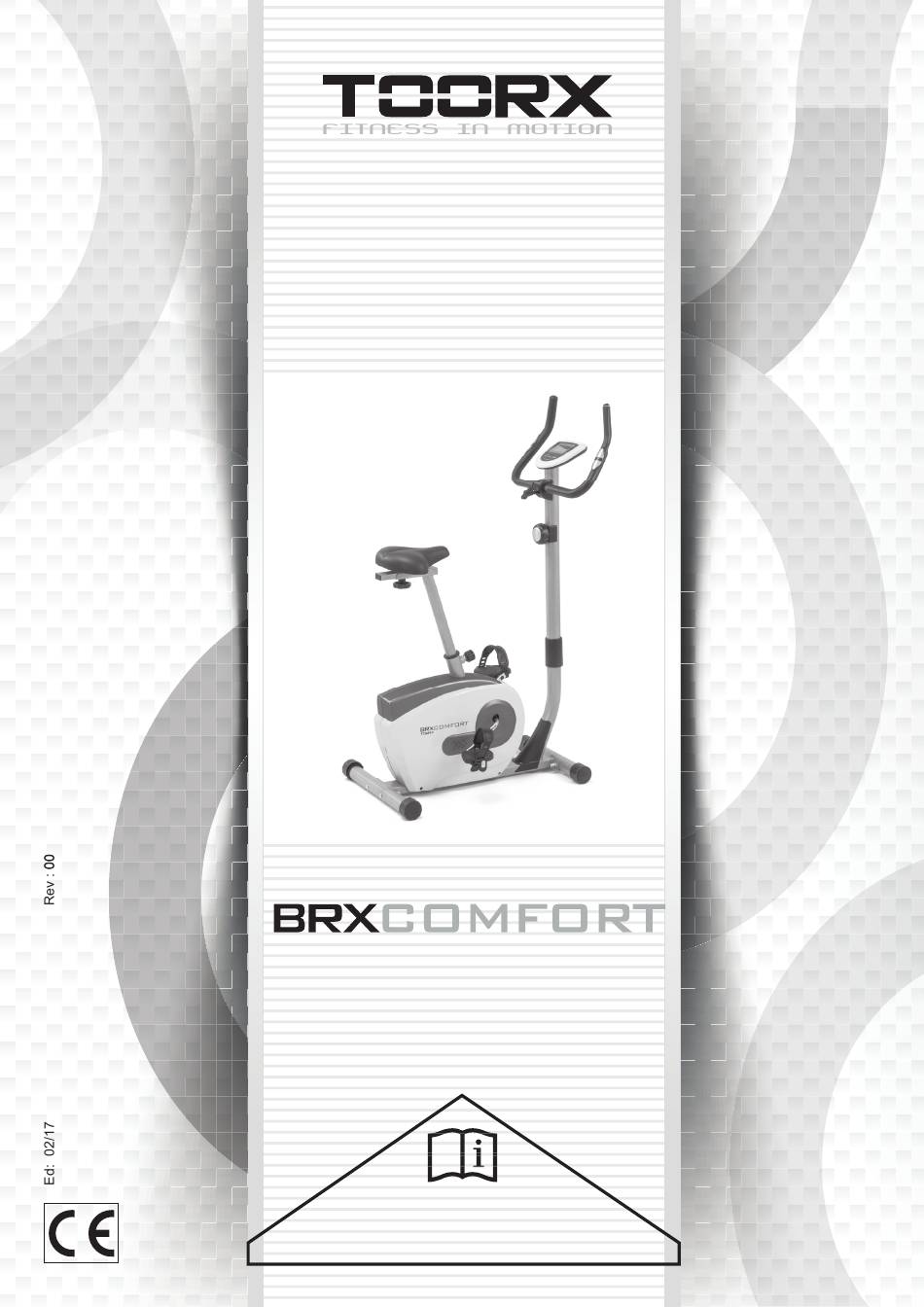

  • Page 1 INSTRUCTION...
  • Page 3 ASSEMBLY INSTRUCTIONS Step 1 Assembly the rear and front stabilizer (L&K) with 4 bolts (I-6), 4 nuts (I-8) and 4 washers (I-7). Step 2 Assemble the left hand pedal (J-L) and the right hand pedal (J-R) to the hand crank. Step 3 Insert the seat post (M) into the main frame through the plastic sleeve.
  • Page 4 ASSEMBLY INSTRUCTIONS Step 4 Connect the saddle (N-2) and the slider (N- 1) with three bolts and washers. Attach the slider onto the top of the seat post and the secure using the horizontal adjusting knob (N-6) and one flat washer (N-5). Step 5 Assemble the cables of the exercise computer between the main frame and the...
  • Page 5 ASSEMBLY INSTRUCTIONS Step 6 Attach the handlebar (B) to the handlebar post between the steel covers, assemble the plastic cover (I-2) over the steel cover, secure the steel cover assembly using one flat washer (I-5), one spring washer (I-4), one bushing (I-3) and one T-knob (I-1). Step 7 Plug in the cable between the computer and the handlebar post.

  • Page 6: Parts List

    PARTS LIST DESCRIPTION Q'TY Computer 1SET Cone cross screw 2PCS Handlebar set 1PCS End cap 2PCS Foam grip 2PCS Hand pulse sensor 1SET Handlebar post set 1PCS Cable(Upper) 1PCS Tension controller(Upper) 1PCS Main frame 1PCS Cable(Lower) 1PCS Tension controller(Lower) 1PCS Handlebar post plastic cover 1PCS Hex.
  • Page 7 Idler 1PCS Hex. screw 1PCS Sleeve 1PCS Nylon nut 2PCS Flat washer 3PCS Magnetic control set 1SET Magnetic control 1PCS Bearing 1PCS Washer 2PCS Flat washer 2PCS Spring washer 2PCS Hes. screw 2PCS Wave washer 1PCS Flywheel set 1SET Flywheel 1PCS One way ratchet wheel 1PCS...
  • Page 8 Front stabilizer set 1PCS Front stabilizer 1PCS Front stabilizer end cap 2PCS Rear stabilizer set 1PCS Rear stabilizer 1PCS Rear stabilizer end cap 2PCS Seat post set 1SET Seat post 1PCS Slider set 1SET slider 1PCS Saddle 1PCS Slider fixed set 1PCS End cap 2PCS...
  • Page 9 COMPLETE BIKE ASSEMBLY...

  • Page 10: Exercise Computer

    EXERCISE COMPUTER Monitor Display KEY FUNCTION: MODE: This key lets you to select and lock on to a particular function you want. SET : Can to proceed the data establish for “TIME””DISTANCE””CALORIES” RESET: The key to reset the value to zero by pressing the key. OPERATION PROCEDURES: 1.
  • Page 11 FUNCTIONS SPEED Displays current training SPEED, the maximum is 99.9km/ml,it always displays. TIME Accumulates total working time from 00:00 up to 99:59. DISTANCE Accumulates training distance from 0.00 to the maximum 99.99km/ml with each increment 0.01km/ml. CALORIES Accumulates calories consumption during training from 0 to the maximum 9999 cal with each increment 1 cal.
  • Page 12 GARLANDO SPA Via Regione Piemonte, 32 - Zona Industriale D1 15068 - Pozzolo Formigaro (AL) - Italy www.toorx.it - info@toorx.it...
