EVAL-AD5753SDZ User Guide UG-1492
7. Double-click EVAL-AD5753SDZ to open the AD5753 block
diagram (see Figure 7). The INITIAL CONFIGURATION
menu appears on the left side of the window. Several
register settings can be configured under this menu, and
are written to the device in the appropriate order. The
DIG_DIAG_STATUS, RESET_OCCURED, and
CAL_MEM_UNREFRESHEDLED indicators are
highlighted red. Write the initial configuration values to
clear the error flags. If the device is power cycled, or if the
USB cable is disconnected and reconnected while the ACE
software is open, contact with the EVAL-AD5753SDZ is
lost. If contact is lost, click the System tab, click the USB
symbol on the EVAL-AD5753SDZ, and then click Acquire
to restore communication with the EVAL-AD5753SDZ.

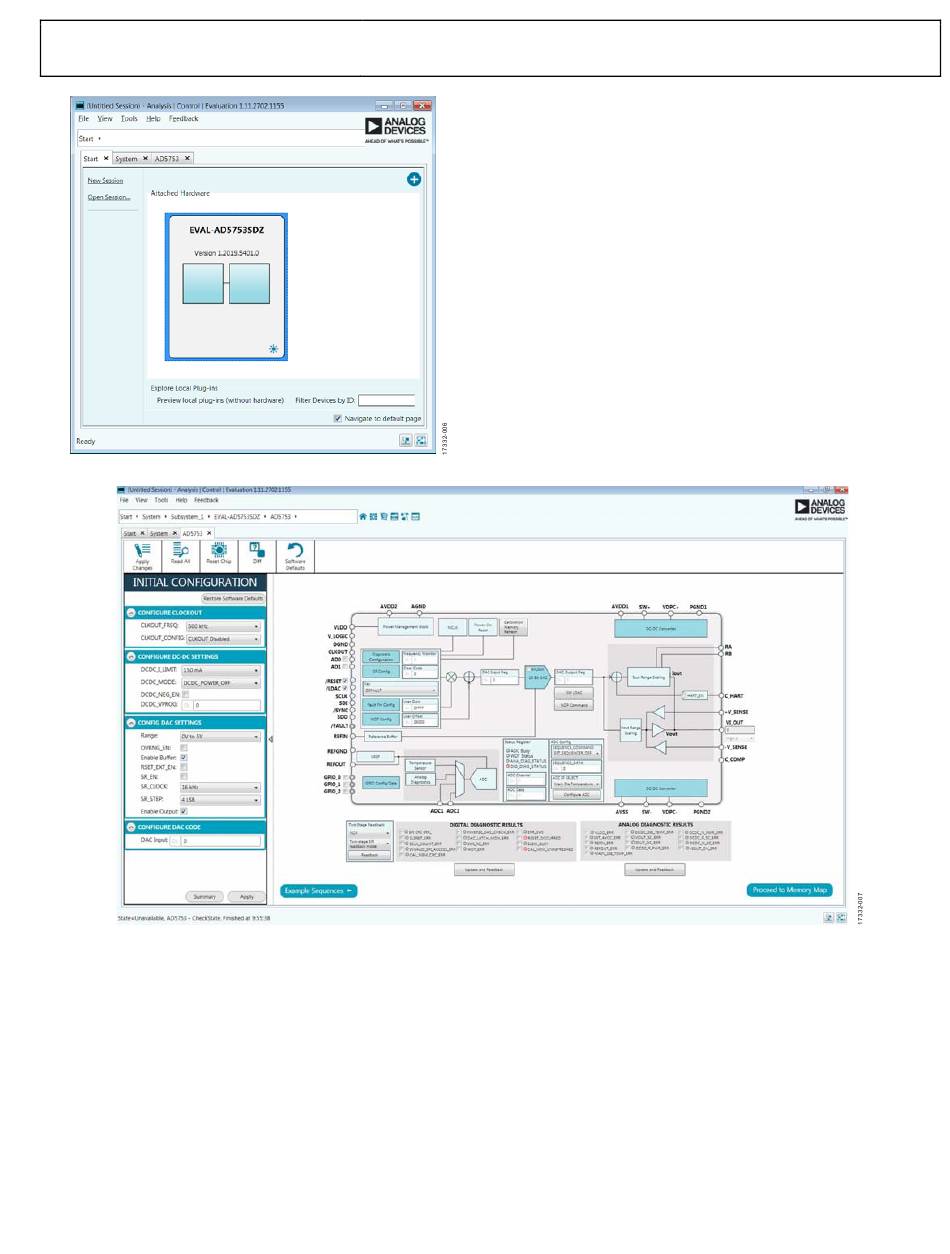

Figure 6. Attached Hardware Section with Connected EVAL-AD5753SDZ
Figure 7. AD5753 Block Diagram in ACE Software
Rev. 0 | Page 7 of 22
