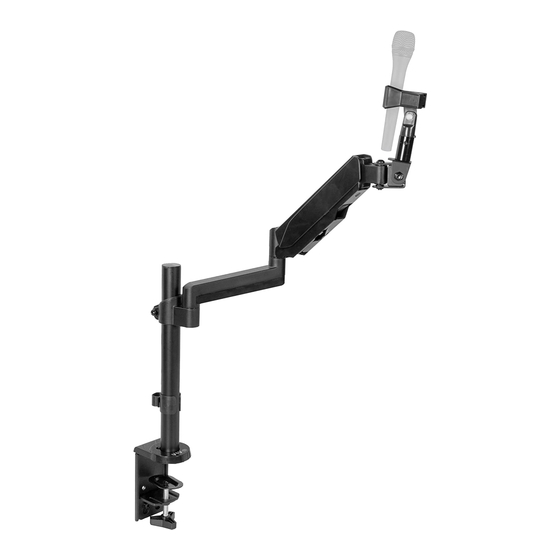

Pneumatic Arm Microphone Desk Mount
Instruction Manual
SKU: STAND-MIC01
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-mic01
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-MIC01
Summary of Contents for Vivo STAND-MIC01
- Page 1 Pneumatic Arm Microphone Desk Mount Instruction Manual SKU: STAND-MIC01 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-mic01 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 5.95lbs Failure to do so may result in serious injury. (2.70kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation As delivered, the clamp (B) will fit a desktop thickness of 35-80mm. To fit a desk thickness of 10-45mm, remove the two bolts using the 6mm Allen wrench (L), then reassemble at alternate height.
- Page 4 STEP 1 (Continued) OPTION B: Grommet Base Installation Disassemble clamp (B) using 6mm Allen wrench (L). Remove the screw, washer and clamp plate from the clamp, then remove the hand bolt. If desk does not have an existing grommet hole, drill a 3/8” (10mm) hole through the desktop.
- Page 5 STEP 3 Screw mic clamp (D) onto arm (A) and adjust using 3mm Allen wrench (J). STEP 4 Place mic into mic clamp (D). Manage cable as shown using covers on arm (A) and cable clip (F).
- Page 6 STEP 5 Adjust gas spring tension if needed by turning screw on top of center joint with 6mm Allen wrench (L).
- Page 7 Adjust as Desired ±180 ° ±90 ° +90 ° ±180 ° -90° ±135 °...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
