VESA Mounting Adapter Kit for iMac
Instruction Manual
SKU: STAND-MACB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-macb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Related Manuals for Vivo VESA
Summary of Contents for Vivo VESA
- Page 1 VESA Mounting Adapter Kit for iMac Instruction Manual SKU: STAND-MACB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-macb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...

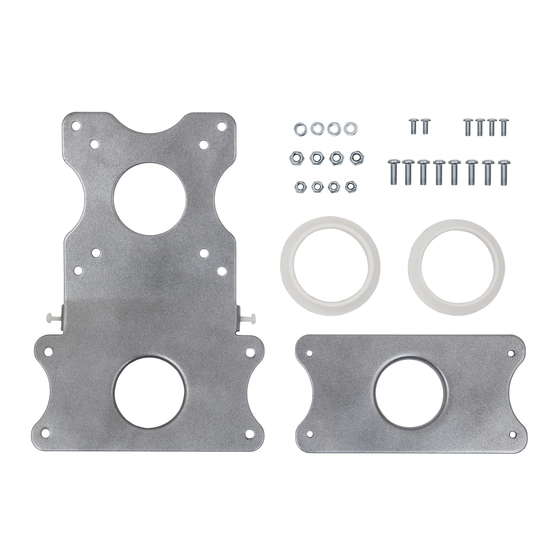

- Page 2 Insert M4x12 nylon screws (M-A) M-E/M- F M-B/M- C M- D into sides of adapter plate (A). Attach adapter plate to VESA mount using x4 screws (M-B or M-C), D5 washers (M-D) and nyloc nuts (M-E or M-F). Please note that the screws...
- Page 3 STEP 2 OPTION A: 21.5” iMac Installation Assemble adapter plate (A) and clamp plate (D) to base of iMac using M5x14 screws (M-C), making sure the plates are properly fit to the cable hole and leaving screws slightly loose. Tighten nylon screws to level the iMac, then tighten the rest of the screws.
- Page 4 - 92% within < 3hr : < 15 M www.vivo-us.com AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
