Texas Instruments DLP5534Q1EVM User Manual

DLP5534Q1EVM Evaluation Module User's Guide

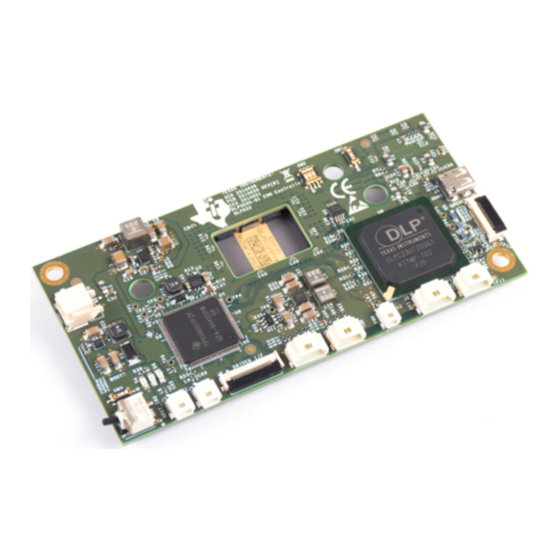

The DLP5534Q1 Evaluation Module (EVM) is a complete electronic subsystem designed to drive the
DLP5534-Q1 chipset. The DLP5534-Q1 chipset consists of the DLP5534-Q1, the DLPC230-Q1, and the
TPS99000-Q1. When combined with illumination and projection optics, 405 nm and other LEDs this EVM
can be used to develop an automotive grade projector for applications such as transparent window display
utilizing phosphor film(s) embedded in a window.
Except for the DMD, there are no optical elements provided with this EVM. It is expected that this EVM is
procured in order to mount to a custom designed projector.
The DLP5534Q1 EVM is not a production design. It is intended for evaluation only.
