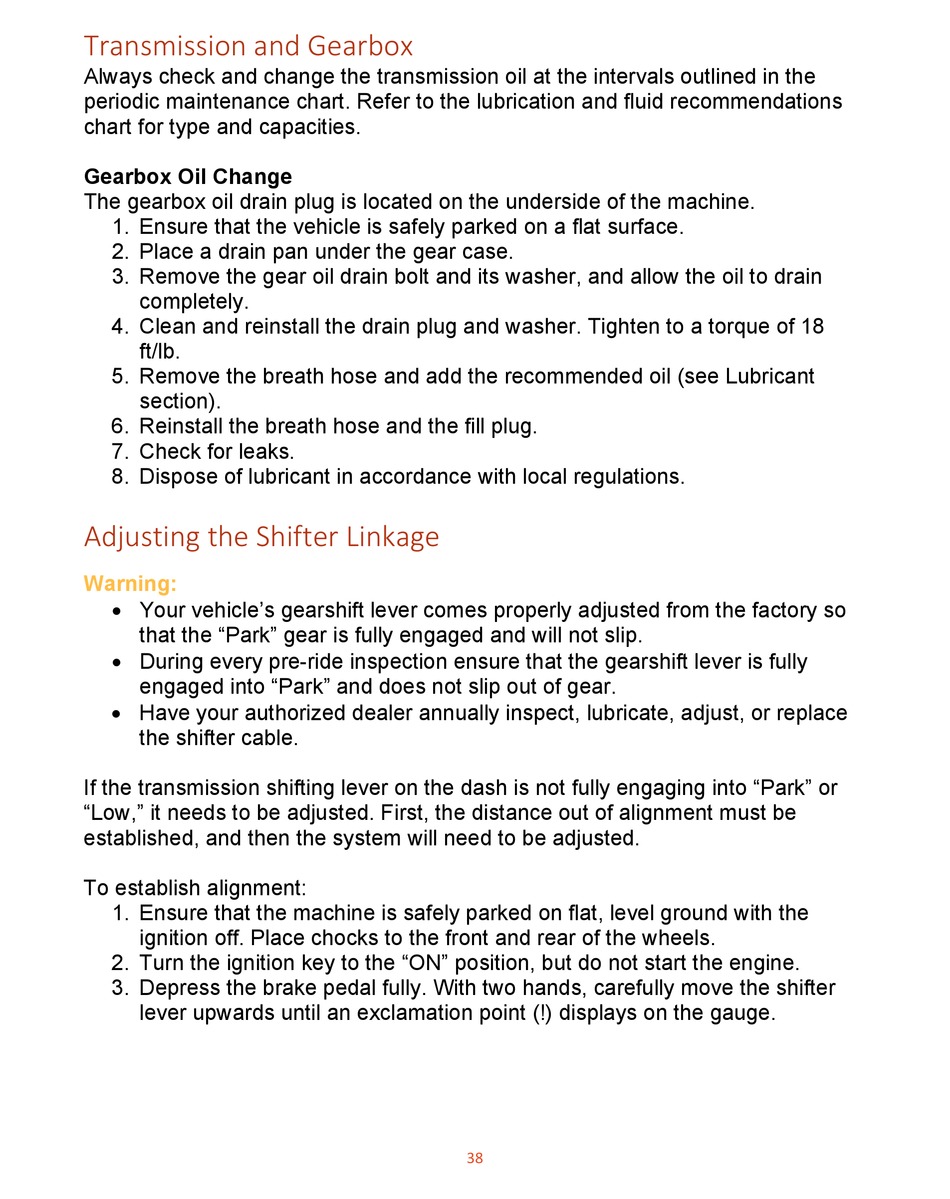

Transmission and Gearbox
Always check and change the transmission oil at the intervals outlined in the
periodic maintenance chart. Refer to the lubrication and fluid recommendations
chart for type and capacities.
Gearbox Oil Change
The gearbox oil drain plug is located on the underside of the machine.
1. Ensure that the vehicle is safely parked on a flat surface.
2. Place a drain pan under the gear case.
3. Remove the gear oil drain bolt and its washer, and allow the oil to drain
completely.
4. Clean and reinstall the drain plug and washer. Tighten to a torque of 18
ft/lb.
5. Remove the breath hose and add the recommended oil (see Lubricant
section).
6. Reinstall the breath hose and the fill plug.
7. Check for leaks.
8. Dispose of lubricant in accordance with local regulations.
Adjusting the Shifter Linkage
Warning:
 Your vehicle's gearshift lever comes properly adjusted from the factory so
that the "Park" gear is fully engaged and will not slip.
 During every pre-ride inspection ensure that the gearshift lever is fully
engaged into "Park" and does not slip out of gear.
 Have your authorized dealer annually inspect, lubricate, adjust, or replace
the shifter cable.
If the transmission shifting lever on the dash is not fully engaging into "Park" or
"Low," it needs to be adjusted. First, the distance out of alignment must be
established, and then the system will need to be adjusted.
To establish alignment:
1. Ensure that the machine is safely parked on flat, level ground with the
ignition off. Place chocks to the front and rear of the wheels.
2. Turn the ignition key to the "ON" position, but do not start the engine.
3. Depress the brake pedal fully. With two hands, carefully move the shifter
lever upwards until an exclamation point (!) displays on the gauge.
