Electrical
Double USB Port
The double USB Port is located on the driver's side next to the ignition switch.
The USB ports are both DC5V. The top port is 2.4A and the bottom is 1.0A.
They can both be used as chargers for any USB compatible device and will allow
USB connectivity with the 7" gauge.
 These outlets are activated when the key is switched to the "ON" position.
 Do not connect any device that draws more than 120 watts to this
connector or the battery may discharge rapidly or the outlet may fail.
 Do not use when wet
 Unplug all accessories when the vehicle key is switched to the "OFF"
position.
12V Accessory Port
Warning:
 Do not use the 12V accessory port to heat a cigarette lighter
Some models are equipped with a 12V accessory port.
 The port is activated when the key is switched to the "ON" position.
 Do not connect any device that draws more than 120 watts to this
connector or the battery may discharge rapidly or the outlet may fail.
 Do not use when wet
 Unplug all accessories when the vehicle key is switched to the "OFF"
position.
Adding Switches and In-Dash Accessories
The Intimidator is designed to allow the dealer to add more switches for
accessories and "built-in" accessories like a light bar or sound system. There are
two open slots in the switch panel of stock GC1K machines to allow for additional
accessories. To minimize the risk of damage to the machine, contact your
authorized dealer.

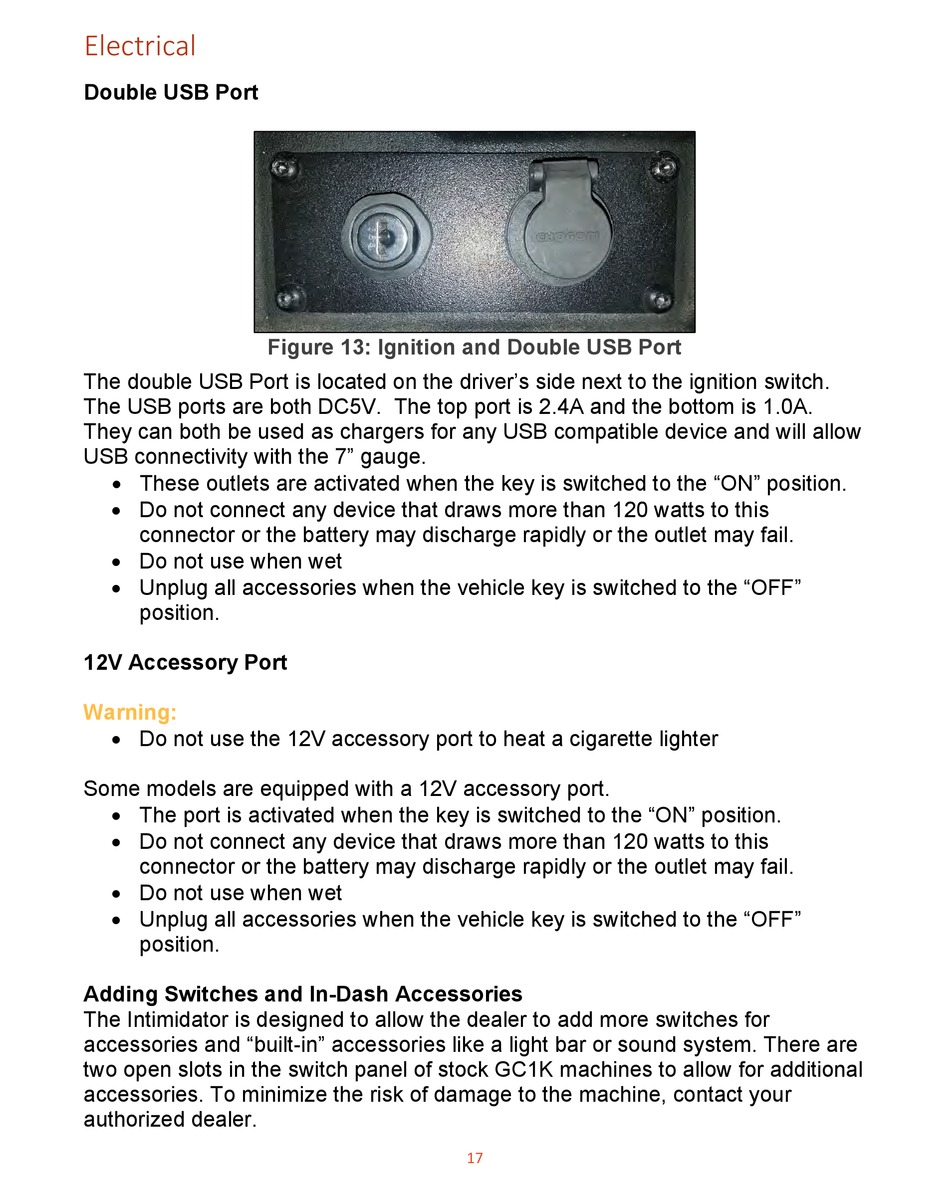

Figure 13: Ignition and Double USB Port
17
