When the gauge boots up it will open to the home screen. Displayed on the
screen are the following:
 Engine Revolutions Per Minute (RPM)
 Speed in Miles Per Hour (MPH)
 Fuel Level (percentage remaining)
 Current Gear
 Water Temperature
 Battery Voltage
 Bluetooth Access (7" only)
 Check Engine Fault Light
 Seat Belt Use Indicator
 Current Time
Basic Navigation Features
All display features are easily accessed through buttons, touch point commands,
and menus. Touch any button and all of the button controls will display briefly on
the screen.

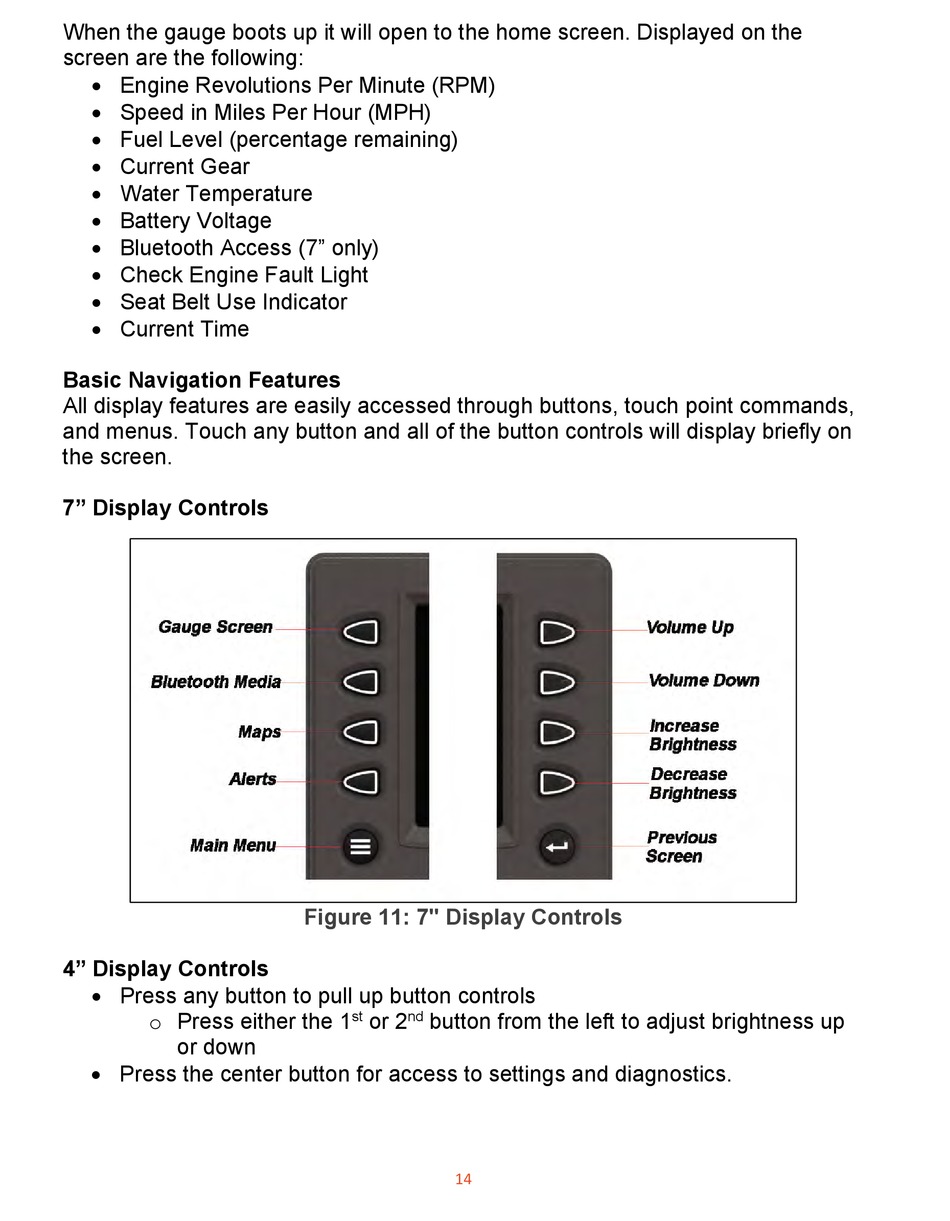

7" Display Controls
4" Display Controls
 Press any button to pull up button controls
o Press either the 1
or down
 Press the center button for access to settings and diagnostics.
Figure 11: 7" Display Controls
st or 2 nd button from the left to adjust brightness up
