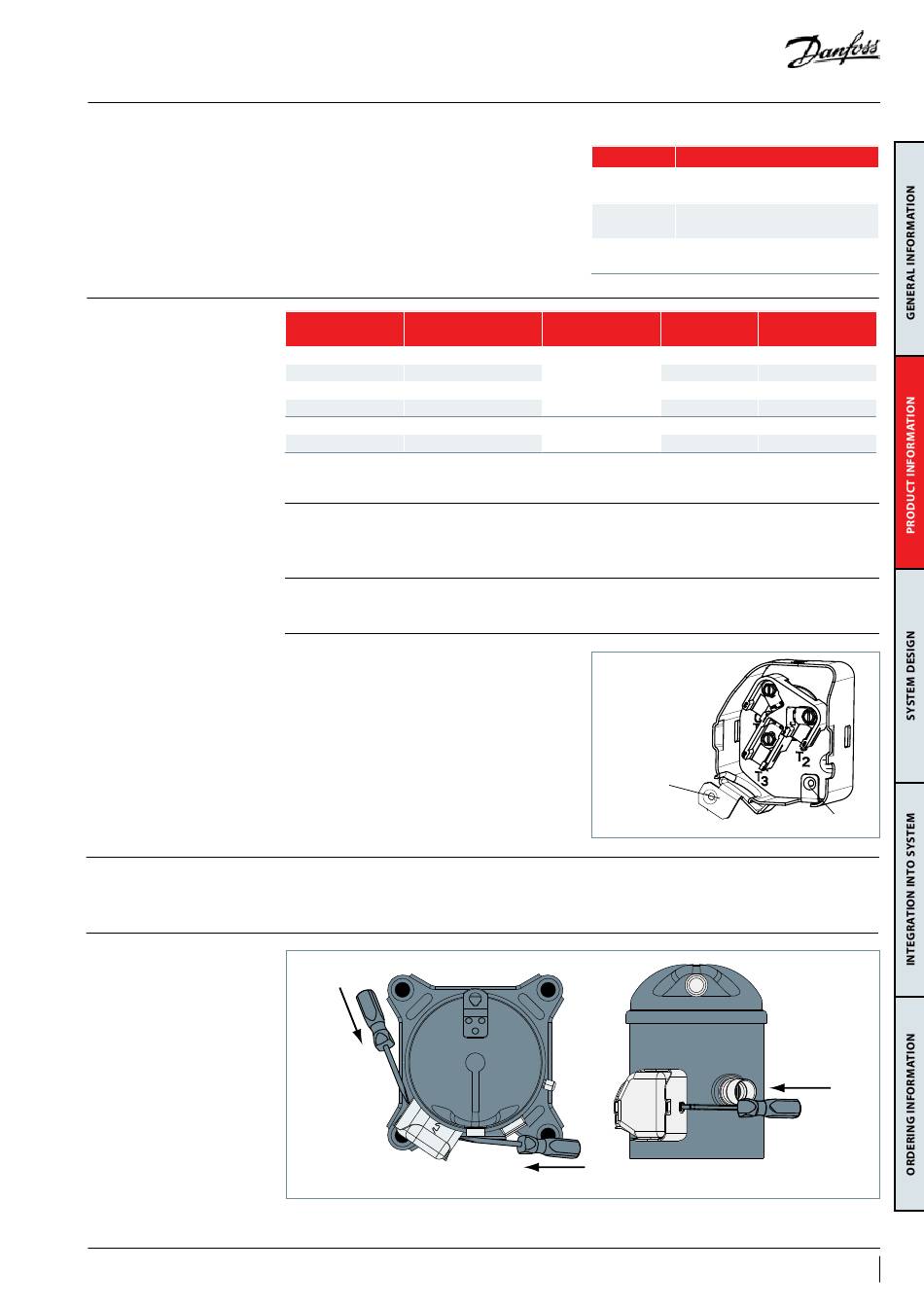

Electrical data, connections and wiring
Supply voltage
Compressor electrical
specifications
RLA (Rated Load Amp)
MOC (Max Operating
Current)
Wiring connections
Terminal cover mounting
Terminal cover removal
Because VZH compressors are powered by a
frequency converter, the mains frequency, 50 or
60 Hz, is no longer an issue. Only the mains
voltage is to be taken into account. With 3 motor
voltage codes, the most common mains voltages
and frequencies are covered. Never connect the
VZH compressor directly to the mains power
supply in case of motor burnt.
Compressor rated
Model
voltage (V)
400 VZH052-G
575 VZH052-H
400 VZH065-G
575 VZH065-H
208 VZH052-J
208 VZH065-J
RW: Winding resistance per winding, measured at motor terminals
RLA: Rated load Amp
Rated Load Amp value is the current value at
maximum load, in the operating envelope, and at
maximum speed and rated drive input voltage.
Max operating current is the maximum
continuous current which is 115% of RLA. This
Electrical power is connected to the compressor
terminals by Ø 4.8mm (3/16") screws. The
maximum tightening torque is 3Nm. Use a 1/4"
ring terminal on the power leads.
The terminal cover and gasket should be installed
prior to operation of the compressor. The terminal
cover has two outside tabs, 180 degrees apart,
push
Voltage code Mains voltage range of drive
J 200-240V / 3ph / 50Hz & 60Hz (±10%)
G 380-480V / 3ph / 50Hz & 60Hz (±10%)
H 525-600V /3ph / 50Hz & 60Hz (±10%)
RW(Ω) at 20°C line
RLA (A)
to line
22.6
22.6
0.177Ω±7%
27.2
27.2
44.2
0.053Ω±7%
55.3
RLA is the measured value at the compressor
terminals (after the drive).
value is printed on compressor nameplate.
MOC can be used to select cables and contactors.
EMC bracket to terminations
of shielded wire
that engage the terminal fence. When installing
the cover, check that it is not pinching the lead
wires.
push
