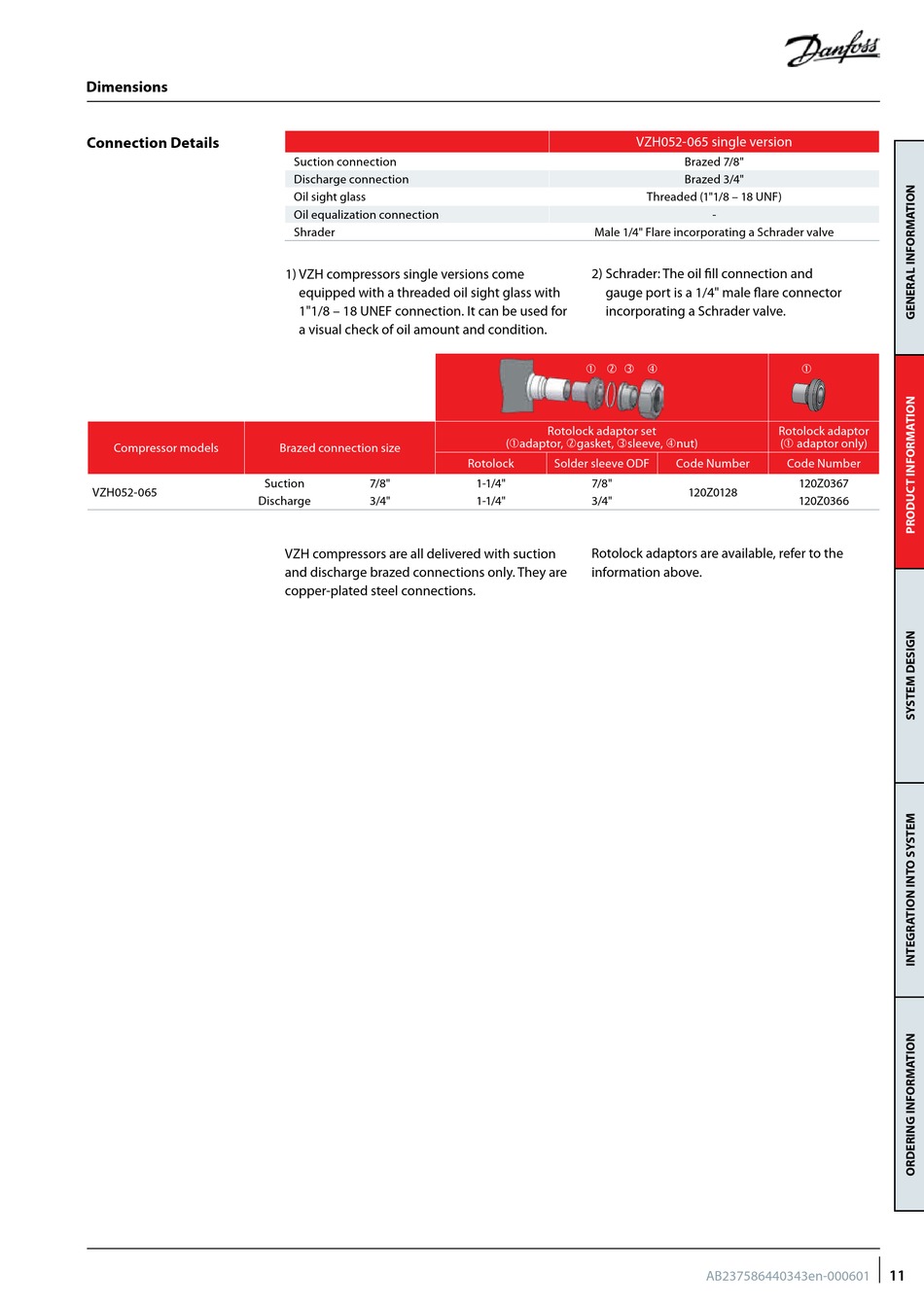

Danfoss VZH052 Manual page 11

Dimensions
Connection Details
Compressor models
VZH052-065
Discharge
Suction connection
Discharge connection
Oil sight glass
Oil equalization connection
Shrader
1) VZH compressors single versions come
equipped with a threaded oil sight glass with
1"1/8 – 18 UNEF connection. It can be used for
a visual check of oil amount and condition.
Brazed connection size
Suction 7/8"
3/4"
VZH compressors are all delivered with suction
and discharge brazed connections only. They are
copper-plated steel connections.
VZH052-065 single version
Male 1/4" Flare incorporating a Schrader valve
2) Schrader: The oil fill connection and
gauge port is a 1/4" male flare connector
incorporating a Schrader valve.
   
Rotolock adaptor set
(adaptor, gasket, sleeve, nut)
Rotolock Solder sleeve ODF
1-1/4" 7/8"
1-1/4" 3/4"
Rotolock adaptors are available, refer to the
information above.
Brazed 7/8"
Brazed 3/4"
Threaded (1"1/8 – 18 UNF)
-

Rotolock adaptor
( adaptor only)
Code Number Code Number
120Z0367
120Z0128
120Z0366
AB237586440343en-000601
