Commissioning

Attaching and aligning

26

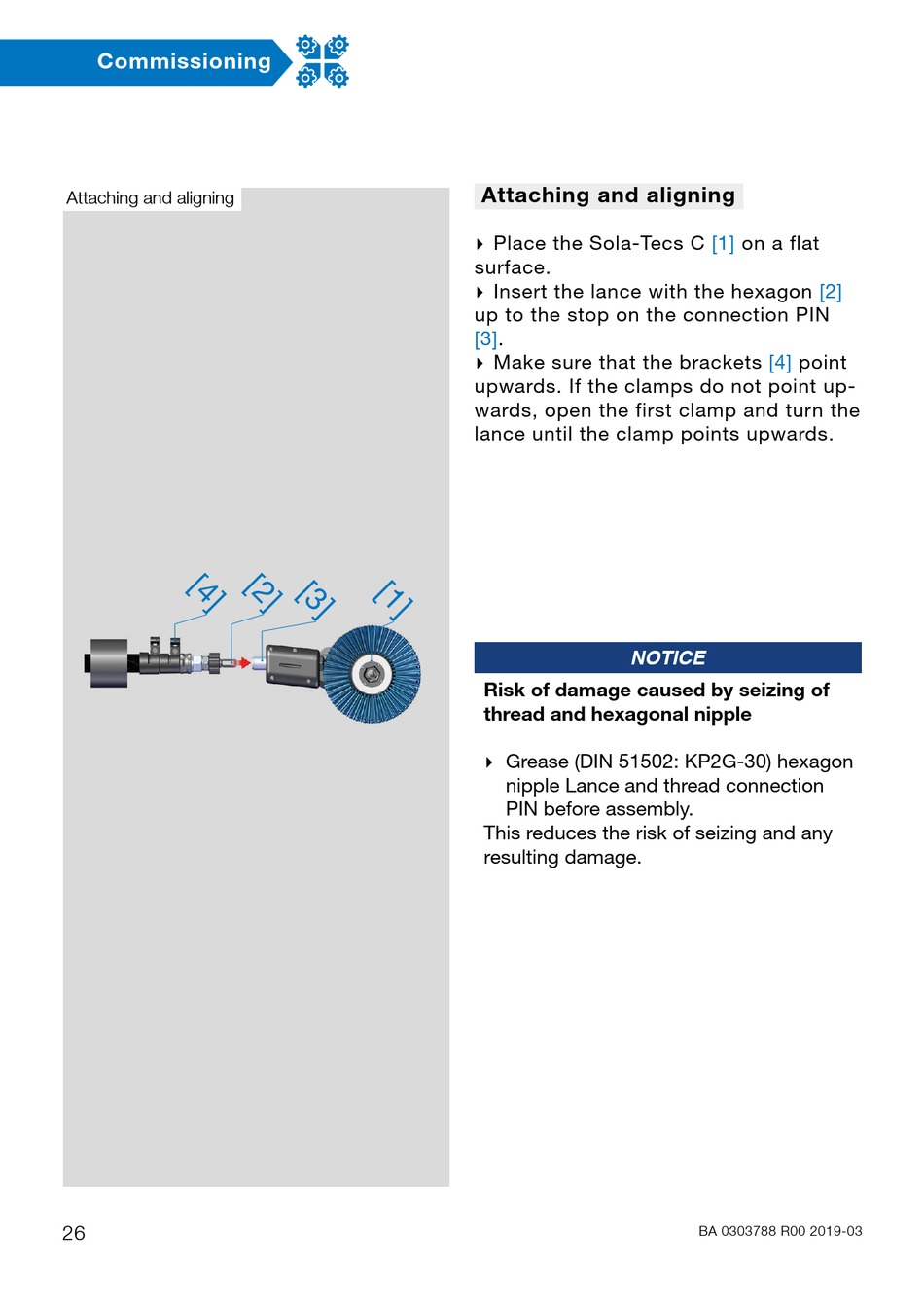

Attaching and aligning
� Place the Sola-Tecs C
surface.
� Insert the lance with the hexagon
up to the stop on the connection PIN
[3].
� Make sure that the brackets
upwards. If the clamps do not point up-
wards, open the first clamp and turn the
lance until the clamp points upwards.
NOTICE
Risk of damage caused by seizing of
thread and hexagonal nipple
�AGrease (DIN 51502: KP2G-30) hexagon
nipple Lance and thread connection
PIN before assembly.
This reduces the risk of seizing and any
resulting damage.
[1] on a flat
[2]
[4] point
BA 0303788 R00 2019-03
