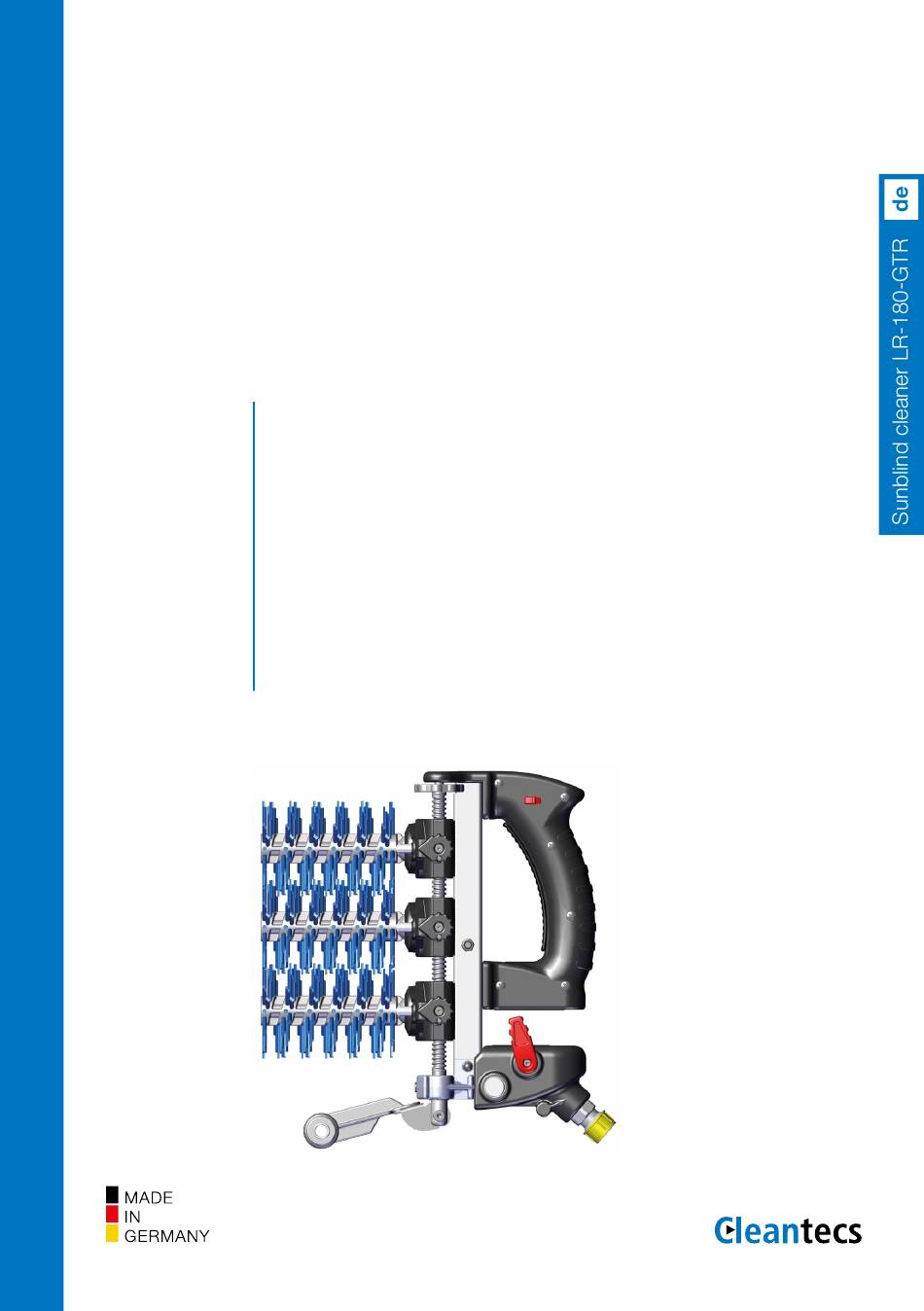

- Page 1 Sunblind cleaner LR-180-GTR Operating instructions Year of construction 2010 … SN 0006... LR-180-GTR BA 0304972 R00 2020-08 Operating instructions for the LR-180-GTR...
-
Page 2: Table Of Contents
Table of contents Basics Safety information Explanatory information Overview of components and scope of delivery with the LR-180-GTR sunblind cleaner How does the LR-180-GTR work? Components and their function Intended use Use contrary to the intended purpose or prohibited use... - Page 3 How do I move the LR-180-GTR when cleaning? How do I stop the LR-180-GTR? What should I do if working with the product is interrupted for longer periods? Decommissioning LR-180-GTR Disconnecting How do I disconnect the LR-180-GTR from the pressure washer? BA 0304972 R00 2021-08...
- Page 4 Table of contents Maintenance How to clean and preserve the LR-180-GTR How do I clean the LR-180-GTR? Preserving the system Lubricating the system Transport and storage LR-180-GTR transport and storage Transport + preparation Storage + preparation Disposal What happens to a waste product?
- Page 5 Notes Notes BA 0304972 R00 2021-08...
- Page 6 Visit our homepage at regular intervals and check whether there is a more up-to-date version of the operating manual. The operating instructions are intended for... LR-180-GTR from year of manufacture 2010, serial number 0006. The revision level of the operating instructions is R00. BA 0304972 R00 2021-08...
-
Page 7: Basics
Fundamentals Components and functions of the LR-180-GTR Here you will find information about: Components of the system, tools for maintenance. BA 0304972 R00 2021-08... -
Page 8: Safety Information
Fundamentals Explanation of notices Safety notices The notices are for your safety. The notices can be found in the general safety sec- tion and are always accompanied by an action that requires specific attention. Failure to comply will lead to serious injury or death. DANGER Danger to life in severe weather conditions A Never work during a storm. -
Page 9: Explanatory Information
Fundamentals Explanatory information You will find these notices in the illustration area with a grey background. They help you to find the right figure for the heading in the text, understand the details better, follow steps, understand movements and identify the position in the room. The title of the image indicates the Image title text... - Page 10 Fundamentals Overview of the components and scope of delivery of the LR-180-GTR sunblind cleaner BA 0304972 R00 2021-08...
- Page 11 Fundamentals Basic unit Round brush Optional accessories: Splash guard Optional accessories: Transport case BA 0304972 R00 2021-08...
-
Page 12: How Does The Lr-180-Gtr Work
LR-180-GTR has a support stand which, by folding, fulfils the function of an addi- The water for operating the cleaner must tional handle. -
Page 13: Components And Their Function
Drive housing ing. Here, the stored energy in the water is converted into mechanical energy. Handle: The LR-180-GTR is held and guided during work by a handle that can be easily removed to dismantle the drive housings for cleaning and repair work. - Page 14 Fundamentals Round brush: The round brush removes Round brush the dirt from the sunblind. The round brush is available to fit different sun- blind sizes. Nozzles: The nozzles on the right and left of the drive housing wet the sun- blinds with water and wash away the loosened dirt from the slat.
- Page 15 Fundamentals Intended use Here you will find the following information: For what purposes may the LR-180-GTR be used, where may the LR-180-GTR be used, who may use the LR-180-GTR? BA 0304972 R00 2021-08...
-
Page 16: Intended Use
Requirements of the system user � Pressure 120 bar � Flow rate 10 l/min The user of the LR-180-GTR works in � Temperature Cold water the commercial sector. Performance data in normal op- Operator: The user has received suffi-... -
Page 17: Ec Declaration Of Conformity
Fundamentals EC Declaration of Conformity BA 0304972 R00 2021-08... -
Page 18: Safety Principles
Safety principles General safety instructions Important instructions for safe use of the system and for ensuring safe cleaning. BA 0304972 R00 2021-08... -
Page 19: For Your Safety
Safety principles For your safety Important instructions for safe use of the system. These instructions enable you to protect yourself and others from dangerous situations and injuries. DANGER Danger to life in severe weather conditions A Never work during a storm. This prevents the risk of being struck by lightning. - Page 20 Safety principles CAUTION Risk of injury during installation A Wear gloves during installation. This will protect your skin from abrasions and pinching. CAUTION Risk of injury due to incorrect assembly of connectors A Always check connection points. This prevents injury caused by connector components breaking loose and being ung around.
- Page 21 Safety principles CAUTION Risk of injury due to parts being flung away A Check the surface to be cleaned for objects before starting cleaning. This will protect you from injuries caused by parts being ung away. CAUTION Risk of injury from flying dirt and parts A Wear safety goggles when working.
-
Page 22: Working Safely
Working safely Safe operation Here you will find information about: choosing a safe cleaning location, sources of danger in the working area, sources of danger when working. BA 0304972 R00 2021-08... -
Page 23: Working Safely
WARNING Risk of injury from falling This describes how to work safely with AUse a fall-arrest system. the LR-180-GTR. This will protect you from injuries from falling off the roof. Selecting a safe starting point � Essentially, the place of use and its accessibility determine the starting point for the cleaning work. - Page 24 Notes Notes BA 0304972 R00 2021-08...
-
Page 25: Commissioning
Commissioning Commissioning the LR-180-GTR Here you will find information about preparing the LR-180-GTR for work. BA 0304972 R00 2021-08... -
Page 26: Preparation For Connecting The Sunblind Cleaner
In this step, the sunblind cleaner is pre- pared for connection. Unpacking and checking new products � After unpacking the LR-180-GTR, please check that all components are present and that there is no damage. Checking before connection Round brush �... -
Page 27: Select Round Brush
Commissioning Select round brush Select round brush To select the right round brush for your cleaning, measure the width of a sunblind [9]. The diameter [11] of the matching round brush [10] corresponds to the sunblind width. Example: If your sunblind has a width of 80 mm, you need the round brush with diameter 80 mm. - Page 28 Commissioning � Align the pegs [1] of the driving Crown cone and driver crown with the recesses of the driver [2]. � Push the round brush on until it engages [4]. Please note: Always apply the force for mounting and dismounting parallel to the brush axis.
-
Page 29: Check The High-Pressure Filter In The Connection Nipple
Preparing the high-pressure cleaner Connect the high-pressure cleaner Switch to stop according to the operating instructions of the unit. Connect the LR-180-GTR to the high-pressure cleaner Connecting the sunblind cleaner to the high-pressure cleaner: � Rinse the high-pressure hose by... - Page 30 Commissioning � Place the LR-180-GTR on its stand Place on stand and protective cap [2]. � Remove the protective cap from the connection nipple [3]. � Screw the high-pressure hose [4] of the high-pressure cleaner to the con- nection nipple [3].
-
Page 31: Working With The Product
Working with the product Working with the LR-180-GTR Here you will find information about working with the LR-180-GTR. BA 0304972 R00 2021-08... -
Page 32: Working With The Lr-180-Gtr
Set pressure to minimum LR-180-GTR Here we describe how to work with the LR-180-GTR sunblind cleaner: � How do I start the LR-180-GTR? � How do I hold the LR-180-GTR when working? � Where do I start the cleaning process? �... -
Page 33: How Do I Hold The Lr-180-Gtr When Working
� Increase the pressure from the high- pressure cleaner to the working pressure of 120 bar [8]. How should I hold the LR-180-GTR when working? � When working, the stand must be folded back. [Start position] Start high-pressure cleaner Fold in stand... -
Page 34: Where Do I Start The Cleaning Process
Working with the product Ergonomic holding position � Hold the LR-180-GTR with one hand on the handle and with the other hand on the stand [2]. This allows you to hold and guide the machine in an ergonomic movement. Where do I start the cleaning process? �... -
Page 35: How Do I Move The Lr-180-Gtr When Cleaning
Working with the product How do I move the LR-180-GTR Cleaning movement when cleaning? � Push the machine slowly and horiz- ontally over the sunblinds with a right-left movement [6]. � Repeat the procedure until the sunblind has been satisfactorily cleaned. -
Page 36: How Do I Stop The Lr-180-Gtr
Working with the product How do I stop the LR-180-GTR? Stop the LR-180-GTR � To switch off the rotation of the round brushes on the LR-180-GTR, set the start-stop switch to the “Stop” position. What do I do if working with the... -
Page 37: Decommissioning
Decommissioning Take LR-180-GTR out of service Here you will find information about dismantling the LR-180-GTR. BA 0304972 R00 2021-08... -
Page 38: Lr-180-Gtr Disconnecting
Decommissioning Disconnecting the Switch off high-pressure cleaner LR-180-GTR This describes how to take the sunblind cleaner out of operation. How do I disconnect the LR-180- GTR from the pressure washer? � Switch the high-pressure cleaner off. Reduce back pressure � Build up the pressure in the... - Page 39 Please note: Be careful not to drag your high-pressure hose with the quick connectors over dirty or dusty sur- faces. This prevents dirt from getting into the high-pressure hose and being flushed into your LR-180-GTR during Screw on protective cap operation. BA 0304972 R00 2021-08...
-
Page 40: Maintenance
Maintenance LR-180-GTR cleaning and maintenance Here you will find information about how to maintain the LR-180-GTR. BA 0304972 R00 2021-08... -
Page 41: How To Clean And Preserve The Lr-180-Gtr
DIN 51502: KP2G-30. � Grease the connection nipple and How do I clean the LR-180-GTR? the thread on the outside with grease according to DIN 51502: KP2G-30. Clean the system thoroughly to remove dirt that collects in day-to-day opera- tion. -
Page 42: Transport And Storage
Transport and storage Transport and storage Here you will find information about transporting and storing the LR-180-GTR. BA 0304972 R00 2021-08... -
Page 43: Lr-180-Gtr Transport And Storage
(chassis, handle, round brushes, brush axle ...). � Clean and maintain the machine as de- scribed in the Maintenance chapter. � Store the LR-180-GTR in a place protect- NOTICE ed from frost, shocks and dirt. Risk of damage from frost... -
Page 44: Disposal
Disposal Disposing of the system Here you will find information about the disposal of the product and the associated components. BA 0304972 R00 2021-08... -
Page 45: What Happens To A Waste Product
Disposal What happens to the waste? Packaging � The packaging is made of cardboard and can be recycled. Chassis, brush axles, Stand, distributor, Start-Stop switch � These components can go into metal recycling. Handle, plastic housing, round brushes � These components can be disposed of with non-recyclable waste. - Page 46 Notes Notes BA 0304972 R00 2021-08...
- Page 47 Notes Notes BA 0304972 R00 2021-08...
- Page 48 Cleantecs GmbH | Grundweg 10 | 89250 Senden | Germany |+49 (0)7307 - 9265 0 | info@cleantecs.de | www.cleantecs.com...
