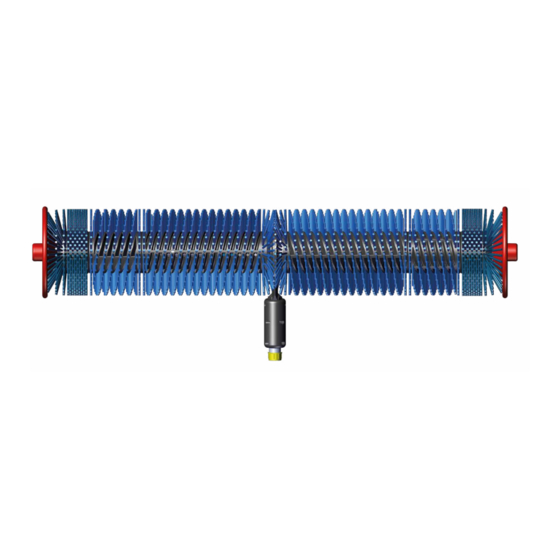

- Page 1 SOLA-TECS C Operating Instructions CY 2010 … SN 0139 … C400 | C600 | C800 | C1000 BA 0303788 R00 2019-10 Operating instructions for the Sola-Tecs C cleaning system.
-
Page 2: Table Of Contents
Table of Contents Basics Overview of the cleaner components Included with the cleaner Accessories required for operation Cleaner tool kit How does the Sola-Tecs C work Components and their function Intended Use Requirements for the photovoltaic surfaces to be cleaned Requirements for the system user Space requirement for the Sola-Tecs C Requirements for the high pressure cleaner... - Page 3 Table of Contents Commissioning Preparation for mounting the cleaner Removing the transport cap Checking the gearbox Checking the high-pressure filter Mounting cleaner on the lance Flushing the system Attaching and aligning Screwing on the telescopic lance and the modular pole Working Working with the cleaner Placing the cleaner at the starting point...
- Page 4 It's IMPORTANT, that you READ THE OPERATING INSTRUCTIONS CAREFULLY BEFORE USE and KEEP FOR FUTURE REFERENCE. The operating instructions are intended for... Sola-Tecs C from 2010 and later Serial number 0139 BA 0303788 R00 2019-03...
-
Page 5: Basics
Basics Components and functions of the Sola-Tecs C system Here you will find information about: Components of the cleaner, tools for maintenance, accessories important for operation BA 0303788 R00 2019-03... -
Page 6: Overview Of The Cleaner Components
Basics Overview of the cleaner components BA 0303788 R00 2019-03... -
Page 7: Included With The Cleaner
Basics Included with the cleaner Basic unit Sola-Tecs C Brush roller 4F 240 R + L Brush roller 4F 100 R + L Brush roller 4F Cover R + L Brush set C400 Brush set C600 Brush set C800 Brush set C1000 Transport cap Screw cap BA 0300931 R00 2019-03... -
Page 8: Accessories Required For Operation
Basics Accessories required for operation The Sola-Tecs C belongs to a cleaning system. The accessories listed here are required for operation. Splash guard C400 Splash guard C600 Splash guard C800 Splash guard C1000 Telescopic lance SOLA-LITE VCTE 12 Telescopic lance SOLA-LITE VCTE 15 Modular pole SOLA-LITE VCMO 1.8 High pressure cleaner with high pressure hose NW8 (picture is an example) Lance bow, internal... -
Page 9: Cleaner Tool Kit
Basics Cleaner tool kit Socket wrench size 8 Hexagon socket size 2.5 BA 0303788 R00 2019-03... -
Page 10: How Does The Sola-Tecs C Work
Basics How does the Sola-Tecs C work the cleaner must be ultrapure water. This water must be largely free from all minerals. The quality of the water can The SOLA-TECS C system consists of be determined with a TDS meter. The a gearbox with a water turbine drive maximum conductivity of the water and brush rollers for cleaning. -
Page 11: Components And Their Function
Basics Components and their function Gearbox housing The gearbox housing is the drive unit of the cleaner. All components neces- sary for the drive of the brush rollers are installed here. The brush rollers are mounted on the axles of the gearbox housing. - Page 12 Basics Intended Use Here you will find the following information: What may the cleaner be used for, where may the cleaner be used, who may use the cleaner? BA 0303788 R00 2019-03...
-
Page 13: Intended Use
Basics Intended Use personnel are able to carry out the work assigned to them and to independently recognise possible dangers and avoid The Sola-Tecs C system is designed risks. for cleaning photovoltaic modules in the commercial sector. A high-pressure The following groups of people are not cleaner is required to drive the Sola- allowed to operate the Sola-Tecs C: Tecs C. -
Page 14: Requirements For The Lance
Basics Introduction Requirements for the lance Performance data in normal operation � The lance must be approved for a weight of at least 5 kilograms in exten- � The Sola-Tecs C generates approx. ded operating state. 700 revolutions per minute in the pres- �... -
Page 15: Ec Declaration Of Conformity
Basics EC Declaration of Conformity BA 0303788 R00 2019-03... - Page 16 BA 0303788 R00 2019-03...
-
Page 17: Safety Principles
Safety Principles General Safety Instructions Important instructions for the safe use of the system and for establishing safe cleaning operations. BA 0303788 R00 2019-03... -
Page 18: For Your Safety
Safety Principles For your safety Important instructions for the safe use of the system. This allows you to protect yourself and other persons from dangerous situations and from injury. DANGER Danger to life due to thunderstorms �A Avoid using the machine during thunderstorms. This protects you from injury caused by lightning and from hypothermia. - Page 19 Safety Principles CAUTION Risk of injury when lifting heavy parts �A When lifting the machine, lift it ergonomically correctly. This will protect you from back-strain injuries. CAUTION Risk of injury from overloading/strain �A Take regular breaks. This will prevent injuries caused by physical and mental overload and fatigue.
-
Page 20: Working Safely
Working Safely Safe cleaning operation Here you will find information about: the selection of a safe cleaning location, hazards in the working area, hazards when working. BA 0303788 R00 2019-03... -
Page 21: Working Safely
Working Safely � The starting point for cleaning must be Working Safely easily accessible. Observing hazards in the working This section describes how to work safely with the Sola-Tecs C system. area Selecting a safe starting point � In the immediate working environment, there must be no high-voltage conduc- tive equipment (cables, switch cabinets, �... -
Page 22: Safety When Cleaning
Working Safely Safety when cleaning CAUTION Risk of injury from defective hoses and � When cleaning, make sure that you do connections not damage any components or lines. �ACheck all high-pressure hoses and connections for damage. This will protect you from being injured by WARNING escaping hard water jets. -
Page 23: Commissioning
Commissioning Commissioning the Sola-Tecs C Here you will find information about how to prepare the cleaner for work. BA 0303788 R00 2019-03... -
Page 24: Preparation For Mounting The Cleaner
Commissioning Infobox The following tool is required. Preparation for Removing the transport cap mounting the cleaner In this step, the Sola-Tecs C is prepared for installation. Removing the transport cap � Clamp the cleaner between your thighs and pull the transport caps upwards. -
Page 25: Mounting Cleaner On The Lance
Commissioning Turn the socket wrench until it clicks Checking the high-pressure filter into place. Turn the screw to the left until the HD filter can be loosened. Check the HD filter for contamination. Clean or replace the HD filter if neces- sary. -
Page 26: Attaching And Aligning
Commissioning Attaching and aligning Attaching and aligning � Place the Sola-Tecs C on a flat surface. � Insert the lance with the hexagon up to the stop on the connection PIN [3]. � Make sure that the brackets point upwards. If the clamps do not point up- wards, open the first clamp and turn the lance until the clamp points upwards. -
Page 27: Screwing On The Telescopic Lance And The Modular Pole
Commissioning Screwing on the telescopic lance Screwing on the telescopic lance and the modular pole � Screw the quick connector onto the connection PIN by turning it clockwise. Make sure that the connec- tion PIN will slide when screwing it on. �... -
Page 28: Working
Working Working with the Sola-Tecs C Here you will find information about working with the cleaner. BA 0303788 R00 2019-03... -
Page 29: Working With The Cleaner
Working Working with the Preselecting thrust direction cleaner Here, working with the cleaner is described. How do I switch on the cleaner? How do I work on the photo- voltaic modules? Placing the cleaner at the starting point � The direction of rotation of the brush roller gives the cleaner a thrust direc- tion and it can be operated by pulling it away from the user... - Page 30 Working � Take the lance with the Sola-Tecs C Hold on to the lance in your hand. � Position yourself at the starting point of the surface to be cleaned. � Place the cleaner at the starting point of the surface to be cleaned on the photovoltaic modules [5].
- Page 31 Working � Switch on the high-pressure cleaner Switch on high-pressure cleaner [6]. � Set the working pressure in the range of 100 - 120 bar. We recommend our water stop or our radio remote control accessories. WARNING Risk of injury due to excessive operating pressure �ADo not operate the machine above the speci ed maximum operating...
-
Page 32: Cleaning With The Sola-Tecs C
Working Cleaning with the Sola-Tecs C The cleaning movement � Guide the cleaner vertically away from you and back towards you in linear, even movements (similar to a sweeping movement). � Move the cleaner in a horizontal direction and repeat the cleaning movement. -
Page 33: Transport And Storage
Transport and Storage Transport and storage Here you will find information about transporting and storing the cleaner. BA 0303788 R00 2019-03... -
Page 34: Transporting And Storing The Cleaner
Transport and Storage Infobox We recommend our wooden trans- port box accessory. Transporting and Emptying the cleaner Storing the Cleaner This section explains how to transport and store the cleaner safely and without damage. CAUTION Put on transport cap Risk of injury during disassembly �AWear gloves during disassembly. -
Page 35: Preparing For Storage
Transport and Storage Original box Preparing for storage � Hold the cleaner with the connection facing the floor and let the water run out of the cleaner. � Place the cleaner with the end of the brush on the floor and attach the red transport cap. -
Page 36: Disposal
Disposal Disposing of the cleaner Here you will find information about product disposal and the associated components. BA 0303788 R00 2019-03... -
Page 37: What Happens With The Waste
Disposal What happens with the waste? Packaging � The packaging is made of cardboard and can be recycled. Resin for ultrapure water production � Please refer to the safety data sheet for disposal instructions. Gear housing, planetary gear and brush roller �... -
Page 38: Ba 0303788 R00 2019-03
BA 0303788 R00 2019-03... - Page 39 BA 0303788 R00 2019-03...
- Page 40 Cleantecs GmbH | Grundweg 10 | 89250 Senden | +49 (0)7307 - 9265 0 | info@cleantecs.de | www.cleantecs.com...
