Troubleshooting; Troubleshootinng Guide - Code 3 SuperVisor Flex Series Installation And Operation Instructions Manual

Changing Flash Patterns:
To change the flash patterns on the LED Light Heads, remove the mounting screws that attach the Cover to gain access to the printed circuit
boards inside (see the exploded view on Page 10). Momentarily short and release the pattern change prongs as shown below to change
patterns. Carefully replace the cover and fasten cover mounting screws.
Note: Be extremely careful to replace the wiring such that you don't pinch a wire when you replace the cover. Test the unit to be
sure that it works as intended.
1. Momentarily short and
release to change patterns.
2. Hold for 5 seconds to reset
the flash pattern to the first
pattern.

Troubleshooting:

All SuperVisor Flex Bars are thoroughly tested prior to shipment. However, should you encounter a problem during installation
or during the life of the product, follow the guide below for information on repair and troubleshooting. Additional information
may be obtained from the factory technical help line at 314-996-2800.
Note: LED modules must be replaced as a module. There are no user serviceable parts.
PROBLEM
LED module not operating when powered. N/A
JP1

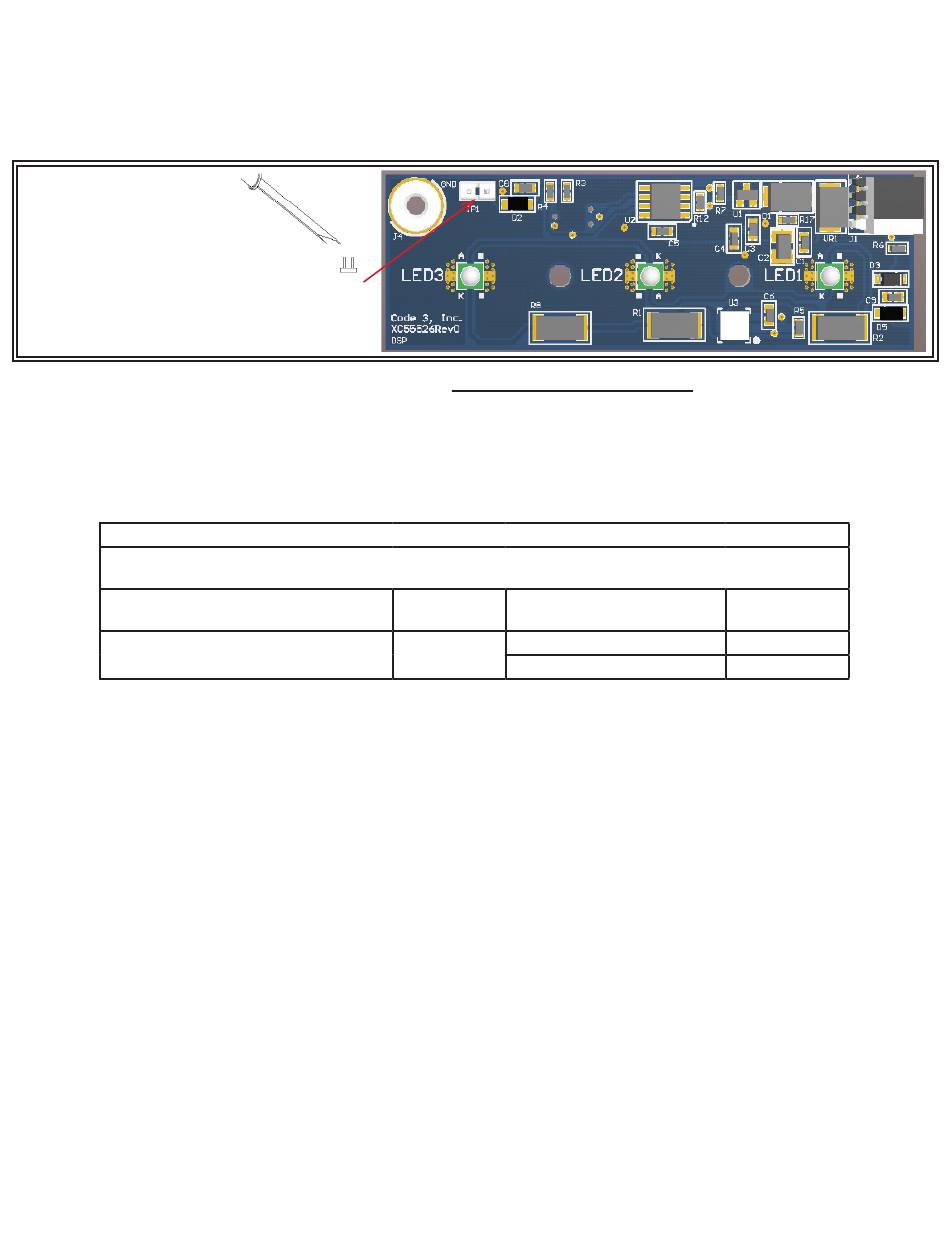

Torus 3LED PCB Shown Flash Pattern Header for Torus

TROUBLESHOOTINNG GUIDE

QUESTIONS POSSIBLE CAUSE
Bad power / ground connection Fix connection
Defective module
SOLUTION
Replace module
