7. Installation

7.1. Connect
 This device must be installed by qualified personnel;
 This device must not be installed directly outdoors;
 Installation consists of mounting the device, connecting to an IP network,
connecting the I/O, providing power and configuring via a web browser.
7.2. Power supply requirements

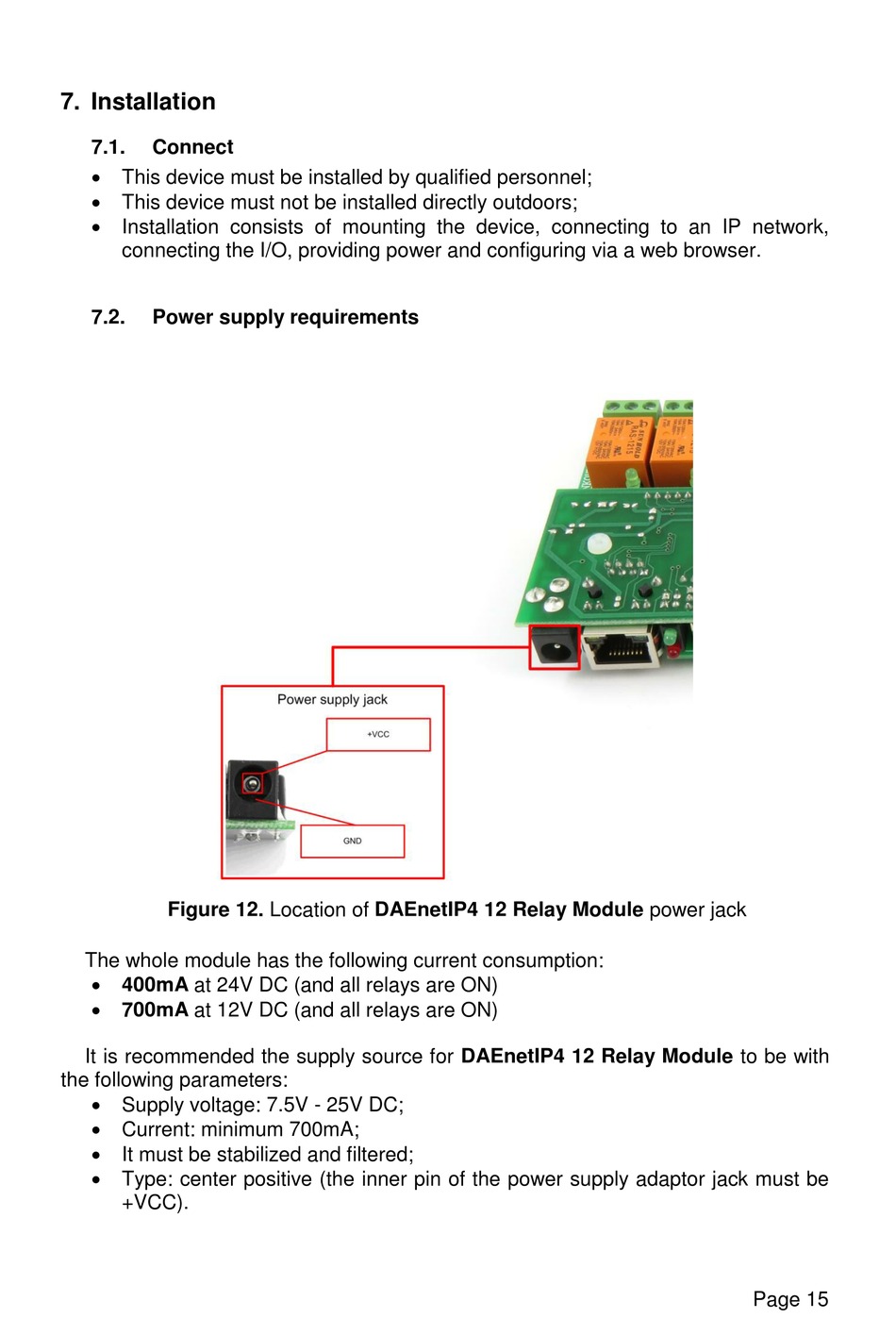

Figure 12. Location of DAEnetIP4 12 Relay Module power jack
The whole module has the following current consumption:
 400mA at 24V DC (and all relays are ON)
 700mA at 12V DC (and all relays are ON)
It is recommended the supply source for DAEnetIP4 12 Relay Module to be with
the following parameters:
 Supply voltage: 7.5V - 25V DC;
 Current: minimum 700mA;
 It must be stabilized and filtered;
 Type: center positive (the inner pin of the power supply adaptor jack must be
+VCC).
