5. Analog Inputs

The analog inputs are extended to 0-10V DC. Currently there is 270K resistor
connected in sequence of the ADC, so the resistor divisor is calibrated to work in the
0-10V DC range.
The input voltage range of 0-10V DC can be changed up-on request.
The resistors used for building the module are +-5%. The ADC of the
DAEnetIP4 also have some tolerance, so additional software calibration
may be necessary.

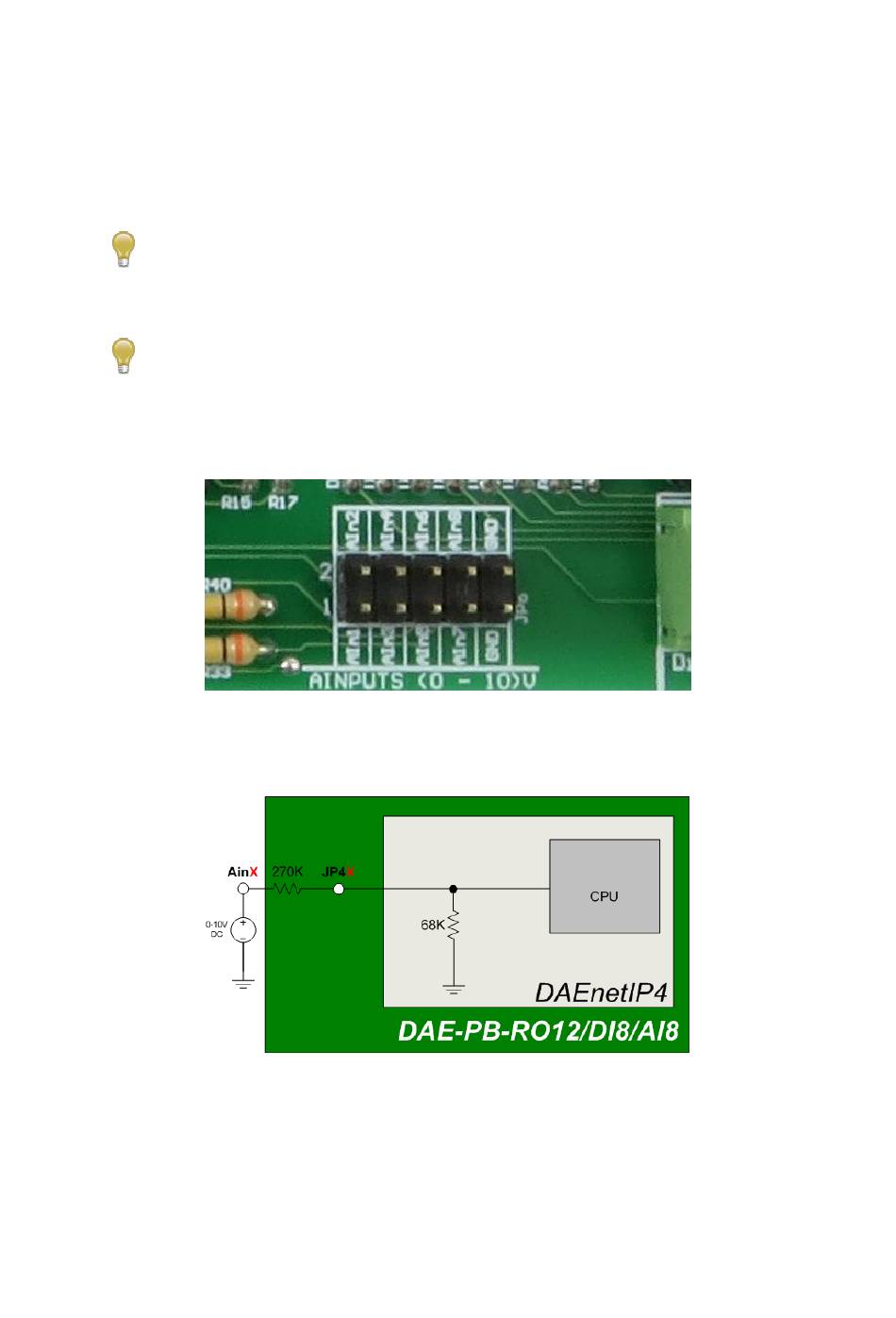

Figure 8. Location of the analog inputs port
Figure 9. Analog inputs extension schematic
