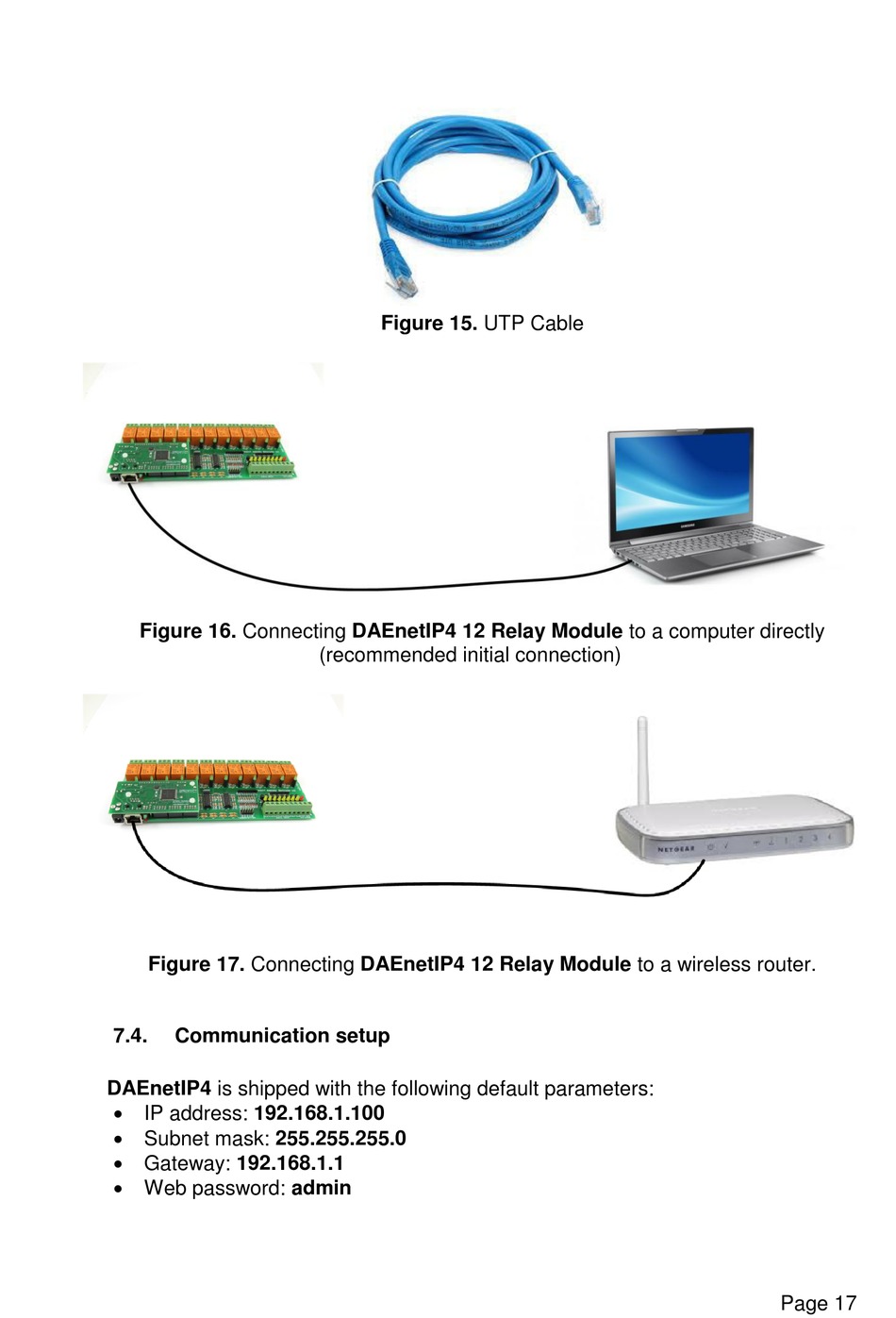

Figure 15. UTP Cable
Figure 16. Connecting DAEnetIP4 12 Relay Module to a computer directly
(recommended initial connection)
Figure 17. Connecting DAEnetIP4 12 Relay Module to a wireless router.
7.4.
Communication setup
DAEnetIP4 is shipped with the following default parameters:
IP address: 192.168.1.100
Subnet mask: 255.255.255.0
Gateway: 192.168.1.1
Web password: admin
Page 17
