2. Overview

Features:
 12 x SPDT relays (NO,C,NC) - 10A / 250VAC, 15A / 120VAC, 10A /
28VDC;
 8 x digital inputs port with schmitt trigger (0-12VDC or 0-24VDC). The
inputs are combined with 16 bit cyclic counters as well;
 8 x analog inputs (0-10VDC)
 2 x PWM outputs (coming from DAEnetIP4)
 Led indicators for: relays, digital inputs, power on
 Sensor supply output
 Some of the above parameters can be changed by request
MPN reference (ordering codes):
 DAE-PB-RO12-12V/DI8/AI8+DAEnetIP4 (for 12V version)
 DAE-PB-RO12-24V/DI8/AI8+DAEnetIP4 (for 24V version)

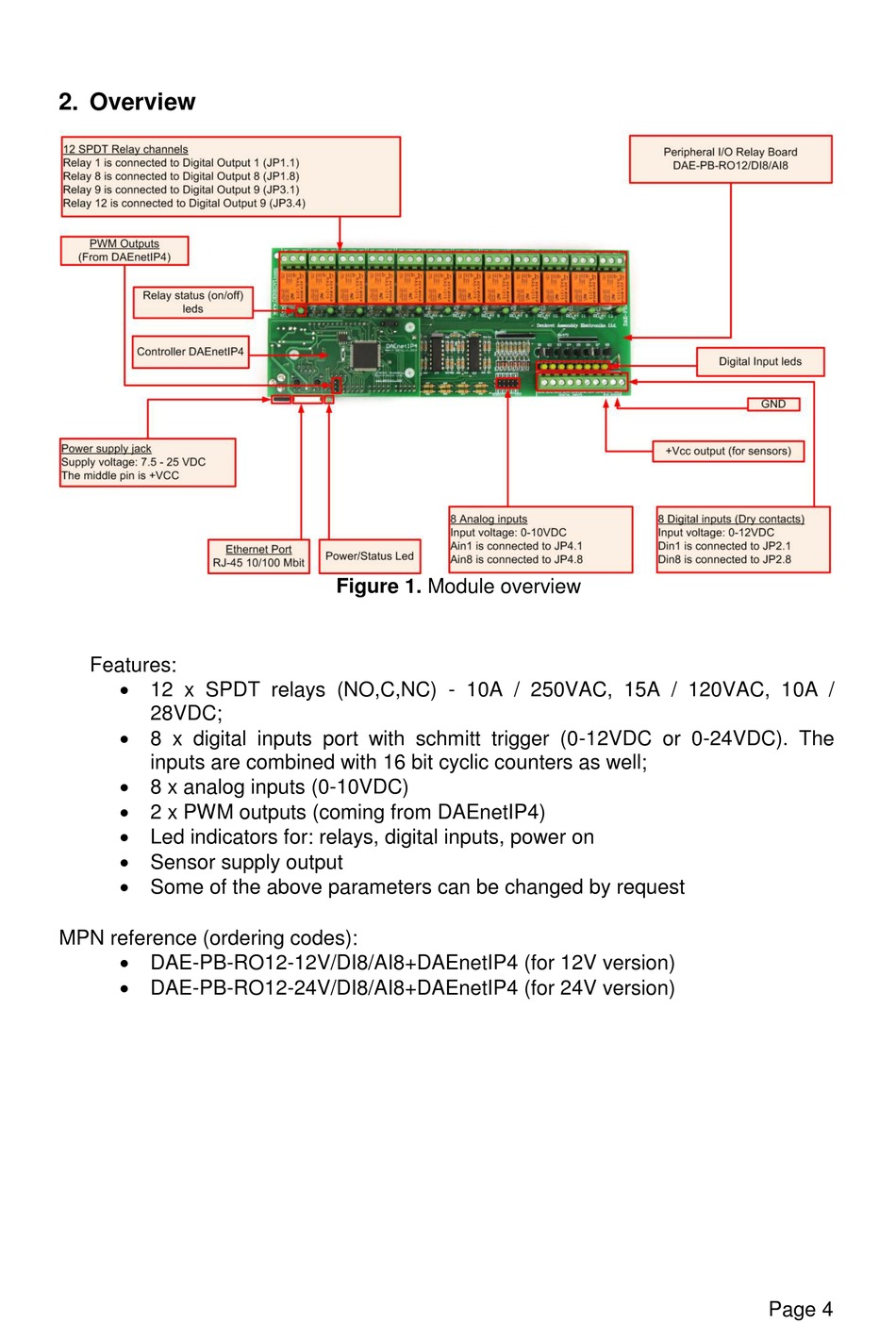

Figure 1. Module overview
Page 4
