5. Installation

5.1. Connect
 This device must be installed by qualified personnel;
 This device must not be installed directly outdoors;
 Installation consists of mounting the device, connecting to an IP network,
connecting the I/O, providing power and configuring via a web browser.
5.2. Power supply requirements

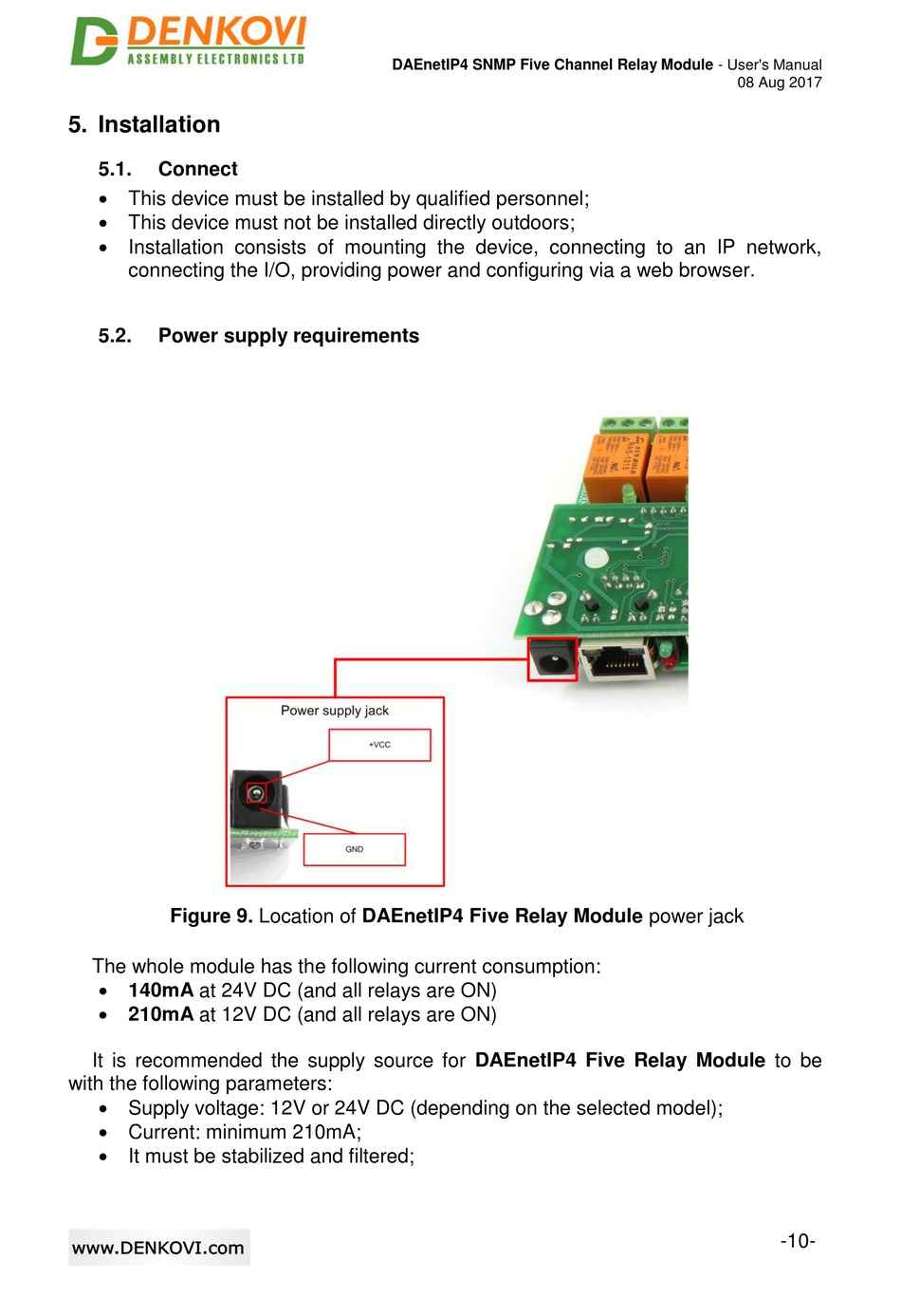

Figure 9. Location of DAEnetIP4 Five Relay Module power jack
The whole module has the following current consumption:
 140mA at 24V DC (and all relays are ON)
 210mA at 12V DC (and all relays are ON)
It is recommended the supply source for DAEnetIP4 Five Relay Module to be
with the following parameters:
 Supply voltage: 12V or 24V DC (depending on the selected model);
 Current: minimum 210mA;
 It must be stabilized and filtered;
