Connection Guide - Swann Advanced Series Manual

The order that the cameras
are plugged in determines
the order that they'll be
shown when you change
channel or engage Auto-
Switching mode.
The channels connections
are arranged from left
to right, when viewed
from the rear. Thus, the
leftmost connection
is channel 1, and the
rightmost channel 4.
Connect one camera to
each of the camera inputs.
Use only the supplied
power adapter. Avoid using
multiple double-adapters
or power-boards.

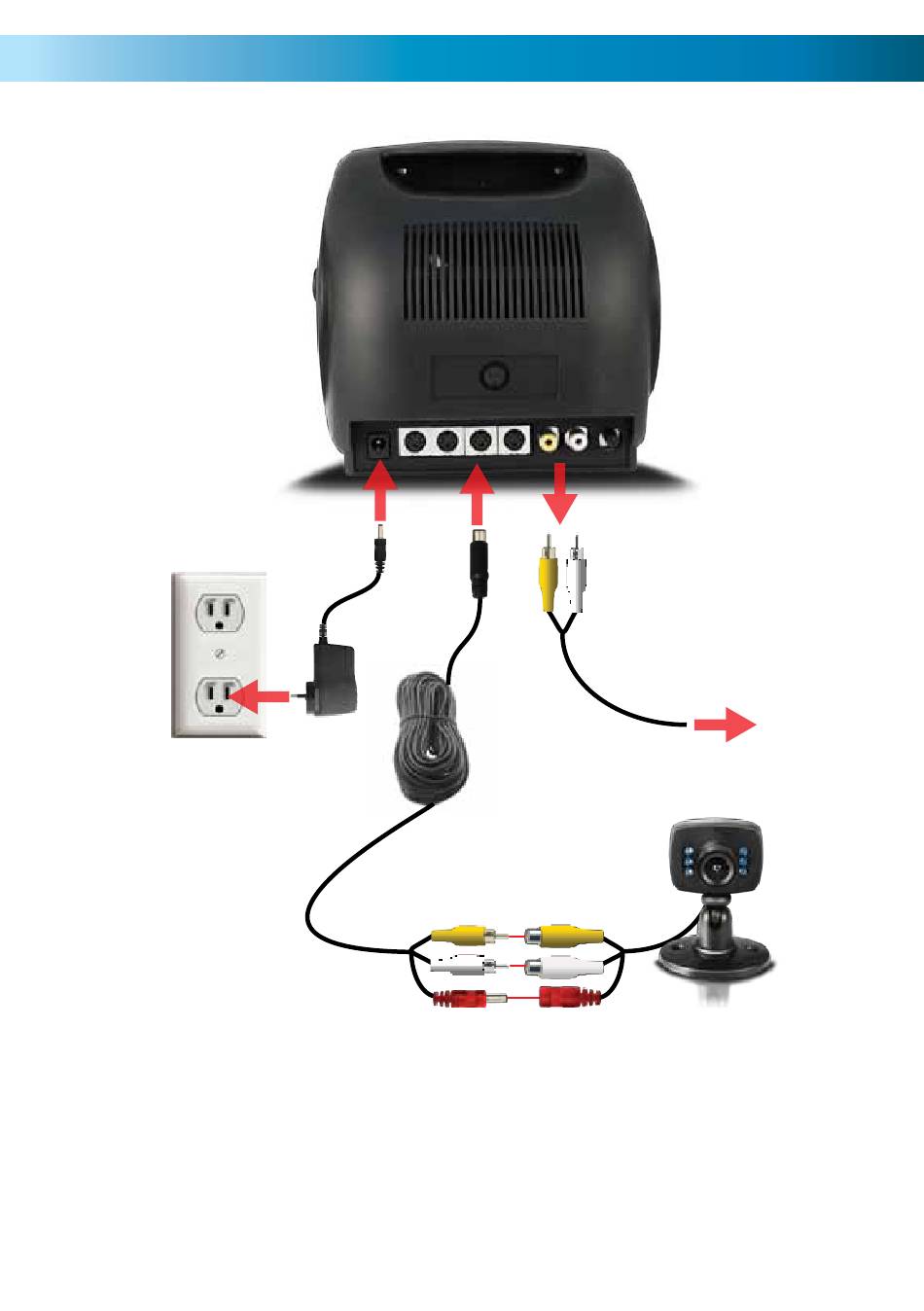

Connection Guide

Connect the camera's connections to the end
of the camera connection cable by color. We
suggest connecting and testing all cameras
and powering on the monitor before physically
installing cameras or running cables.
Repeat for all four cameras.
Rear of Monitor
Using a standard A/V
cable (not included), you
can connect the AV Out
to an additional monitor
or a recording device.
