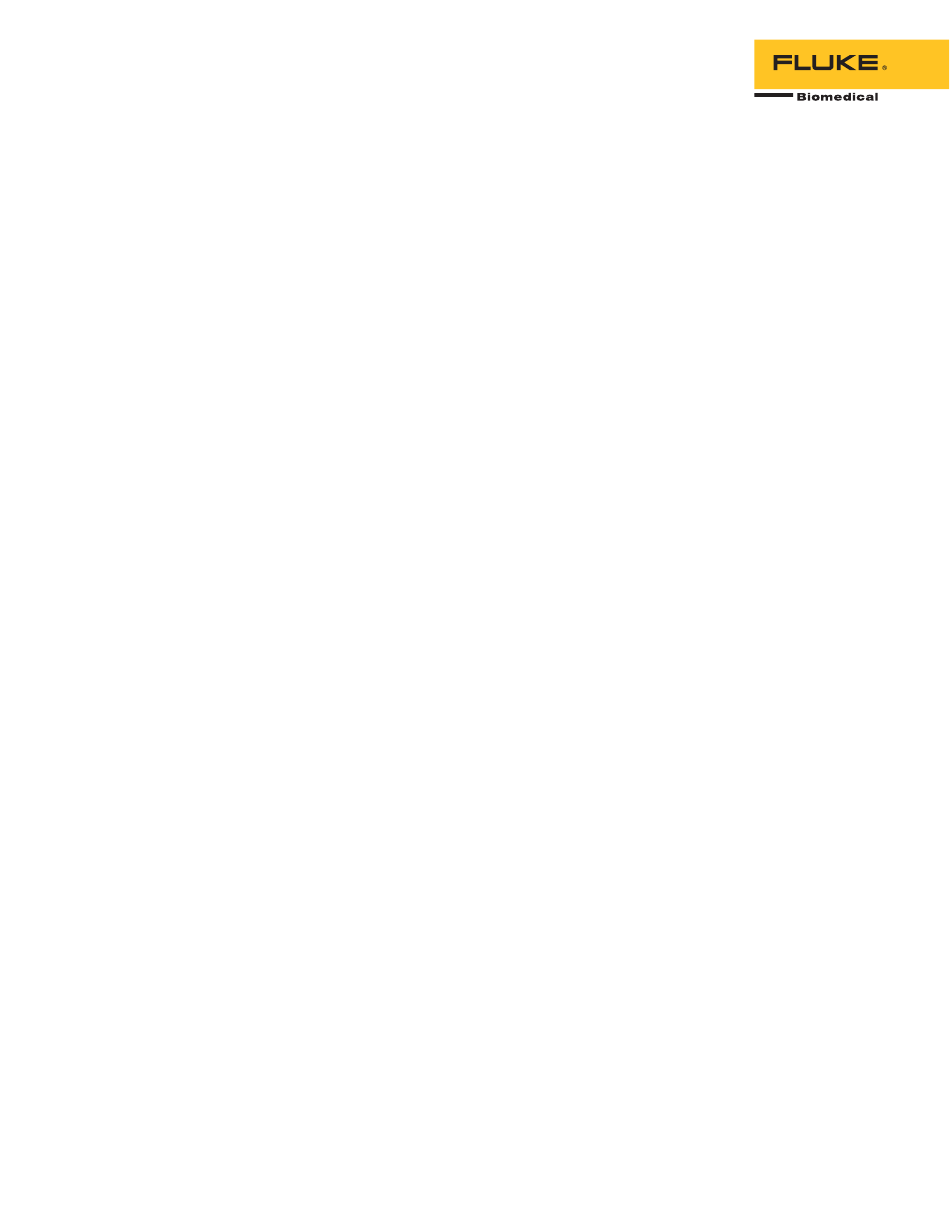

IDA-1S
Infusion Device Analyzer
Users Manual
FBC-0064
February 2014, Rev. 2, 10/14
© 2014 Fluke Corporation. All rights reserved. Specifications are subject to change without notice.
All product names are trademarks of their respective companies.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDA-1S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fluke Biomedical IDA-1S

Summary of Contents for Fluke Biomedical IDA-1S

  • Page 1 IDA-1S Infusion Device Analyzer Users Manual FBC-0064 February 2014, Rev. 2, 10/14 © 2014 Fluke Corporation. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies.
  • Page 2 OR two years if at the end of your first year you send the instrument to a Fluke Biomedical service center for calibration. You will be charged our customary fee for such calibration. During the warranty period, we will repair or at our option replace, at no charge, a product that proves to be defective, provided you return the product, shipping prepaid, to Fluke Biomedical.
  • Page 3 Fluke Biomedical, we recommend using United Parcel Service, Federal Express, or Air Parcel Post. We also recommend that you insure your shipment for its actual replacement cost. Fluke Biomedical will not be responsible for lost shipments or instruments that are received in damaged condition due to improper packaging or handling.
  • Page 4 Changes made to the information in this document will be incorporated in new editions of the publication. No responsibility is assumed by Fluke Biomedical for the use or reliability of software or equipment that is not supplied by Fluke Biomedical, or by its affiliated dealers.

  • Page 5: Table Of Contents

    Table of Contents Title Page Introduction .................... 1 Intended Use ..................1 Unpack the Product ................1 Safety Information ................. 2 Symbols ....................3 Instrument Familiarization ..............4 Product Connections ................7 Connect Infusion Devices ..............7 Connect Drains .................. 8 Product Operation .................
  • Page 6 IDA-1S Users Manual...
  • Page 7 List of Tables Table Title Page Symbols ..................... 3 Front-Panel Controls and Indicators ............5 Side-Panel Connections ................6 Information Screen ..................10 Flow Measurement Screen ............... 11 Occlusion Measurement Screen ............... 13 Recall Tests Screen .................. 14 User Preferences Screen ................15 Bubble Errors ....................
  • Page 8 IDA-1S Users Manual...
  • Page 9 List of Figures Figure Title Page Front-Panel Controls and Indicators ............4 Side-Panel Connections ................6 Infusion Device Connections to the Product ..........7 Drain Connections to the Product ............. 8...
  • Page 10 IDA-1S Users Manual...

  • Page 11: Introduction

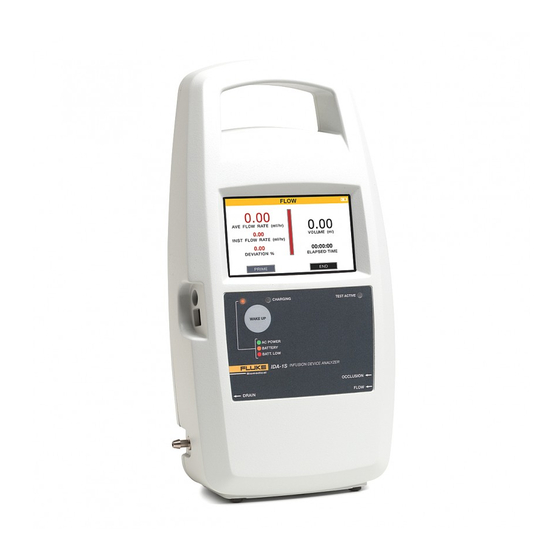

    Introduction The IDA-1S Infusion Device Analyzer (the Product) is a portable, battery- operated instrument that verifies the performance of medical infusion devices. The Product measures the flow rate and volume delivered and the pressure generated in occlusions or blockages of the fluid line.

  • Page 12: Safety Information

    IDA-1S Users Manual Safety Information A Warning identifies conditions and procedures that are dangerous to the user. A Caution identifies conditions and procedures that can cause damage to the Product or the equipment under test.  Warning To prevent possible electrical shock, fire, or personal injury: •...

  • Page 13: Symbols

    Infusion Device Analyzer Symbols • Do not reuse test tubing or syringes for patient infusion. • Avoid possible contamination of reusable components due to backflow conditions. Some older style infusion devices may have reusable components that could come in direct contact with the fluids being pumped.

  • Page 14: Instrument Familiarization

    IDA-1S Users Manual Instrument Familiarization Figure 1 and Table 2 show the controls and indicators on the front panel of the Product. hqf01.eps Figure 1. Front-Panel Controls and Indicators...
  • Page 15 Infusion Device Analyzer Instrument Familiarization Table 2. Front-Panel Controls and Indicators Item Description  Integrated Carrying Handle  Touch Display (LCD)  Charging Indicator – Illuminates when the battery is charging  Power On Indicator: • Green – Operating on ac power using the charger •...
  • Page 16 IDA-1S Users Manual Figure 2 and Table 3 show the connections on the side-panel of the Product. hqf02.eps Figure 2. Side-Panel Connections Table 3. Side-Panel Connections Item Description  Power Input for Battery Charger / Power Supply 9 V dc ...

  • Page 17: Product Connections

    Figure 3 shows the Product connected for a flow test with a 20 ml syringe attached to one 3-way stopcock inlet. Use a syringe to prime the line before a test. Fluke Biomedical recommends that you make all infusion device connections to the Product through 3-way stopcocks.

  • Page 18: Connect Drains

    IDA-1S Users Manual • When you connect to the inlet circuits (for example, when you attach the priming syringes to the stopcocks) make sure no new bubbles are introduced.  Caution To prevent possible damage to the product or to equipment under test, do not use delivery set or components that have been used for prior testing for patient infusion.

  • Page 19: Product Operation

    Infusion Device Analyzer Product Operation Product Operation The Product has rechargeable batteries that can supply a minimum of eight hours of operation. The Product can operate while it charges. Control the Product with the LCD touch screen. Before you turn on the Product, make sure the Product calibration is up-to-date, check for signs of wear, and ensure the battery door is closed.
  • Page 20 IDA-1S Users Manual Table 4 explains the fields and buttons on the information screen. Subsequent tests keep the data until you select Shut Down from the Start menu. Table 4. Information Screen hqf05.eps Field/Button Description CONTROL NUMBER An alphanumeric code that identifies the instrument for the test.

  • Page 21: Flow Tests

    Infusion Device Analyzer Product Operation Flow Tests To do a flow test: 1. Select Flow from the Start menu. 2. Complete the fields on the Flow Information screen. See the How to Set Up for a Test section in this manual. 3.
  • Page 22 IDA-1S Users Manual 5. Touch Auto Start to start the measurement when the Product senses the flow. As an alternative, touch Start to start the test immediately. FLOW 0.00 0.00 AVE FLOW RATE (ml/hr) 0.00 VOLUME (ml) INST FLOW RATE (ml/hr) 0.00...

  • Page 23: Occlusion Tests

    Infusion Device Analyzer Product Operation Occlusion Tests To do an occlusion test: 1. Select Occlusion from the Start menu. 2. Complete the fields on the Occlusion Information screen. See the How to Set Up for a Test section in this manual. 3.

  • Page 24: Utilities

    IDA-1S Users Manual Utilities To open the Utilities menu screen, select Utilities from the Start menu. The Utilities menu has these options: • Recall Tests • User Preferences • View Settings • Set Clock • Report Heading • Instructions •...

  • Page 25: User Preferences

    Infusion Device Analyzer Utilities User Preferences Use the User Preferences screen to set the Pressure units and other display features. Table 8 explains the User Preferences screen. Table 8. User Preferences Screen USER PREFERENCES Pressure Unit mmHg Beep Volume Display Brightness Backlight off Time 05 Min Auto Shut Down Time...

  • Page 26: View Settings

    Use Report Heading to enter a maximum of three lines of text. This text shows when saved records are transferred to a PC. Fluke Biomedical recommends using the first line for the name of the establishment. Touch a line and use the on-screen keyboard to enter up to 20 characters per line.

  • Page 27: Troubleshooting

    Infusion Device Analyzer Troubleshooting Troubleshooting Tables 9 and 10 list Bubble and Air Lock errors and their solutions. Table 9. Bubble Errors Possible causes Solution Air caught in the delivery tubing. Make sure to remove all air when you connect the infusion device to the analyzer.

  • Page 28: Product Maintenance

    IDA-1S Users Manual Product Maintenance  Warning To prevent possible electrical shock, fire, or personal injury: • Batteries contain hazardous chemicals that can cause burns or explode. If exposure to chemicals occurs, clean with water and get medical aid. •...

  • Page 29: Clean The Product (Outside)

    Drain tube (1 m) 4478942 Micro-90 (225 ml) 4541948 USB Cable 1740487 Power supply, 4-plug mains adapter kit for US, UK, EURO, AUS 2461300 IDA-1S power supply cord without mains adapters, universal wall mount 4329971 NiMH Battery 4481150 IDA-1S Getting Started Manual 4426198...

  • Page 30: Test Fluid

    IDA-1S Users Manual Test Fluid The Product operates with distilled or de-ionized water with added detergent. Fluids intended for use on patients, high viscosity fluids, oily, or corrosive substances will cause damage to the measurement system. Tap water can contain contaminates that can cause damage to the fluid paths.

  • Page 31: General Specifications

    Infusion Device Analyzer General Specifications General Specifications Battery Power ............4 x Panasonic HHR210AB NiMh 2000 mAh batteries Charger Operating Voltage Range ........100 V ac to 240 V ac Supply Frequency ..........50 Hz / 60 Hz Supply Power ............<20 VA Size (HxWxD) ............
  • Page 32 IDA-1S Users Manual...
