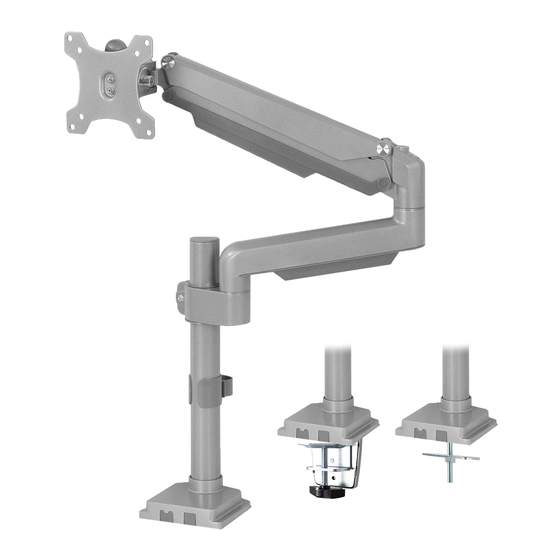

Silver Pneumatic Arm Single Monitor Desk Mount
Instruction Manual
SKU: STAND-V101SV
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v101sv
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V101SV
Summary of Contents for Vivo STAND-V101SV
- Page 1 Silver Pneumatic Arm Single Monitor Desk Mount Instruction Manual SKU: STAND-V101SV Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v101sv GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury.
- Page 3 ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Mount pole (B) to base (C) using M6x16 bolts (T) and tighten with the 4mm Allen wrench (O). Attach clamp brace (F) to base using M6x12 bolts (S) and tighten with the 4mm Allen wrench (O). Apply adhesive pads (N) to corners of base.
- Page 4 STEP 2 Slide cable clip (D) and arm (A) down onto pole. Secure arm using the 6mm Allen wrench (P). STEP 3 Install the VESA plate (E) to monitor using M4x12 bolts (M-A) or M5x12 bolts (M-B) with washers (M-C), making sure the arrow in back is pointing up.
- Page 5 STEP 4 Pull back the release lever on the support bracket, then place the monitor with VESA plate into the support. STEP 5 If needed, adjust gas spring to support the monitor using the 6mm Allen wrench (P). Turn the screw in back clockwise to decrease support, and counter-clockwise to increase.
- Page 6 STEP 6 Remove upper cable cover by spreading the sides and pulling down. Slide cable cover on lower arm forward to remove. STEP 7 Organize cables, then reinstall cable covers to arms.
- Page 7 Adjust as Desired...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
