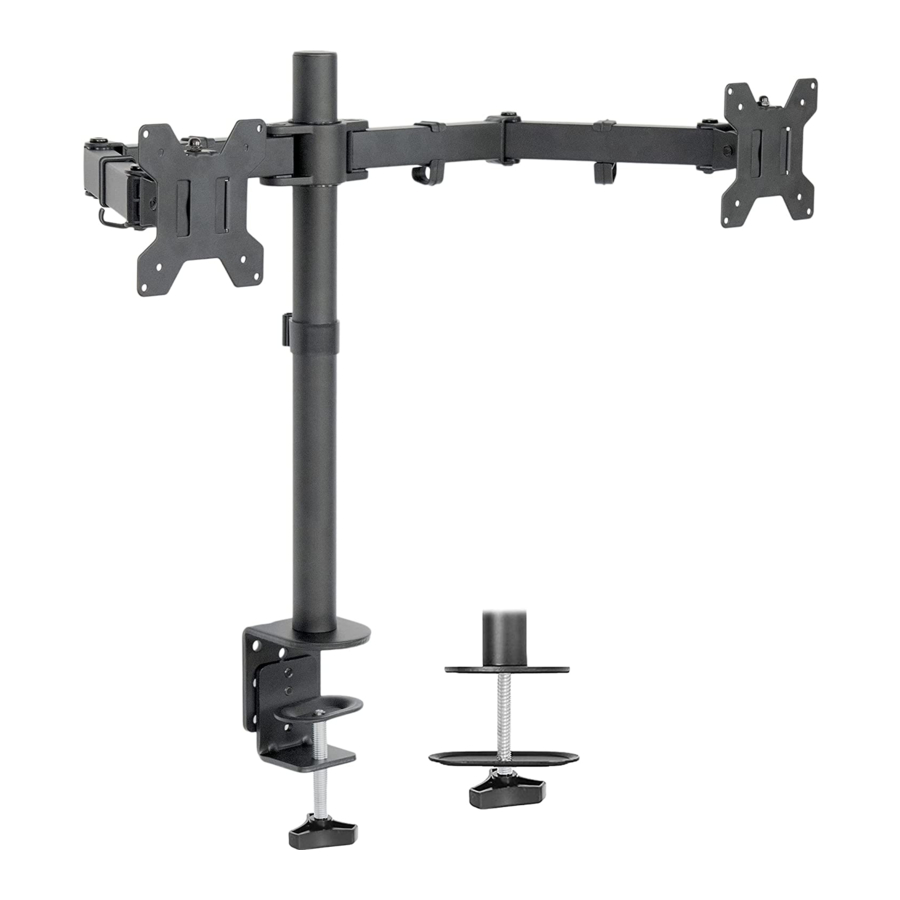

Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V002
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v002
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V002 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo STAND-V002

Summary of Contents for Vivo STAND-V002

  • Page 1 Dual Monitor Desk Mount Instruction Manual SKU: STAND-V002 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v002 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3 TOOLS NEEDED 22 lbs DO NOT EXCEED WEIGHT CAPACITY. Per Arm Failure to do so may result in serious injury. (10kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Loosen knob on Clamp (B). STEP 2 (Option A) Desk Clamp Installation Mount Clamp (B) to Pole (A) using M6x16 Screws (S-A) 3mm Allen Wrench (T-A). Secure assembly to desktop by tightening knob on Clamp (B).
  • Page 4 STEP 2 (Option B) Grommet Installation Using a phillips screwdriver, remove the screw from Clamp (B) and disassemble. Set Knob (B2) aside. Mount Grommet Plate (E) to Pole (A) using M6x16 Screws (S-A) and 3mm Allen Wrench (T-A). Remove adhesive backing from Soft Pad (F) and adhere to Grommet Plate (E). Using a 3/8” (10mm) drill bit, drill through desktop surface and secure assembly using Knob (B2) and Support Plate (G).
  • Page 5 STEP 3 Slide Pole Cable Clip (I) and Swivel Arm (C) onto Pole (A). Secure Swivel Arm (C) in place using 6mm Allen Wrench (T-C). Attach Pole Cap (H) to Pole (A). Attach Arm Cable Clips (J) to Swivel Arm (C). STEP 4 Secure VESA Plates (D) to monitors using M4x12 Thumbscrews (M-A) or M4x30 Screws (M-B).
  • Page 6 STEP 5 Slide monitors with VESA Plates (D) onto Swivel Arm (C). Secure VESA Plates (D) in place using M6 Security Nuts (S-B). STEP 6 Manage cables using Arm Cable Clips (J) and Pole Cable Clip (I).
  • Page 7 STEP 7 Adjust the monitor tilt using 5mm Allen Wrench (T-B). To level monitors, remove M6 Security Nuts (S-B) and tighten or loosen adjustment screws using 3mm Allen Wrench (T-A). Once level, fasten M6 Security Nuts (S-B) back into place.
  • Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
