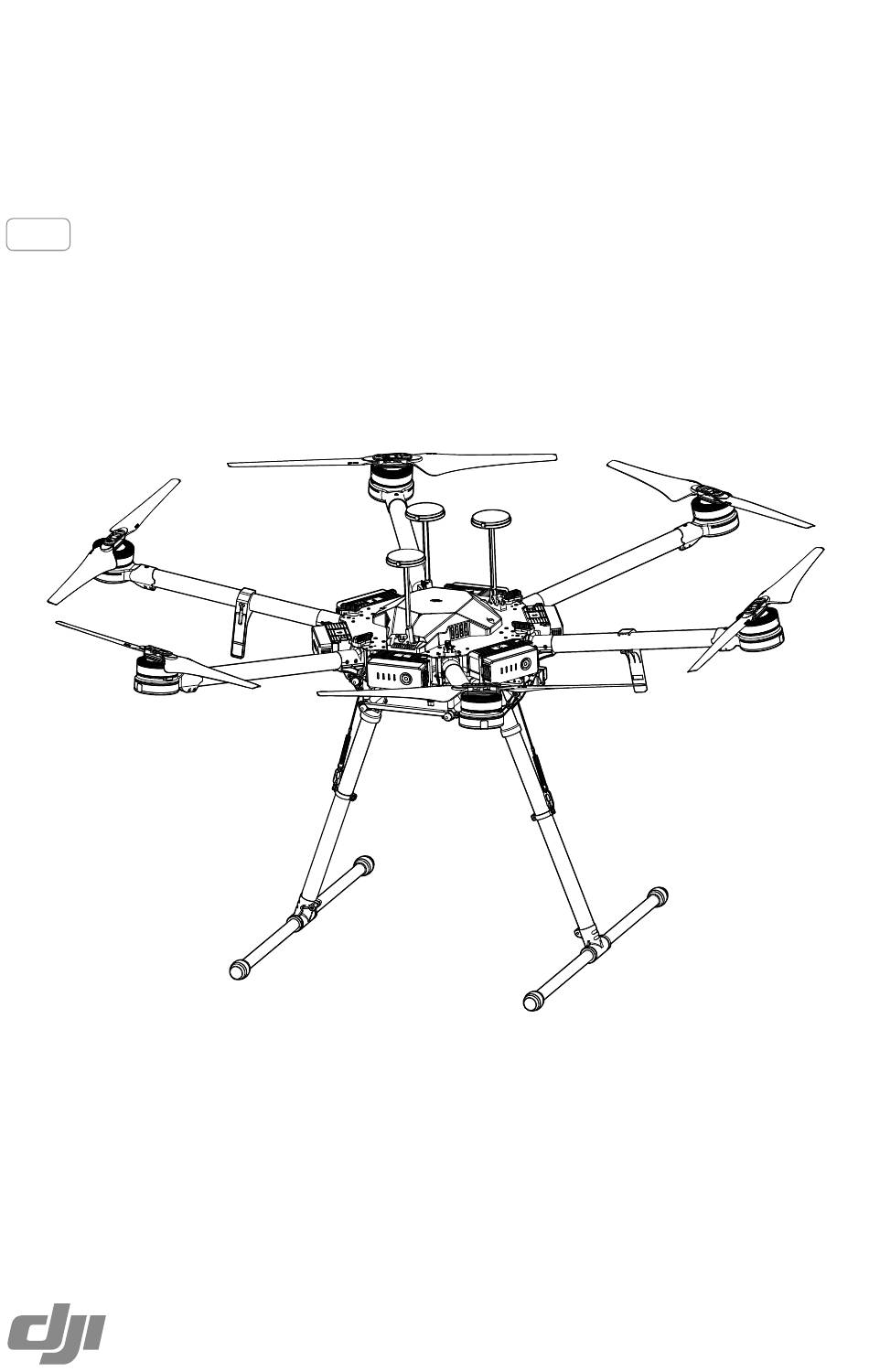

MATRICE 600 PRO
User Manual
V1.0
2018.04

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATRICE 600 PRO and is the answer not in the manual?

Questions and answers

Related Manuals for dji MATRICE 600 PRO

Summary of Contents for dji MATRICE 600 PRO

  • Page 1 MATRICE 600 PRO User Manual V1.0 2018.04...
  • Page 2 Searching for Keywords Search for keywords such as “battery” and “install” to find a topic. If you are using Adobe Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search. Navigating to a Topic View a complete list of topics in the table of contents.

  • Page 3: Using This Manual

    User Manual available on the DJI website (http://www.dji.com). Download DJI Assistant 2 When using your Matrice 600 Pro for the first time, you will need to activate it in the DJI Assistant 2 software.

  • Page 4: Warning

    1. Ensure that all other parts are installed before inserting the Intelligent Flight Batteries. 2. DO NOT remove any glued-in screws. 3. The Matrice 600 Pro should be lifted off the ground when testing the landing gear or recalibrating servo travel.

  • Page 5: Table Of Contents

    Profile Smart RTH Low Battery RTH Failsafe RTH RTH Safety Notices Updating the Home Point A3 Pro Redundancy System Mounting Positions System Status DJI Assistant 2 Installation and Launching Using the DJI Assistant 2 © 2017 DJI All Rights Reserved.
  • Page 6 Intelligent Flight Modes Upgrading the Firmware Retractable Landing Gear Reserved Mounting Position Dimensions A3 Pro Flight Control System Overview Lightbridge 2 Air System Overview DJI Gimbal Connection Illustrator DJI Zenmuse X3 Gimbal and Camera © 2017 DJI All Rights Reserved.

  • Page 7: Product Profile

    Its mechanical design, with quick-release landing gear and mounted folding arms, make it easy to transport, store, and prepare for flight. With a maximum takeoff weight of 15.5 kg, the Matrice 600 Pro can meet specific needs across a range of industries.

  • Page 8: Installation

    3. Unfold the GPS-Compass Pro and ensure that all the arrows on the GPS-Compass Pro point toward the front of the aircraft. For storage, remove the landing gears, lower the retractable modules, then lower the frame arms to prevent damage. © 2017 DJI All Rights Reserved.

  • Page 9: Mounting The Gimbal (Optional)

    MATRICE 600 PRO User Manual Mounting the Gimbal (Optional) The built-in flight control system of the Matrice 600 Pro is compatible with the following DJI gimbals and cameras. Ronin-MX Zenmuse Z30 Zenmuse Z3 Zenmuse X3 Zenmuse X5 Series Zenmuse XT, XT 2 Zenmuse Z15 Series HD Gimbal: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4 Different accessories are used to mount different gimbals or cameras.

  • Page 10: Intelligent Flight Battery

    Intelligent Flight Battery Profile The Matrice 600 Pro has six battery compartments and six Intelligent Flight Batteries to extend the flight time. The standard Intelligent Flight Battery has a capacity of 4500mAh, voltage of 22.2V, and built-in smart charge-discharge function. It can only be charged with an appropriate DJI approved charger.

  • Page 11: Using The Batteries

    Using the Batteries Installing the Batteries There are six battery compartments on the Matrice 600 Pro. You must load all six battery compartments with batteries of the same model before each flight. Make sure all the batteries are fully charged before each flight.
  • Page 12 MATRICE 600 PRO User Manual If the power supply is not OK when powering on the batteries, the DJI GO app will either prompt you to adjust the battery positions or tell you there is a large voltage difference. To adjust the battery positions: 1.
  • Page 13 40%~50% 30%~40% 20%~30% below 20% When the battery life reaches 0%, it can no longer be used. For more information about the battery, launch the DJI GO app and go to the Battery tab. © 2017 DJI All Rights Reserved.
  • Page 14 MATRICE 600 PRO User Manual Charging the Intelligent Flight Battery The Matrice 600 Pro is shipped with a DJI Hex Charger. It can charge up to six Intelligent Flight Batteries and two remote controllers simultaneously. 1. Connect the Hex Charger to a power outlet (100-240V, 50/60Hz) with the power cable.
  • Page 15 Leave it on until there is less than 5% battery level, or until it can no longer be turned on. Check the battery level in the DJI GO app. Fast: Fly the Matrice 600 Pro outdoors until there is less than 5% battery level, or until the battery can no longer be turned on.

  • Page 16: Remote Controller

    It is powered by a 2S rechargeable battery. Stick Mode: Control can be set to Mode 1, Mode 2 (by default), or a custom mode in the DJI GO app.
  • Page 17 [12] Shutter Button Connect to mobile device to access all of Press to take a photo. If in burst mode, the the DJI GO app controls and features. [20] GPS Module Used to pinpoint the location of the remote [20] controller.

  • Page 18: Remote Controller Operations

    Powering On and Off the Remote Controller The Matrice 600 Pro remote controller is powered by a 2S rechargeable battery with a capacity of 6000mAh. The battery level is indicated by the Battery Level LEDs on the front panel. Follow the steps below to power on your remote controller: 1.
  • Page 19 MATRICE 600 PRO User Manual Controlling the Camera Shoot videos or images and adjust camera settings via the Shutter Button, Camera Settings Dial, Playback Button and Video Recording Button on the remote controller when using a Zenmuse Z30, Z3, X3, X5 series, XT or XT 2 gimbal and camera.
  • Page 20 MATRICE 600 PRO User Manual Remote Controller Aircraft ( indicates nose direction) Function Moving the Left Stick up/down changes the aircraft’s elevation. Push it up to ascend and down to descend. Use this stick to take off when the motors are spinning at idle speed.
  • Page 21 Intelligent Flight Modes (p. 47) section in the Appendix and SDK in DJI Assistant 2 (p. 30) for more information. The flight mode is locked in P-mode by default. To enable other flight modes, go to the DJI GO app > Camera View >...
  • Page 22 Ensure that the switch is in the lower position when enabling this feature. The feature will be disabled after raising and lowering the landing gear once. Enable it in the DJI GO app if you want to raise or lower the landing gear again.

  • Page 23: Dual Remote Controllers Mode

    More than one remote controller can be connected to the same aircraft in the Dual Remote Controllers mode. When using a DJI gimbal in the Dual Remote Controllers mode, the Master remote controller controls the movement of the aircraft, while the Slave remote controller controls the movement of the gimbal.
  • Page 24 Master Remote Controller through the DJI GO app. Follow the steps below for setup: Master Remote Controller: 1. Connect the remote controller to your mobile device and launch the DJI GO app. 2. Go to the Camera View, and tap to enter the remote controller settings window.

  • Page 25: Remote Controller Leds

    The remote controller cannot link to the aircraft or control aircraft movement if it is set to Slave. Set the remote controller as Master in the DJI GO app if you want to link the remote controller to the aircraft.

  • Page 26: Linking The Remote Controller

    Follow these steps to link a new remote controller: 1. Power on the remote controller and connect it to your mobile device. Then power on the aircraft. 2. Go to the DJI GO app > Camera View > > Remote Controller Settings > Linking Remote Controller.
  • Page 27 The remote controller cannot link to the aircraft or control aircraft movement if it is set to Slave. Set the remote controller as Master in the DJI GO app if you want to link the remote controller to the aircraft.

  • Page 28: Return-To-Home (Rth)

    Use the RTH button on the remote controller (see RTH Button on p. 20 for more details) or the RTH button in the DJI GO app when GPS is available to enable Smart RTH. With Smart RTH, you may control the aircraft’s orientation to avoid collision when it is returning to the Home Point. Press and hold the Smart RTH button to start the RTH procedure, then press the Smart RTH button again to exit Smart RTH and regain control of the aircraft.

  • Page 29: Failsafe Rth

    MATRICE 600 PRO User Manual Aircraft Status Flight Battery Level Description DJI GO App Indicator Instructions Tap Go-Home to make the Fly the aircraft aircraft return to Home Point back and land Aircraft Status and land automatically, or Low Battery...

  • Page 30: Rth Safety Notices

    Home Point. Follow the instructions below to update the Home Point: 1. Connect your mobile device to the remote controller and go to the DJI GO app > Camera View > 2. Tap to set the remote controller’s current coordinates as the Home Point;...

  • Page 31: A3 Pro Redundancy System

    A3 Pro Redundancy System The Matrice 600 Pro’s A3 Pro flight control system is an upgraded version of the A3, which enhances flight safety. The A3 includes a flight controller, GPS-Compass Pro and a PMU (Power Management Unit). With two additional IMU Pro and GPS-Compass Pro modules, the A3 Pro provides triple-modular redundancy, improving the system’s anti-risk performance.

  • Page 32: Dji Assistant 2

    DJI GO app for information. 3. Connect the Micro USB port (at the bottom of the Aircraft Status Indicator) of the Matrice 600 Pro to the computer with a Micro USB cable. Do not disconnect the cable until configuration is finished.
  • Page 33 Check the current firmware version of the Lightbridge 2 Air System and ensure the installed firmware is up-to-date. If not, login with your DJI account and click the Upgrade button. Ensure that your computer has internet access, or else you cannot get the latest firmware.

  • Page 34: Dji Go App

    DJI GO App Use the DJI GO app to configure your aircraft. If using a gimbal or camera, you can also control the gimbal or camera in the app. The Library, Skypixel, and Me sections in the app allow you to share your content with friends.
  • Page 35 MATRICE 600 PRO User Manual [1] System Status : Indicates the current aircraft system status and GPS signal strength. Ready to Go (GPS) [2] Battery Level Indicator : Describes the battery level of the aircraft according to its immediate status. The colored zones represent the various stages of battery level.
  • Page 36 : Initiate RTH home procedure. Tap to have the aircraft return to the latest Home Point. [14] Gimbal Operation Mode This icon will be displayed when using a DJI gimbal (or camera). Tap to select a mode or re-align the gimbal.

  • Page 37: Editor

    Find out about our latest events, featured products and trending Skypixel uploads in the this page. If you already have a DJI account, you will be able to participate in forum discussions, earn Credits in the DJI Store, and share your artwork with the community.

  • Page 38: Flight

    Users can change the maximum height and radius limits in the DJI GO app. Once complete, your Matrice 600 Pro will fly in a restricted cylinder that is determined by these settings. The tables below show the details of these limits.
  • Page 39 GPS icon) when powered on. If you fly out of bounds, you can still control the Matrice 600 Pro, but cannot fly it further. If the Matrice 600 Pro loses GPS signal and flies out of the max radius but regains GPS signal afterwards, it will fly back within range automatically.
  • Page 40 MATRICE 600 PRO User Manual 2. R1 miles around the airport (depending on its shape and size) encompasses the no fly zone, inside of which takeoff and flight are prohibited. 3. From R1 to R1+1 miles around the airport, the flight altitude is limited at a 15 degree incline, starting at 66 feet (20 meters) from the edge of airport and radiating outwards.

  • Page 41: Pre-Flight Checklist

    MATRICE 600 PRO User Manual Safe to Fly (GPS) Blinking Green Slowly Aircraft Status Zone Restrictions DJI GO App Warning Indicator Warning: You are in a no fly zone. Motors will not start. Takeoff prohibited. If the aircraft loses GPS...

  • Page 42: Flight Status Indicators

    ESC LEDs There is an ESC LED on each frame arm of the Matrice 600 Pro to show the orientation of the aircraft after motors started. The ESC LEDs located on frame arms M1 and M2 are red. The ESC LEDs located on frame arms M3 to M6 are green.

  • Page 43: Calibrating The Compass

    Be sure to calibrate the compass before your first flight, or else the aircraft cannot work properly. After that, calibrate the compass when the DJI GO app or the Aircraft Status Indicator prompts you to do so. DO NOT calibrate your compass where there is a chance of strong magnetic interference, such as magnetite quarries, parking structures, and underground steel reinforcements.

  • Page 44: Auto Takeoff And Auto Landing

    2. Flying in a new location, or a location that is different from your last flight. 3. The mechanical structure of the Matrice 600 Pro is changed, i.e. the mounting position of the GPS module is changed. 4. Severe drifting occurs in flight, i.e. the Matrice 600 Pro has difficulty flying in a straight line.

  • Page 45: Stopping The Motors Mid-Flight

    Method 1: When the aircraft has landed, push the throttle down and hold. The motors will stop after 3 seconds. Method 2: When the Matrice 600 Pro has landed, push the throttle stick down, then perform the CSC command to stop the motors. Release both sticks once the motors have stopped.

  • Page 46: Appendix

    Standard Operating Temperature 14° to 104° F (-10° to 40° C) * The hovering time is based on flying at 10m above sea level in a no-wind environment and landing with 10% battery level. © 2017 DJI All Rights Reserved.
  • Page 47 MATRICE 600 PRO User Manual Remote Controller 920.6 MHz to 928 MHz (Japan) Operating Frequency 5.725 GHz to 5.825 GHz 2.400 GHz to 2.483 GHz Max Transmitting Distance FCC: 5 km (unobstructed, free of interference) CE: 3.5 km 10 dBm @ 900 M EIRP 13 dBm @ 5.8 G...
  • Page 48 MATRICE 600 PRO User Manual Battery (Optional) Model TB48S Capacity 5700 mAh Voltage 22.8 V Type LiPo 6S Energy 129.96 Wh Net Weight 680 g Operating Temperature 14° to 104° F (-10° to 40° C) Less than 3 months: -4° to 113° F (-20° to 45° C) Storage Temperature More than 3 months: 72°...

  • Page 49: Intelligent Flight Modes

    Go to the DJI GO app > Camera View > > Multiple Flight Modes. On the remote controller, toggle the Flight Mode Switch to F-mode. Tap in the DJI GO app to use Intelligent Flight Modes by following the steps in the app. ©...

  • Page 50: Upgrading The Firmware

    Firmware to download and upgrade the firmware. 2. A progress bar in the DJI GO app will indicate the upgrade status. The Status LED on the remote controller will be solid blue while the upgrade is in progress and it will turn solid green when the upgrade is successful.

  • Page 51: Retractable Landing Gear

    Insert the Micro SD card into your PC. Extract all the downloaded files into the root directory of the Micro SD card. While the Matrice 600 Pro is powered off, remove the Micro SD card from your PC and insert it into the Micro SD card slot on the gimbal.
  • Page 52 MATRICE 600 PRO User Manual If the LED is solid yellow after calibration, a problem has occurred. Ensure that the servos are mounted correctly and then try again. Avoid obstructions during calibration. If the landing gear was obstructed, recalibration will be required, per the above steps.

  • Page 53: Reserved Mounting Position Dimensions

    MATRICE 600 PRO User Manual Reserved Mounting Position Dimensions A mounting position for your own devices is reserved at the bottom of the center frame. 1. Remove the twelve M3×6.5 screws at the bottom of the center frame first, and then remove the expansion mounting kit.

  • Page 54: A3 Pro Flight Control System Overview

    [4] Status Indicator Indicates the status of the flight controller and triple modular redundancy system. [5] RF Port Communicates with the DJI Lightbridge 2 Air System. Connected to the Lightbridge 2 Air System upon delivery. [6] iESC Port Communicates with the DJI Smart ESC. Connected to the DJI Smart ESC upon delivery.
  • Page 55 Communicates with the DJI Intelligent Flight Battery. Connected to the battery management system before delivery. [3] 3S-12S Draws power from the DJI Intelligent Flight Battery or other LiPo battery. Connected to the battery management system before delivery. GPS-Compass Pro Module...

  • Page 56: Lightbridge 2 Air System Overview

    [2] AV IN Receives AV input from the camera. [3] Gimbal Port Connects to a DJI gimbal or camera. [4] DBUS Port Sends the remote controller signal to the flight controller. Connected to the RF port on the flight controller upon delivery.

  • Page 57: Dji Gimbal Connection Illustrator

    SRW-60G Transmitter Ronin-MX When using the Ronin-MX, set the App Output Mode in the DJI GO app to display the image on your mobile device from the camera used with the Ronin-MX. Launch the DJI GO app > Camera View >...
  • Page 58 When using the Zenmuse Z30, Z3, X3, X5 series, XT, XT 2 or Z15 series HD gimbal, set the App Output Mode in the DJI GO app to display the image on your mobile device from the camera used with your gimbal. Launch the DJI GO app > Camera View >...

  • Page 59: Dji Zenmuse X3 Gimbal And Camera

    To store your photos and videos, plug in the Micro SD card into the Micro SD card slot on the gimbal before powering on the Matrice 600 Pro. The camera supports a single Micro SD card of up to 64GB.
  • Page 60 Single Remote Controller mode. Enable the Master-and-Slave mode in the DJI GO app and set a second remote controller to Slave if you wish to tilt and pan the camera together.
  • Page 61 09:29 Gimbal Operation Modes Switch between the three operation modes in Camera View in the DJI GO app. Note that your mobile device must be connected to the remote controller for changes to take effect. Refer to the table below...
  • Page 62 MATRICE 600 PRO User Manual The gimbal’s orientation is aligned with the aircraft’s nose. One user alone can control the pitch motion of the gimbal, but a second Follow Mode operator is required to control the yaw motion using a second remote controller.
  • Page 63 MATRICE 600 PRO User Manual CMOS Sony EXMOR 1/2.3” 20 mm (35 mm format equivalent), f/2.8, focus at ∞ Lens 9 elements in 9 groups Anti-distortion Single shot Burst mode: 3/5/7 frames Still Photography Modes Auto Exposure Bracketing (AEB): 3/5 frames at ±0.7EV...
  • Page 64 This content is subject to change. Download the latest version from http://www.dji.com/matrice600-pro If you have any questions about this document, please contact DJI by sending a message to DocSupport@dji.com. © MATRICE is a trademark of DJI. Copyright 2017 DJI All Rights Reserved.
  • Page 65 MATRICE 600 PRO Quick Start Guide V1.0...
  • Page 66 A3 Pro triple-modular redundancy system and advanced intelligent flight functions, ensuring safe and stable operation at all times. With six Intelligent Flight Batteries, the Matrice 600 Pro has 32 minutes of hover time*. Its mechanical design, with quick-release landing gear and mounted folding arms, make it easy to transport, store, and prepare for flight.
  • Page 67 Right Stick Gimbal Dial Left Stick For more information about how to connect and use the remote controller, please refer to the user manual of the Matrice 600 Pro. ● You can change the stick mode in the DJI GO app.
  • Page 68 High High on/off. 3. Charging Batteries Make sure all six Intelligent Flight Batteries are fully charged before using the Matrice 600 Pro. The Intelligent Flight Battery must be fully ● charged before using it for the first time. Power Outlet...
  • Page 69 ● automatically. Activating the Aircraft When using your Matrice 600 Pro for the first time, activate it in DJI Assistant 2 software. Connect the Micro USB port of the Matrice 600 Pro to the computer with a Micro USB cable and follow the steps in DJI Assistant 2.
  • Page 70 Return-to-Home (RC) Left stick down (slowly) until you touch the ground. Same as the RTH button in the DJI GO app. Hold a few seconds to Brings the aircraft back to the Home Point. Press stop the motors. and hold to initiate the RTH procedure. Press again to cancel.
  • Page 71 United States and other countries. Download the detailed user manual at: MATRICE is a trademark of DJI. www.dji.com/matrice600-pro © Copyright 2016 DJI All Rights Reserved. ※ This content is subject to change without prior notice. Designed by DJI. Printed in China.
  • Page 72 MATRICE 600 PRO www.dji.com...
  • Page 73 MATRICE 600 PRO In the Box Lieferumfang Contenido del embalaje Contenu de l'emballage Contenuto della confezione In de doos Incluído na embalagem Комплект поставки...
  • Page 74 Controleer of alle volgende standaarditems zich in uw pakket bevinden. Als er onderdelen ontbreken, neem dan contact op met DJI of uw plaatselijke dealer. Verifique se todos os itens comuns estão na embalagem. Se faltar algum item, contacte a DJI ou o revendedor local.
  • Page 75 Standard Package × 1 × 2 × 2 Standardpaket Paquete estándar Contenu standard Confezione standard Standaardpakket Embalagem padrão Aircraft Body Landing Gear Leg Landing Skid Стандартный (With Arm Sleeves) Landegestellstreben Landekufen комплект Basisgerät Pata del tren de aterrizaje Base del tren de (Mit Trägerhülsen) aterrizaje Pied de train d'atterrissage...
  • Page 76 × 1 × 1 × 2 × 1 Inner Foam Case Power Cable RC Charging Cable Micro USB Cable Innere Netzkabel Ladekabel für Micro-USB-Kabel Schaumstoffeinlage Fernbedienung Cable de alimentación Cable MicroUSB Caja interior de espuma Cable de carga del Câble d'alimentation Câble Micro-USB control remoto Étui intérieur en mousse...
  • Page 77 Manuals · In the Box · Disclaimer and Safety Guidelines · Intelligent Flight Battery Safety Guidelines · Quick Start Guide Produktdokumentation · Lieferumfang · Haftungsausschluss und Sicherheitsvorschriften · Sicherheitsvorschriften zur Intelligent Flight Battery · Kurzanleitung Manuales · Contenido del embalaje ·...
  • Page 78 Weiteres Zubehör finden Sie im offiziellen DJI-Onlineshop. Visite la tienda en línea oficial de DJI para consultar más elementos opcionales. Visitez la boutique en ligne DJI officielle pour découvrir l'ensemble des composants en option. Per ulteriori componenti opzionali, visitare il negozio online ufficiale di DJI.
  • Page 79 MATRICE 600 SERIES INTELLIGENT FLIGHT BATTERY Safety Guidelines V1.0 2016.10...
  • Page 80 This document applies to the following models of Intelligent Flight Battery: TB47S and TB48S. All instructions and other collateral documents are subject to change at the sole discretion of SZ DJI TECHNOLOGY CO., LTD. For up-to- date product information, visit http://www.dji.com and click on the product page for this product.
  • Page 81 20. DO NOT manually power on more than one Intelligent Flight Battery to avoid damaging the batteries. Powering on one of the six batteries will automatically trigger the others. If this fails, follow the instructions in the DJI GO app.
  • Page 82 2. The battery automatically discharges to below 65% when it is idle for more than 10 days to prevent it from swelling. You can change the idle time threshold in the DJI GO app. It takes approximately 3 days to discharge the battery to 65%.
  • Page 83 MATRICE 600 PRO DISCLAIMER AND SAFETY GUIDELINES V1.6 2017.10...
  • Page 84 Searching for Keywords Search for keywords such as “battery” and “install” to find a topic. If you are using Adobe Acrobat Reader to read this document, press Ctrl+F on Windows or Command+F on Mac to begin a search. Navigating to a Topic View a complete list of topics in the table of contents.
  • Page 85 Weather Conditions and Surrounding Environment Interference with Flight Controller and Communications Operating the Aircraft Responsibly Flight Modes, Functions and Warnings Flight Modes Failsafe and Return-to-Home Low Battery Compliance with Regulations & No Fly Zones Regulations No Fly Zones © 2017 DJI All Rights Reserved.

  • Page 86: Safety At A Glance

    • After landing, first stop the motor, then turn off the Intelligent Flight Battery, and then turn off the remote controller. • Please maintain full control of the aircraft at all time and do not rely on the DJI GO app. Please keep the aircraft within your visual line of sight and visually observe the flight.
  • Page 87 5. Observe Local Laws and Regulations • DO NOT fly inside the No Fly Zones. You can find a detailed list of these areas at http://flysafe.dji.com/  • The DJI No Fly Zone is not a replacement for local government regulations or good judgment.

  • Page 88: Glossary

    13. Ensure the DJI GO app is properly launched to assist your operation of the aircraft. WITHOUT THE FLIGHT DATA RECORDED BY THE DJI GO APP, IN CERTAIN SITUATIONS (INCLUDING THE LOSS OF YOUR AIRCRAFT) DJI MAY NOT BE ABLE TO PROVIDE AFTERSALES SUPPORT TO YOU OR ASSUME LIABILITY.

  • Page 89: Disclaimer And Warning

    SOME JURISDICTIONS MAY PROHIBIT A DISCLAIMER OF WARRANTIES AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM JURISDICTION TO JURISDICTION. DJI is a trademark of SZ DJI TECHNOLOGY CO., LTD. (abbreviated as “DJI”) and its affiliated companies. Names of products, brands, etc., appearing in this document are trademarks or registered trademarks of their respective owner companies.
  • Page 90 EXCEPT AS OTHERWISE AGREED UPON BETWEEN YOU AND DJI, THE AGGREGATE LIABILITY OF THE DJI ENTITIES TO YOU FOR ALL CLAIMS ARISING OUT OF OR RELATING TO THE USE OF OR ANY INABILITY TO USE ANY PORTION OF THE PRODUCT OR OTHERWISE UNDER THESE TERMS, WHETHER IN CONTRACT, TORT, OR OTHERWISE, IS LIMITED TO $100.

  • Page 91: Compliance Information

    Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NCC Warning Message 低功率電波輻射性電機管理辦法 第十二條  經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大 功率或變更原設計之特性及功能。 第十四條  低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應改善至無干 擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或 工業、科學及醫療用電波輻射性電機設備之干擾。 © 2017 DJI All Rights Reserved.

  • Page 92: Kcc Warning Message

    Indirizzo di contatto UE: DJI GmbH, Industriestrasse. 12, 97618, Niederlauer, Germany Déclaration de conformité UE: Par la présente, SZ DJI TECHNOLOGY CO., LTD déclare que cet appareil est conforme aux principales exigences et autres clauses pertinentes de la directive européenne 2014/53/EU.

  • Page 93: Before You Begin

    Disclaimer and Safety Guidelines . Then prepare for your first flight by using the Quick Start Guide . For more information, please refer to the User Manual available on the DJI website. Make sure you fully understand the functionality of each individual part, the flight condition requirements, the key contingency warning functions/systems, and all government regulations before each flight.

  • Page 94: Center Frame

    6. For the GPS in the remote controller to function properly and the Home Point to be accurate, ensure the DJI logo is facing the sky and keep the remote controller away from any metal objects. 7. Linking is required if you wish to replace your remote controller or receiver or add a new remote controller.

  • Page 95: Flight Control System

    Lightbridge 2 Air System To avoid component malfunction, serious injury, and property damage, observe the following rules: 1. ONLY use the DBUS cable that comes with the Matrice 600 Pro, or else the Lightbridge 2 Air System will not function normally.

  • Page 96: Gps-Compass Pro

    3. DO NOT carry ferromagnetic materials with you during calibration such as cellular phones. 4. The DJI GO app will prompt you to resolve the compass issue if the compass is affected by strong interference after calibration is complete. Follow the prompted instructions to resolve the compass issue.

  • Page 97: Dji Go App

    8. The app is designed to assist your operation. Please use your sound discretion and DO NOT rely on the app to control your aircraft. 9. Your use of the app is subject to the DJI GO app Terms of Use and DJI Privacy Policy. Please read them carefully in the app.

  • Page 98: Firmware

    2. Firmware upgrade notifications will inform about new firmware upgrades. You are required to read and understand the information shown. You further understand and agree that the data including but not limited to flight telemetry data and user selection records may be uploaded to and maintained on a DJI- designated server.

  • Page 99: Product Care

    2. Check every part of the aircraft after any crash or violent impact. If you have any problems or questions, please contact a DJI authorized dealer. 3. Regularly check the Battery Level Indicators to see the current battery level and overall battery life. When the battery life reaches 0%, it can no longer be used.

  • Page 100: Flight Condition Requirements

    2. Never stop the motors mid-flight unless in emergency situations when doing so can reduce the risk of damage or injury. 3. Upon landing, power off the aircraft first, then power off the remote controller. © 2017 DJI All Rights Reserved.
  • Page 101 5. DO NOT use this product to defame, abuse, harass, stalk, threaten or otherwise violate the legal rights (such as the right of privacy and publicity) of others. 6. DO NOT trespass onto private property of others. © 2017 DJI All Rights Reserved.

  • Page 102: Flight Modes, Functions And Warnings

    1. P-mode (Positioning): P-mode works best when the GPS signal is strong. There are different states of P-mode, which will be automatically selected by the Matrice 600 Pro depending on GPS signal strength: a. P-GPS: GPS is available, and the aircraft is using GPS for positioning.

  • Page 103: Failsafe And Return-To-Home

    2. When battery warnings are triggered, promptly bring the aircraft back to the Home Point or land to avoid losing power during flight and causing damage to the aircraft, property, animals, and people. © 2017 DJI All Rights Reserved.

  • Page 104: Compliance With Regulations & No Fly Zones

    5. Please be advised that in certain areas, the recording of images and videos from events, performances, exhibitions, or commercial properties by means of a camera may contravene copyright or other legal rights, even if the image or video was shot for personal use. © 2017 DJI All Rights Reserved.

  • Page 105: No Fly Zones

    1. No Fly Zones include but are not limited to major airports around world, borders between two sovereign countries or regions, major cities/regions, etc. 2. A detailed list of No Fly Zones is available on the official DJI website at http://flysafe.dji.com/no-fly and is subject to periodic updates in line with the latest regulatory requirements without prior notice.
  • Page 106 DJI Support http://www.dji.com/support This content is subject to change. Download the latest version from http://www.dji.com/matrice600-pro If you have any questions about this document, please contact DJI by sending an email to DocSupport@dji.com. MATRICE is a trademark of DJI. © Copyright 2017 DJI All Rights Reserved.
  • Page 107 The warranty period for a product starts on the day a product is received, or as may be otherwise specified by DJI. The warranty period and types of after-sales service that apply to your product are as specified in “Part III - Types of After-Sales Service”...
  • Page 108 √ Ensure that the product or part is free of any legal restrictions that prevent its replacement. √ If you are not the owner of a product or part, obtain authorization from the owner for DJI to provide warranty service.
  • Page 109 If you obtain service under this policy, you authorize DJI to store, use, and process your flight log information and your contact information, including name, phone numbers, address, and e- mail address. DJI may use this information to perform service under this policy. We may contact you to inquire about your satisfaction with our service or to notify you about any product recalls or safety issues.
  • Page 110 When receiving service, DJI is responsible for loss or damage to your product only while it is in DJI's possession or in transit, if DJI is responsible for transportation. DJI is NOT responsible for loss or disclosure of any data, including confidential information, proprietary information, or personal information, contained in a product.
