MATRICE 600 PRO
User Manual
V1.0
2016.11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MATRICE 600 PRO and is the answer not in the manual?

Questions and answers

Related Manuals for dji MATRICE 600 PRO

Summary of Contents for dji MATRICE 600 PRO

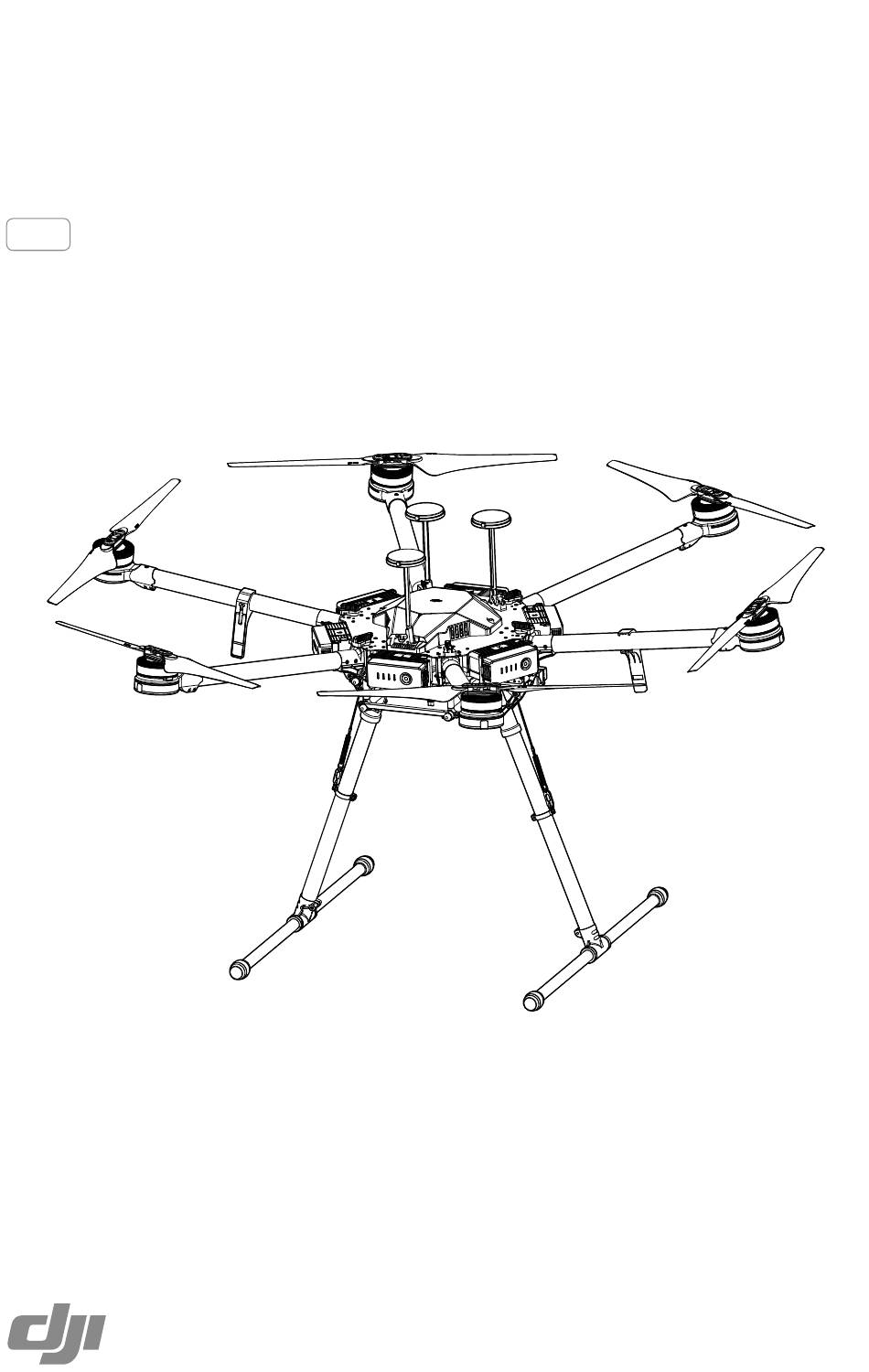

  • Page 1 MATRICE 600 PRO User Manual V1.0 2016.11...

  • Page 2: Using This Manual

    User Manual available on the DJI website (http://www.dji.com). Download DJI Assistant 2 When using your Matrice 600 Pro for the first time, you will need to activate it in the DJI Assistant 2 software.

  • Page 3: Warning

    1. Ensure that all other parts are installed before inserting the Intelligent Flight Batteries. 2. DO NOT remove any glued-in screws. 3. The Matrice 600 Pro should be lifted off the ground when testing the landing gear or recalibrating servo travel.

  • Page 4: Table Of Contents

    Profile Smart RTH Low Battery RTH Failsafe RTH RTH Safety Notices Updating the Home Point A3 Pro Redundancy System Mounting Positions System Status DJI Assistant 2 Installation and Launching Using the DJI Assistant 2 © 2016 DJI All Rights Reserved.
  • Page 5 Intelligent Flight Modes Upgrading the Firmware Retractable Landing Gear Reserved Mounting Position Dimensions A3 Pro Flight Control System Overview Lightbridge 2 Air System Overview DJI Gimbal Connection Illustrator DJI Zenmuse X3 Gimbal and Camera © 2016 DJI All Rights Reserved.

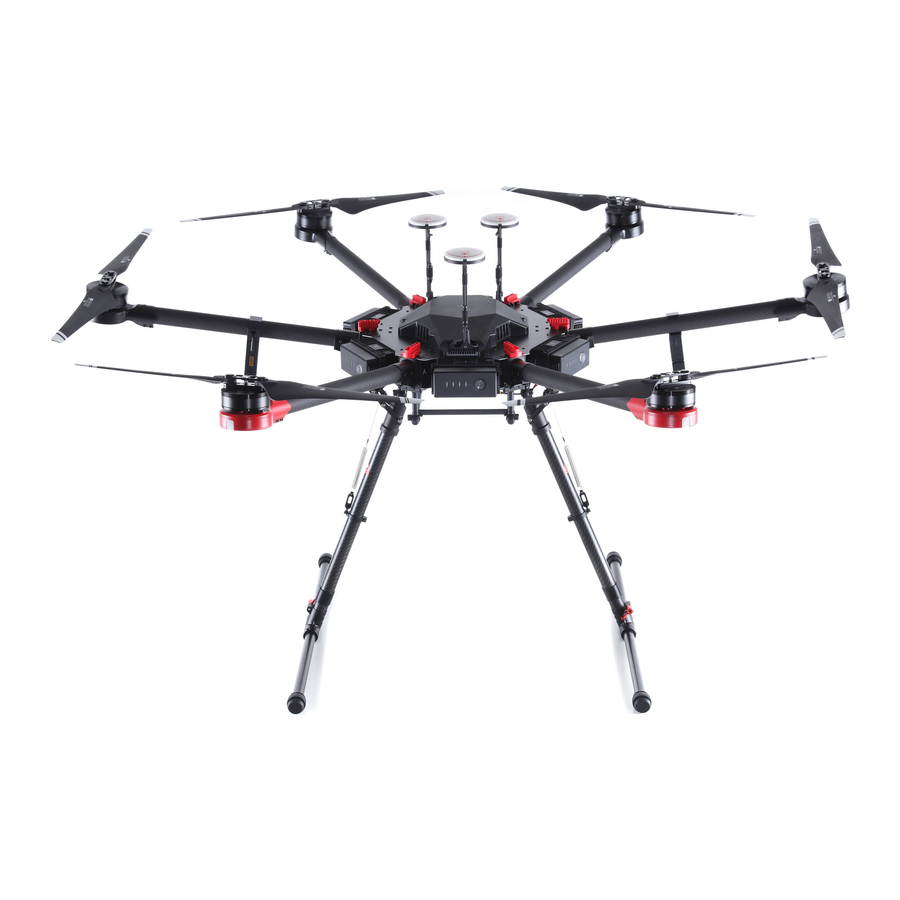

  • Page 6: Product Profile

    Its mechanical design, with quick-release landing gear and mounted folding arms, make it easy to transport, store, and prepare for flight. With a maximum takeoff weight of 15.5 kg, the Matrice 600 Pro can meet specific needs across a range of industries.

  • Page 7: Installation

    1. Gently lift the frame arm. Twist the red knob to lock each arm in place. To store, untwist the knob and lower the frame arm. 2. Unfold the propellers. 3. Unfold the GPS-Compass Pro and ensure that all the arrows on the GPS-Compass Pro point toward the front of the aircraft. © 2016 DJI All Rights Reserved.

  • Page 8: Mounting The Gimbal (Optional)

    MATRICE 600 PRO User Manual Mounting the Gimbal (Optional) The built-in flight control system of the Matrice 600 Pro is compatible with the following DJI gimbals and cameras. Ronin-MX Zenmuse Z30 Zenmuse X3 Zenmuse X5 Series Zenmuse XT Zenmuse Z15 Series HD Gimbal: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4 Different accessories are used to mount different gimbals or cameras.

  • Page 9: Intelligent Flight Battery Profile

    Intelligent Flight Battery Profile The Matrice 600 Pro has six battery compartments and six Intelligent Flight Batteries to extend the flight time. The standard Intelligent Flight Battery has a capacity of 4500mAh, voltage of 22.2V, and built-in smart charge-discharge function. It can only be charged with an appropriate DJI approved charger.

  • Page 10: Using The Batteries

    Using the Batteries Installing the Batteries There are six battery compartments on the Matrice 600 Pro. You must load all six battery compartments with batteries of the same model before each flight. Make sure all the batteries are fully charged before each flight.
  • Page 11 MATRICE 600 PRO User Manual If the power supply is not OK when powering on the batteries, the DJI GO app will either prompt you to adjust the battery positions or tell you there is a large voltage difference. To adjust the battery positions: 1.
  • Page 12 40%~50% 30%~40% 20%~30% below 20% When the battery life reaches 0%, it can no longer be used. For more information about the battery, launch the DJI GO app and go to the Battery tab. © 2016 DJI All Rights Reserved.
  • Page 13 MATRICE 600 PRO User Manual Charging the Intelligent Flight Battery The Matrice 600 Pro is shipped with a DJI Hex Charger. It can charge up to six Intelligent Flight Batteries and two remote controllers simultaneously. 1. Connect the Hex Charger to a power outlet (100-240V, 50/60Hz) with the power cable.
  • Page 14 Leave it on until there is less than 5% battery level, or until it can no longer be turned on. Check the battery level in the DJI GO app. Fast: Fly the Matrice 600 Pro outdoors until there is less than 5% battery level, or until the battery can no longer be turned on.

  • Page 15: Remote Controller Profile

    It is powered by a 2S rechargeable battery. Stick Mode: Control can be set to Mode 1, Mode 2 (by default), or a custom mode in the DJI GO app.
  • Page 16 [12] Shutter Button Connect to mobile device to access all of Press to take a photo. If in burst mode, the the DJI GO app controls and features. [20] GPS Module Used to pinpoint the location of the remote [20] controller.
