- Page 1 Slingshot® Field Hub 2.0 Installation Manual 016-0171-595 Rev. C 06/16 E28059 Copyright 2016...
- Page 2 Raven Industries shall not be held responsible for any modifications or repairs made outside our...
-
Page 3: Table Of Contents
Table of Contents Table of Contents ....1 FCC Statement: Field Hub 2.0 Kit Contents: ... 1 This device complies with Part 15 of FCC rules. Recommended: ...... 1 Operation of this device is subject to the following two conditions: Overview ....... -
Page 4: Overview

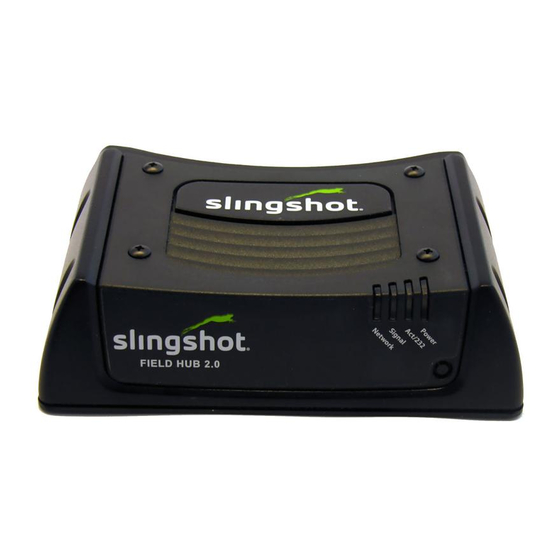

The Field Hub provides Internet connectivity and access to service provided by the Slingshot system such as Slingshot Link, Slingshot RTK, Remote Support, and File Transfer. Devices such as the Raven line of field computers may connect to the Internet via the Field Hub. These services are provided via the Slingshot website: www.ravenslingshot.com... - Page 5 To install the Field Hub: 1. Mount the DGPS receiver as instructed by the receiver manufacturer. 2. Mount the Field Hub inside of the vehicle cab using screws or similar hardware. Refer to the Best Installation Practices on page 2 for mounting location requirements.
-
Page 6: Installation Checklist
11.Connect the supplied Ethernet cable to the ‘Ethernet’ port on the back of the Field Hub and route to a web compatible device such as a Raven field computer. Note: If a Viper 4 is being used, a different Ethernet cable (P/N 115-0172- 090, 2 meters or 115-0172-210, 4 meters) other than the cable provided in the kit is required. -
Page 7: Operation
Operation LED Status Indicators Status Indicator State Status Solid green The Field Hub is powered on. Note: The Field Hub goes through a power down sequence when the ignition is switched off. It is normal for the Power LED to remain on for approximately 60 seconds after the ignition switch is turned off. -
Page 8: Slingshot Rtk
The LED’s next to the Ethernet plug on the back of the Field Hub 2.0 will display as follows: • Link - The Link LED is illuminated when a link is established with an Ethernet device (i.e. Raven field computer). • Activity - The Activity LED flashes when data is being transmitted/received by the Ethernet device. -
Page 9: Installing The Sim Card
• Operating Temperatures: -22° to +158° [-30° to +70° C] • Storage Temperatures: -40° to +185° [-40° to +85° C] • Humidity: 90% relative humidity at +140° F [60° C] • Shock: MIL-STD-810G • Vibration: MIL-STD-810G If conditions are expected to exceed these specifications, remove the Field Hub from the vehicle and store in a dry, temperature controlled environment. -
Page 10: Troubleshooting
5. Positioning the new SIM card with the writing facing up and the notch on the right side, install the new SIM card in the Field Hub as shown below. Note: If the Field Hub does not automatically connect to the system, verify cellular connectivity. - Page 11 No signal Verify the cellular antennas are connected to the Cellular antennas indicator status ‘Cellular’ and ‘Diversity/AUX’ ports on the back of not connected or no data the Field Hub. transferring Antenna cable(s) Check antenna cables for crimping, fraying or damaged or broken breakage.
-
Page 12: System Diagrams
System Diagrams Additional diagrams are available on the Raven website www.ravenhelp.com FIGURE 1. Field Hub 2.0 Connections Example... - Page 13 How Can I Get Service? Bring the defective part and proof of purchase to your Raven dealer. If the dealer approves with the warranty claim, the dealer will process the claim and send it to Raven Industries for final approval.
- Page 14 How Can I Get Service? Bring the defective part and proof of purchase to your Raven dealer. If the dealer approves with the warranty claim, the dealer will process the claim and send it to Raven Industries for final approval. The freight cost to Raven Industries will be the customer’s responsibility.
