UM2507
User manual
Getting started with the X-NUCLEO-OUT02A1 industrial digital output expansion
board for STM32 Nucleo
Introduction
The
X-NUCLEO-OUT02A1
industrial digital output expansion board for
STM32 Nucleo
is based on the
ISO8200AQ
galvanic
isolated octal high-side smart power solid state-relay.
It provides an affordable and easy-to-use solution for the development of 8-channel digital output modules, letting you easily
evaluate the ISO8200AQ communication and industrial load driving features.
The X-NUCLEO-OUT02A1 can be connected to a NUCLEO-F401RE,
NUCLEO-F103RB
or
NUCLEO-F302R8
development
board via Arduino™ UNO R3 connectors.
You can also evaluate the 16-channel digital output modules by connecting two X-NUCLEO-OUT02A1 expansion boards and
activating the daisy chaining feature.
The X-NUCLEO-OUT02A1 interfaces with the STM32 controller via SPI and GPIO pins and is compatible with the Arduino™
UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors.
Industrial PLC functionality with 8 inputs and 16 outputs can be added with the
X-NUCLEO-PLC01A1
expansion board.

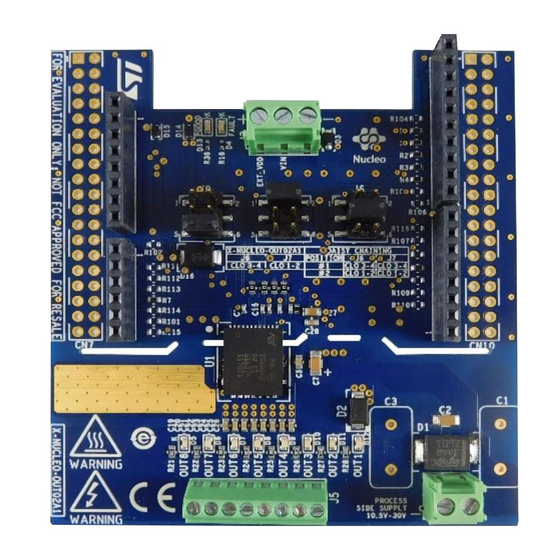

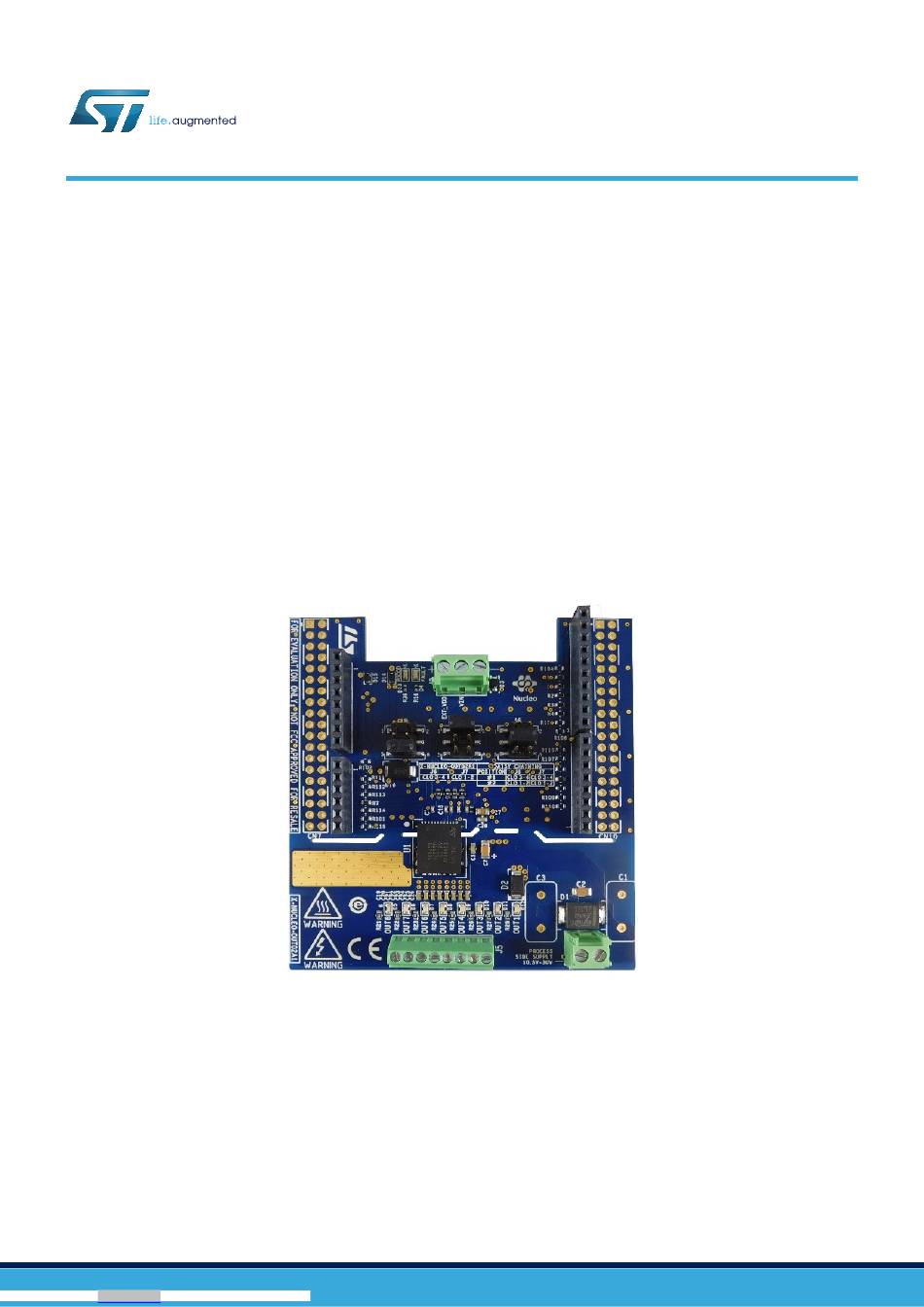

Figure 1.
X-NUCLEO-OUT02A1 expansion board
UM2507 - Rev 1 - November 2018
www.st.com
For further information contact your local STMicroelectronics sales office.
Arrow.com.
Downloaded from

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-NUCLEO-OUT02A1 and is the answer not in the manual?

Questions and answers

Related Manuals for ST X-NUCLEO-OUT02A1

Summary of Contents for ST X-NUCLEO-OUT02A1

  • Page 1: Figure 1. X-Nucleo-Out02A1 Expansion Board

    You can also evaluate the 16-channel digital output modules by connecting two X-NUCLEO-OUT02A1 expansion boards and activating the daisy chaining feature. The X-NUCLEO-OUT02A1 interfaces with the STM32 controller via SPI and GPIO pins and is compatible with the Arduino™ UNO R3 (default configuration) and ST morpho (optional, not mounted) connectors.

  • Page 2: Getting Started

    MCU GPIO resources on the PLC logic stage. Note: The X-NUCLEO-OUT02A1 offers a digital output solution: each output stage is managed at microcontroller level. As the board has no input stage, no sensors can be connected to it. Hardware requirements...

  • Page 3: System Requirements

    UM2507 System requirements Figure 2. X-NUCLEO-OUT02A1 expansion board connected to an STM32 Nucleo development board The X-NUCLEO-OUT02A1 has been designed to be used with • NUCLEO-F103RB • NUCLEO-F302R8 • NUCLEO-F401RE System requirements To use the STM32 Nucleo boards with the...

  • Page 4: Hardware Description And Configuration

    JP5 between pins 2 and 3 on the STM32 Nucleo development board; • connect a 7 to 12 V supply at screw connector J2 on the X-NUCLEO-OUT02A1 expansion board. Power section The power section involves the power supply voltage, load connection and electromagnetic compatibility (EMC) protections.

  • Page 5: Figure 4. X-Nucleo-Out02A1 Expansion Board: Power Section Components

    UM2507 Power section Figure 4. X-NUCLEO-OUT02A1 expansion board: power section components For EMC: • a Transil™ diode SMC30J30CA is placed on V track to protect the ISO8200AQ against surge discharge; • for common mode surge testing, two single-layer capacitors (C1 and C3, not mounted) must be soldered;...

  • Page 6: Bill Of Materials

    UM2507 Bill of materials Bill of materials Table 1. X-NUCLEO-OUT02A1 bill of materials Item Q.ty Ref. Part/Value Description Manufacturer Order code Galvanic isolated octal high-side ISO8200AQ TFQFPN32 ISO8200AQ smart power solid state-relay C19, C20, C21, C22, 22 nF 50 V ±10% 0603 X7R...
  • Page 7 UM2507 Bill of materials Item Q.ty Ref. Part/Value Description Manufacturer Order code 6 ways, 1 row TH 2.54 mm Capacitor SAMTEC SSQ-106-04-F-S 2 ways, 1 row (ISO8200AQ Jumper 790-1149 HV supply) TH 3.5 mm 3 ways, 1 row (STM32, ISO8200AQ LV supply) TH Jumper 790-1143 3.5 mm...

  • Page 8: Schematic Diagrams

    ISO_CLK R103 100R N.M. EXT_VDD ISO8200AQ direct supply voltage: - set to max. 3..3 V when the X-NUCLEO-OUT02A1 is used with an STM32 Nucleo board - can be set to max. 5.5 V ALTERNATE USE ISO_SDIO1 R104 100R N.M. when the X-NUCLEO-OUT02A1 is used standalone...

  • Page 9: A References

    UM2507 References References Freely available on www.st.com: • ISO8200AQ datasheet • X-CUBE-OUT02A1 user manual • X-NUCLEO-PLC01A1 user manual • ST-PLC data brief UM2507 - Rev 1 page 9/14 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from...

  • Page 10: Revision History

    UM2507 Revision history Table 2. Document revision history Date Revision Changes 08-Nov-2018 Initial release. UM2507 - Rev 1 page 10/14 Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Arrow.com. Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from Downloaded from...

  • Page 11: Table Of Contents

    UM2507 Contents Contents Getting started ..............2 Overview .
  • Page 12 X-NUCLEO-OUT02A1 bill of materials ........
  • Page 13 Figure 4. X-NUCLEO-OUT02A1 expansion board: power section components ....... 5 Figure 5.
  • Page 14 ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’...
