UM2509
User manual

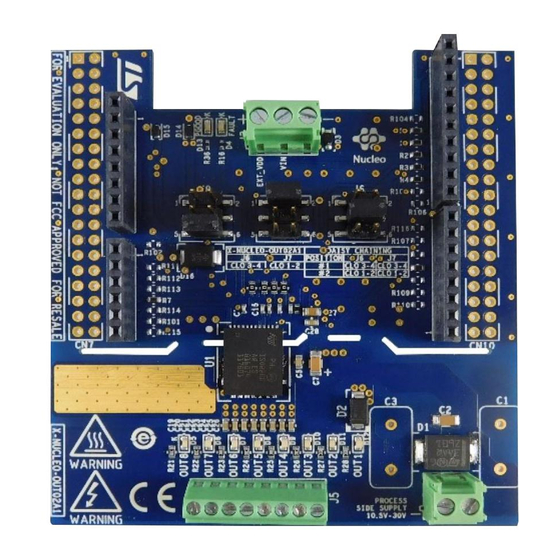

Getting started with the GUI for the X-NUCLEO-OUT02A1 expansion board
Introduction
The
STSW-IFAPGUI
is the common graphic user interface designed to facilitate the control of the IPS and IO-Link evaluation
boards based on
STM32
Nucleo.
The GUI automatically detects the firmware version running on the STM32 Nucleo board connected to your laptop/PC via USB
cable.
For the X-NUCLEO-OUT02A1, the GUI works in combination with the
X-CUBE-OUT02
firmware, running on the
NUCLEO-
F401RE
board and controlling the features of the
ISO8200AQ
such as the frequency and duty cycle of each output channel and
the internal status of the IC.
The GUI is available free of charge on www.st.com.

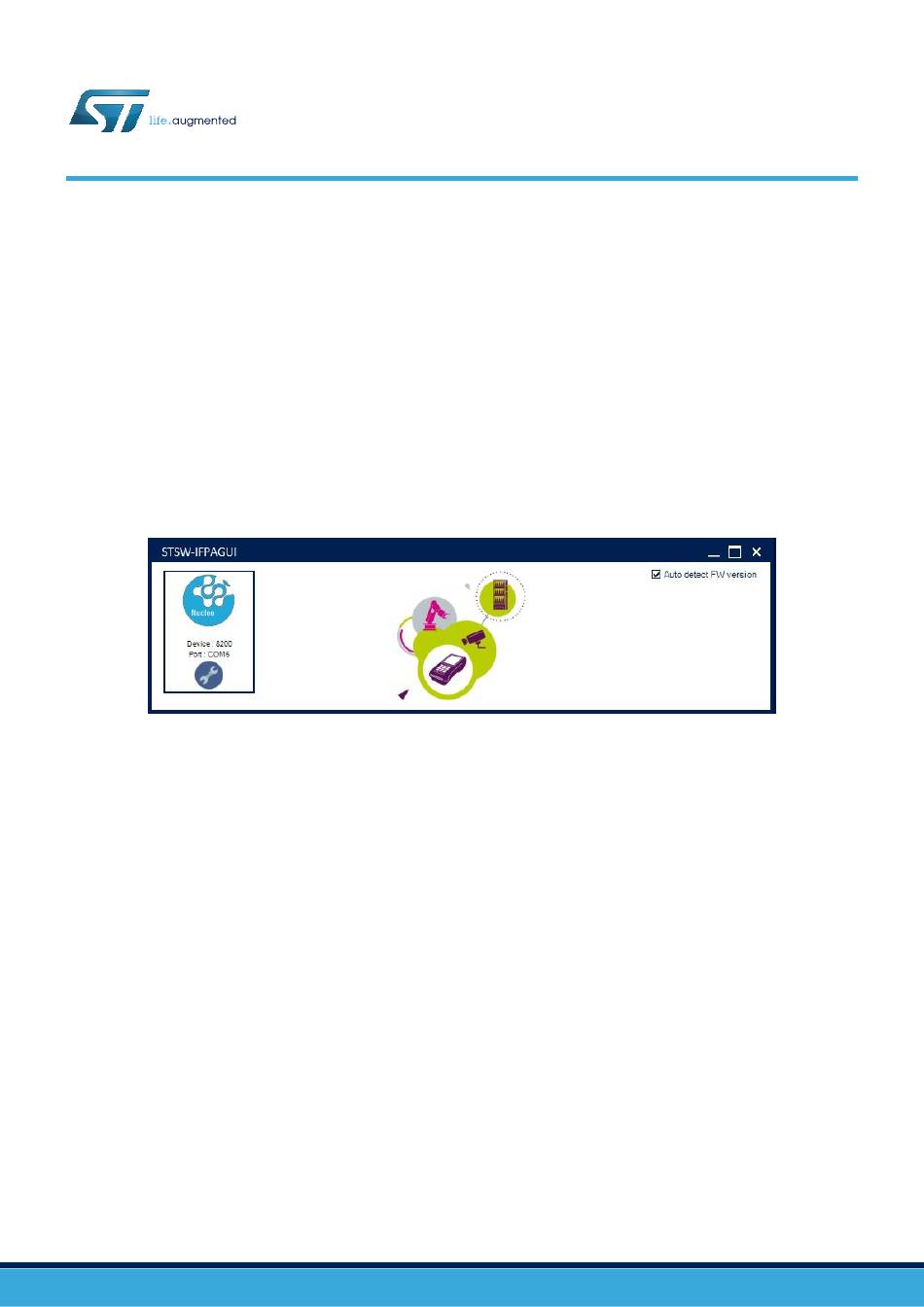

Figure 1.
STSW-IFAPGUI graphical user interface
UM2509 - Rev 1 - November 2018
www.st.com
For further information contact your local STMicroelectronics sales office.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-NUCLEO-OUT02A1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ST X-NUCLEO-OUT02A1

Summary of Contents for ST X-NUCLEO-OUT02A1

  • Page 1 UM2509 User manual Getting started with the GUI for the X-NUCLEO-OUT02A1 expansion board Introduction STSW-IFAPGUI is the common graphic user interface designed to facilitate the control of the IPS and IO-Link evaluation boards based on STM32 Nucleo. The GUI automatically detects the firmware version running on the STM32 Nucleo board connected to your laptop/PC via USB cable.

  • Page 2: Stsw-Ifapgui Overview

    -based application able to control the X-CUBE-OUT02 and automatically identify the firmware version. The GUI can control the firmware for two X-NUCLEO-OUT02A1 boards stacked together by activating daisy chaining via proper jumper configuration. The GUI features: • single or dual chip (daisy chaining) configuration •...

  • Page 3: Software Installation

    UM2509 Software installation Software installation ® STSW-IFAPGUI software is designed to run on Microsoft Windows. To install the GUI: Step 1. Run Setup_ STSW-IFAPGUI.exe included in the package Step 2. Follow the installation instructions Figure 3. STSW-IFAPGUI installation guide UM2509 - Rev 1 page 3/12...

  • Page 4: Running The Graphical User Interface

    Connect the stacked boards to your PC/laptop USB port through a mini-USB cable. The STM32 is supplied by 3.3 V from the USB supply and the flashed firmware starts running. By default, in the X-NUCLEO-OUT02A1, J8 is closed between pins 5-6 and the ISO8200AQ digital side is supplied by the same 3v3 of the micro.

  • Page 5: Multiple X-Nucleo-Out02A1 Expansion Board Setup

    Multiple X-NUCLEO-OUT02A1 expansion board setup When two X-NUCLEO-OUT02A1 expansion boards are stacked (daisy chaining), follow the procedure below. Step 1. Set the proper configuration for J6, J7 and OUT_EN signal on the two X-NUCLEO-OUT02A1. Step 2. Connect the STM32 Nucleo board flashed with...
  • Page 6 UM2509 Multiple X-NUCLEO-OUT02A1 expansion board setup Figure 7. STSW-IFAPGUI control panel, dual chip Step 4. When the evaluation session finishes, stop the SPI communication, close the GUI, remove the 24 V from J1 and disconnect the USB cable from the STM32 Nucleo board.

  • Page 7: Stsw-Ifapgui Control Panel For X-Nucleo-Out02A1

    UM2509 STSW-IFAPGUI control panel for X-NUCLEO-OUT02A1 STSW-IFAPGUI control panel for X-NUCLEO-OUT02A1 This control panel (see Figure 6) shows three main function areas: • Output channel activation (OUT_EN, switching frequency, duty cycle) • SPI activation (start/stop) • Fault monitoring (power good, common fault, per-channel thermal fault)

  • Page 8: Revision History

    UM2509 Revision history Table 1. Document revision history Date Version Changes 15-Nov-2018 Initial release. UM2509 - Rev 1 page 8/12...

  • Page 9: Table Of Contents

    Running the graphical user interface..........4 Single X-NUCLEO-OUT02A1 expansion board setup ....... . 4 Multiple X-NUCLEO-OUT02A1 expansion board setup .
  • Page 10 UM2509 List of tables List of tables Table 1. Document revision history ............. . 8 UM2509 - Rev 1 page 10/12...
  • Page 11 UM2509 List of figures List of figures Figure 1. STSW-IFAPGUI graphical user interface ..........1 Figure 2.
  • Page 12 ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’...
